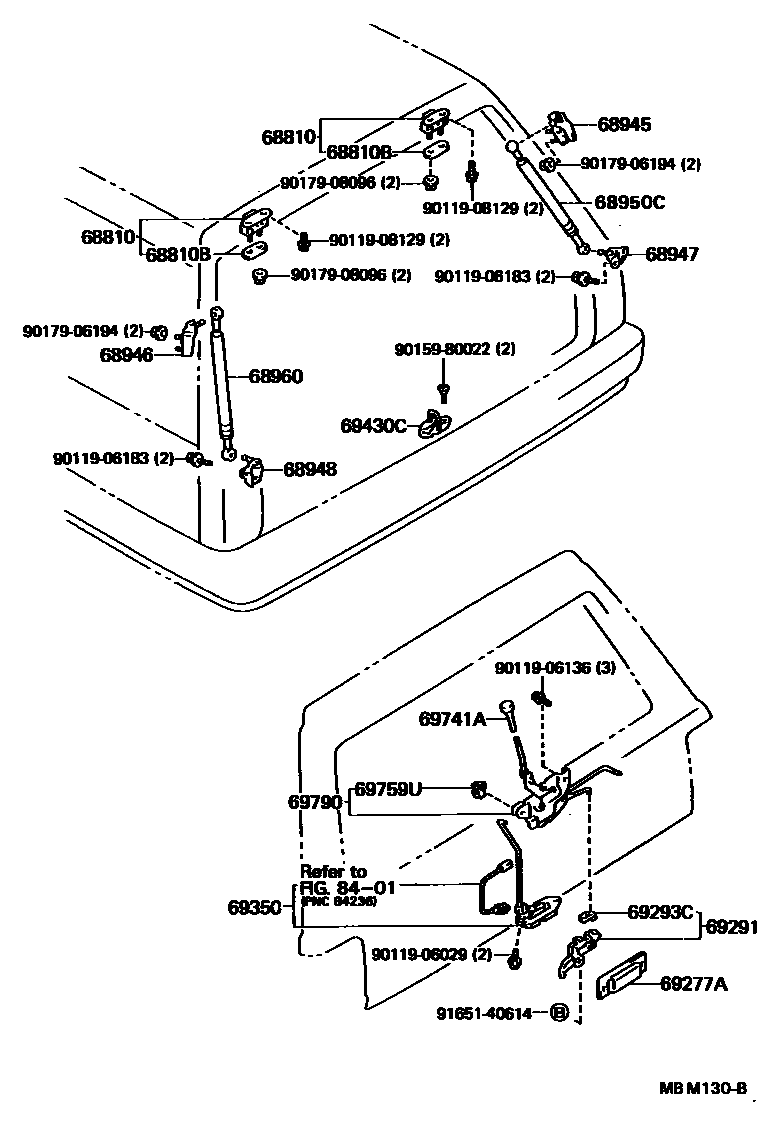

BACK DOOR LOCK & HANDLE
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
sub68945-31010
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
sub68946-31010
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
sub68947-31010
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
sub68948-31010
68950CSTAY ASSY, BACK DOOR, RH
W(REAR WINDOW WIPER)
68960STAY ASSY, BACK DOOR, LH
W(REAR WINDOW WIPER)
69277ABEZEL, BACK DOOR INSIDE HANDLE
69291HANDLE ASSY, BACK DOOR INSIDE
MAROON,TRIM3#
SABLE,TRIM4#
BLUE,TRIM8#
69293CSNAP, BACK DOOR HANDLE
69430CSTRIKER ASSY, BACK DOOR LOCK
69741AKNOB, BACK DOOR LOCK CONTROL
69759USNAP, BACK DOOR LOCK CONTROL LINK
69790CONTROL ASSY, BACK DOOR LOCK
8401
9011906029
main90119-06029
9011906136
main90119-06136
9011906183
main90119-06183
9011908129
main90119-08129
9015980022
main90159-80022
9017906194
main90179-06194
9017908096
main90179-08096
9165140614
main91651-40614
25 parts on this diagram · 2 diagrams in section
