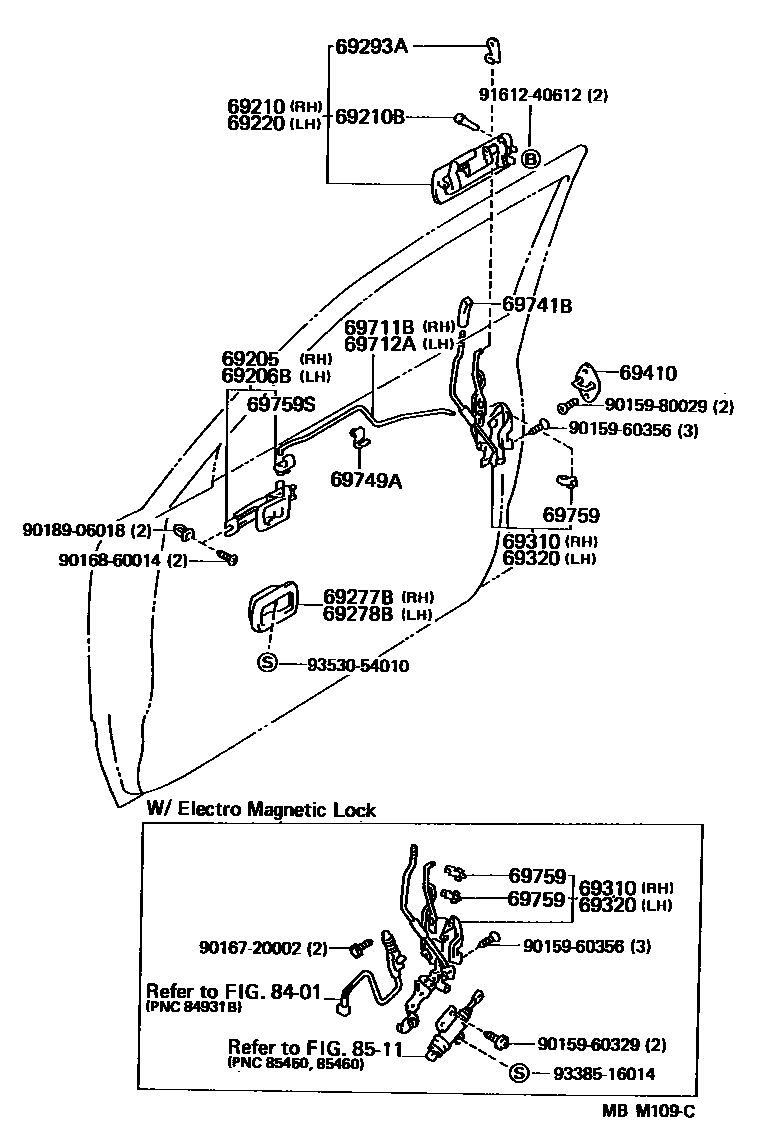

FRONT DOOR LOCK & HANDLE

0001 1 0002 1 0003 1 0004 1

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30040iLS130,MS132,135,YS132..SED,WG198709-198812

sub69205-30041

main69205-30041iGS131,LS130,MS132,135,YS132..SED,WG198812-199110

main69205-30050iMS133,135..GCC198709-198809

sub69205-30051

main69205-30051iMS133,135..HT198809-199110

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30040iLS130,MS132,135,YS132..SED,WG198709-198812

sub69206-30041

main69206-30041iGS131,LS130,MS132,135,YS132..SED,WG198812-199110

main69206-30050iMS133,135..GCC198709-198809

sub69206-30051

main69206-30051iMS133,135..HT198809-199110

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30150iLS130,MS132,135,YS132..SED,WG198709-198801

sub69210-30160

main69210-30160iMS133,135..GCC198709-199110

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iGS131,LS130,MS13#,YS132198709-199110

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-30130iLS130,MS132,135,YS132..SED,WG198709-198801

sub69220-30150

main69220-30150iMS133,135..GCC198709-199110

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-30060-02iGS131,LS130,MS13#,YS132..(SED,WG)..(4F,4FC,4HC,5F)198709-199110

MAROON,TRIM3#

main69277-30060-04iMS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD198709-199110

BLUE,TRIM8#

main69277-30060-06iGS131,MS133..SAL;MS132,135..(SED,WG)..(ROY,SAL)198709-199110

SABLE,TRIM4#

main69277-30070-02iMS133,135..HT198709-199110

MAROON,TRIM3#

main69277-30070-04iMS133,135..HT198709-199110

BLUE,TRIM8#

main69277-30070-06iMS133,135..HT198709-199110

SABLE,TRIM4#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69277-30060-02iGS131,LS130,MS13#,YS132..(SED,WG)..(4F,4FC,4HC,5F)198709-199110

MAROON,TRIM3#

main69277-30060-04iMS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD198709-199110

BLUE,TRIM8#

main69277-30060-06iGS131,MS133..SAL;MS132,135..(SED,WG)..(ROY,SAL)198709-199110

SABLE,TRIM4#

main69277-30070-02iMS133,135..HT198709-199110

MAROON,TRIM3#

main69277-30070-04iMS133,135..HT198709-199110

BLUE,TRIM8#

main69277-30070-06iMS133,135..HT198709-199110

SABLE,TRIM4#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iGS131,LS130,MS13#,YS132198709-199110

RH

main69293-12060iGS131,LS130,MS13#,YS132198709-199110

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-30631iMS132..STD198908-199110

W(POWER WINDOW)

main69030-30671iMS133..STD199002-199110

W(POWER WINDOW)

main69030-30671iLS130..4H199008-199110

HONG KONG SPEC

main69030-30681iGS131,MS133,135..RHD..(ROY,SAL)198908-199110

main69310-30660iMS132..DLX..GCC198709-199110

SAUDI TAXI SPEC

sub69310-30690

main69310-30690iMS132,135..LHD..(SED,WG)..(4FC,5F)198709-198908

W(POWER WINDOW)

main69310-30720iMS133,135..GCC198709-198908

main69310-30721iMS133,135..HT198908-199110

main69310-30730iLS130,MS132,133..RHD..(DLX,STD)198709-199110

sub69310-30740

main69310-30740iMS132..RHD..(DLX,STD)198709-198908

W(POWER WINDOW)

main69310-30750iGS131,MS132,135..RHD..(ROY,SAL)198709-198908

69320LOCK ASSY, FRONT DOOR, LH

main69040-30601iMS132..STD198908-199110

W(POWER WINDOW)

main69040-30611iGS131,MS13#..LHD..(SED,WG)..(ROY,SAL)198908-199110

main69040-30641iMS133..STD198908-199110

W(POWER WINDOW)

main69040-30641iLS130..4H199008-199110

HONG KONG SPEC

main69320-30640iMS132..DLX..GCC198709-199110

SAUDI TAXI SPEC

sub69320-30660

main69320-30660iMS132..4F198709-198908

W(POWER WINDOW)

sub69320-30670

main69320-30670iMS132,135..LHD..(SED,WG)..(ROY,SAL)198709-198908

main69320-30690iMS133,135..GCC198709-198908

main69320-30691iMS133,135..HT198908-199110

main69320-30700iLS130,MS132,133..RHD..(DLX,STD)198709-199110

sub69320-30710

main69320-30710iMS132..RHD..(DLX,STD)198709-198908

W(POWER WINDOW)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iGS131,LS130,MS13#,YS132198709-199110

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-30100iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main69711-30110iMS133,135..HT198709-199110

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-30110iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main69712-30120iMS133,135..HT198709-199110

69741BKNOB, FRONT DOOR LOCK CONTROL

main69740-30030-02iMS133,135..HT198709-199110

MAROON,TRIM3#

main69740-30030-04iMS133,135..HT198709-199110

BLUE,TRIM8#

main69740-30030-06iMS133,135..HT198709-199110

SABLE,TRIM4#

main69741-30030-16iGS131,MS133..SAL;MS132,135..(SED,WG)..(ROY,SAL)198709-199110

SABLE,TRIM4#

sub69741-30030

main69741-30030-22iGS131,LS130,MS13#,YS132..(SED,WG)..(4F,4FC,4HC,5F)198709-199110

MAROON,TRIM3#

sub69741-30030

main69741-30030-24iMS132,135..SED,WG;GS131,LS130,MS133,YS132..SAL,STD198709-199110

DARK BLUE,TRIM8#

sub69741-30030

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-30020iGS131,LS130,MS13#,YS132198709-199110

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050iGS131,MS13#198709-198908

SAUDI TAXI SPEC,LH

main69759-24050iLS130,MS132,YS132..(DLX,STD)..GEN198709-198908

LH

main69759-24050iLS130,MS132,133,YS132..STD198908-199110

GREEN

main69759-24050iLS130,MS132,133,YS132..STD198908-199110

SAUDI TAXI SPEC,GREEN

main69759-24050iLS130..4H199008-199110

HONG KONG SPEC,GREEN

main69759-24060iMS132..DLX198908-199110

GRAY

main69759-24060iGS131,MS13#198908-199110

SAUDI TAXI SPEC,GRAY

main69759-24060iGS131,MS13#198709-198908

RH

main69759-24060iGS131,MS13#198709-198908

SAUDI TAXI SPEC,RH

main69759-24060iLS130..4H199008-199110

HONG KONG SPEC,GRAY

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-24010iGS131,LS130,MS13#,YS132198709-199110

LH

main69759-24020iGS131,LS130,MS13#,YS132198709-199110

RH

8401

8511

9015960329

main90159-60329

9015960356

main90159-60356

9015980029

main90159-80029

9016720002

main90167-20002

9016860014

main90168-60014

9018906018

main90189-06018

9161240612

main91612-40612

9338516014

main93385-16014

9353054010

main93530-54010

28 parts on this diagram · 4 diagrams in section
