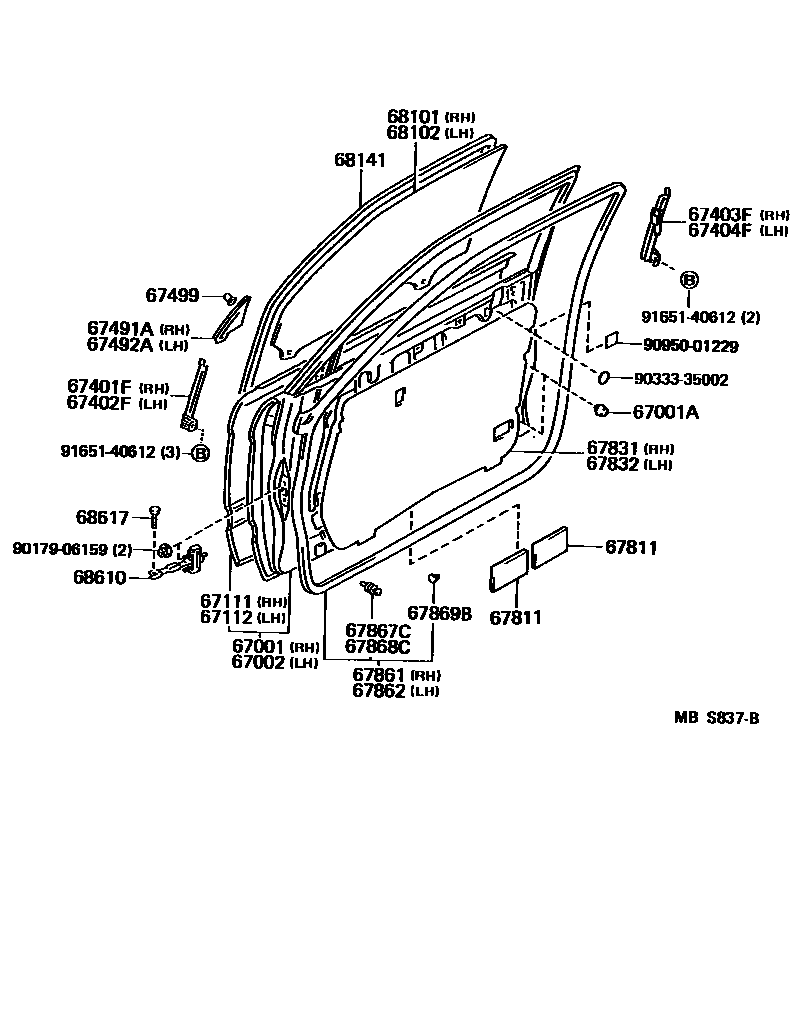

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-30530iMS13#..(SED,WG)..GCC198709-199002

sub67001-30531

main67001-30531iMS13#..(SED,WG)..GCC199002-199110

main67001-30540iLS130,YS132198709-199002

sub67001-30541

main67001-30541iLS130,YS132199002-199110

main67001-30600iLS130,YS132198709-199002

W(SIDE PROTECTION MOULDING)

sub67001-30601

main67001-30601iGS131,MS13#..GEN199002-199110

W(SIDE PROTECTION MOULDING)

main67001-30601iGS131,MS132,135..ROY..GEN198709-199002

main67001-30650iMS133,135..HT198709-199110

67001ACUSHION, FRONT DOOR PANEL

main90541-09038iGS131,LS130,MS13#,YS132..SED,WG198804-199110

main90541-09046iMS133,135..GCC198709-198908

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-30610iMS132..GCC198709-199002

sub67002-30611

main67002-30611iMS13#..(SED,WG)..GCC199002-199110

main67002-30620iLS130,YS132198709-199002

sub67002-30621

main67002-30621iLS130,YS132199002-199110

main67002-30680iMS132..(DLX,SAL,STD)..GEN198709-199002

W(SIDE PROTECTION MOULDING)

sub67002-30681

main67002-30681iGS131,MS13#..GEN199002-199110

W(SIDE PROTECTION MOULDING)

main67002-30681iGS131,MS132,135..ROY..GEN198709-199002

main67002-30740iMS133,135..HT198709-199110

67111PANEL, FRONT DOOR, OUTER RH

main67111-30300iLS130,YS132198709-199110

sub67111-30390

main67111-30320iLS130,YS132198709-199110

W(SIDE PROTECTION MOULDING)

sub67111-30410

main67111-30906iMS133,135..HT198709-199110

67112PANEL, FRONT DOOR, OUTER LH

main67112-30360iLS130,YS132198709-199110

sub67112-30450

main67112-30380iGS131,MS13#..SED,WG198709-199110

W(SIDE PROTECTION MOULDING)

sub67112-30470

main67112-30906iMS133,135..HT198709-199110

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-30110iGS131,LS130,MS13#,YS132..SED,WG198709-199002

main67401-30111iGS131,LS130,MS13#,YS132..SED,WG199002-199110

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-30110iGS131,LS130,MS13#,YS132..SED,WG198709-199002

main67402-30111iGS131,LS130,MS13#,YS132..SED,WG199002-199110

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-30090iMS13#..(SED,WG)..GCC198709-199110

main67403-30110iGS131,LS130,MS13#,YS132..GEN198709-199110

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-30090iMS13#..(SED,WG)..GCC198709-199110

main67404-30110iGS131,LS130,MS13#,YS132..GEN198709-199110

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-30080iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main67491-30090iMS133,135..HT198709-199110

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-30080iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main67492-30090iMS133,135..HT198709-199110

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30020iGS131,LS130,MS13#,YS132..SED,WG198710-199110

main67499-32010iLS130,MS132,135,YS132..SED,WG198709-198710

67811PAD, FRONT DOOR SILENCER

main67811-30050iMS133,135..HT198709-199110

main67811-30060iGS131,LS130,MS13#,YS132..GEN198908-199110

sub67811-30050

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-30270iLS130,MS132,133,YS132..(DLX,STD)..GEN198709-199110

sub67831-30280

main67831-30280iGS131,MS13#..(ROY,SAL)..GEN198709-199110

main67831-30280iMS132,133..(DLX,STD)..GEN198709-199110

W(POWER WINDOW)

main67831-30300iMS133,135..HT199003-199110

main67831-30310iMS132..GCC198709-199003

sub67831-30280

main67831-30320iMS133,135..HT198709-199003

sub67831-30300

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-30140iLS130,MS132,133,YS132..STD198709-199110

sub67832-30150

main67832-30150iMS132,133..STD198709-199110

W(POWER WINDOW)

main67832-30150iGS131,MS13#..GEN198908-199110

main67832-30160iMS133,135..HT199003-199110

main67832-30170iMS13#..(SED,WG)..GCC198709-199003

sub67832-30150

main67832-30180iMS133,135..HT198709-199003

sub67832-30160

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-30170iLS130,MS132,135,YS132..SED,WG198709-198806

sub67861-30171

main67861-30171iGS131,LS130,MS13#,YS132..SED,WG198806-199001

sub67861-30172

main67861-30172iGS131,LS130,MS13#,YS132..SED,WG199001-199110

main67861-30180iMS133,135..GCC198709-198806

sub67861-30181

main67861-30181iMS133,135..HT198806-199001

sub67861-30182

main67861-30182iMS133,135..HT199001-199110

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-30170iLS130,MS132,135,YS132..SED,WG198709-198806

sub67862-30171

main67862-30171iGS131,LS130,MS13#,YS132..SED,WG198806-199001

sub67862-30172

main67862-30172iGS131,LS130,MS13#,YS132..SED,WG199001-199110

main67862-30180iMS133,135..GCC198709-198806

sub67862-30181

main67862-30181iMS133,135..GCC198806-199001

sub67862-30182

main67862-30182iMS133,135..HT199001-199110

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-22020iMS132..WG199006-199110

sub67867-12150

main67868-30050iGS131,LS130,MS13#,YS132198709-199110

sub67867-12150

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-22020iGS131,LS130,MS13#,YS132..SED,WG199006-199110

TYPE A

sub67867-12150

main67868-22020iMS133,135..HT198908-199007

sub67867-12150

main67868-30050iLS130,MS132..SED..MTM..GEN198908-198910

IRAQ TAXI SPEC,TYPE B

sub67867-12150

main67868-30050iGS131,LS130,MS13#,YS132198709-199110

sub67867-12150

main67868-30050iMS132..WG198908-199110

TYPE B

sub67867-12150

main67868-30050iMS132..WG198908-198910

SAUDI TAXI SPEC,TYPE B

sub67867-12150

main67868-30050iMS132..WG198908-198910

TAXI FOR GNRL COUNTRIES,TYPE B

sub67867-12150

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-30020iMS133,135..HT198709-199110

main67869-30030iGS131,LS130,MS13#,YS132..SED,WG198709-199110

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-30440iLS130,YS132198709-199110

*TEM,T=4.0

sub68111-30750

main68111-30450iLS130,MS132,135,YS132..SED,WG198709-199110

*TT,T=4.0

sub68111-30750

main68111-30480iGS131,MS132,135..(SED,WG)..(ROY,SAL)198709-199110

*TEM,T=4.0,BRONZE

main68111-30500iMS133,135..HT198709-199110

*TT,T=5.0

main68111-30510iMS133,135..HT198709-199110

*TT,T=5.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-30370iLS130,YS132198709-199110

*TEM,T=4.0

sub68112-30680

main68112-30380iLS130,MS132,135,YS132..SED,WG198709-199110

*TT,T=4.0

sub68112-30680

main68112-30410iGS131,MS132,135..(SED,WG)..(ROY,SAL)198709-199110

*TEM,T=4.0,BRONZE

main68112-30430iMS133,135..HT198709-199110

*TT,T=5.0

main68112-30440iMS133,135..HT198709-199110

*TT,T=5.0,BRONZE

68141RUN, FRONT DOOR GLASS

main68141-30200iGS131,LS130,MS132,135,YS132..SED,WG198709-199003

RH

sub68141-30201

main68141-30201iGS131,LS130,MS13#,YS132..SED,WG199003-199010

RH

sub68141-30202

main68141-30202iGS131,LS130,MS13#,YS132..SED,WG199010-199110

RH

main68151-30090iGS131,LS130,MS132,135,YS132..SED,WG198709-199003

LH

sub68151-30091

main68151-30091iGS131,LS130,MS13#,YS132..SED,WG199003-199010

LH

sub68151-30092

main68151-30092iGS131,LS130,MS13#,YS132..SED,WG199010-199110

LH

68610CHECK ASSY, FRONT DOOR

main68610-30040iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main68610-30060iMS133,135..HT198709-199110

68617PIN, FRONT DOOR CHECK

main68617-30030iGS131,LS130,MS13#,YS132198709-199110

9017906159

main90179-06159

9033335002

main90333-35002

9095001229

main90950-01229

9165140612

main91651-40612

29 parts on this diagram · 6 diagrams in section
