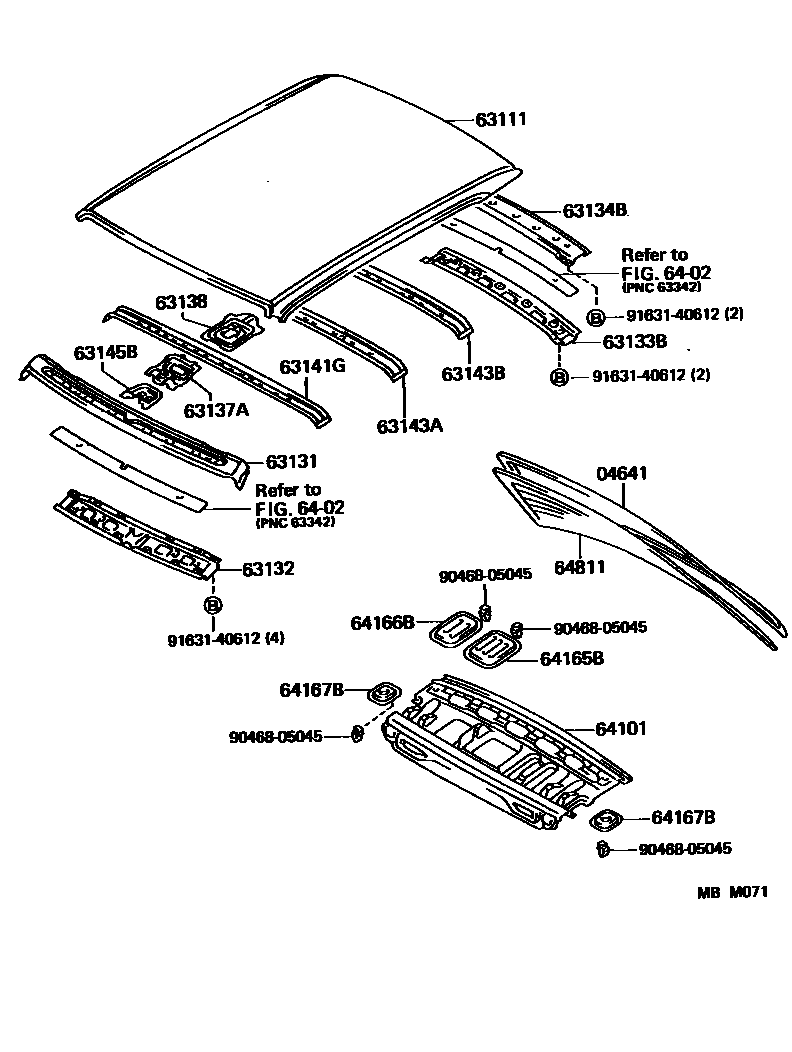

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iGS131,LS130,MS13#,YS132..HT,SED198709-199110

63111PANEL, ROOF

main63111-30200iGS131,LS130,MS13#,YS132..SED198709-199110

main63111-30210iMS133,135..HT198709-199110

main63111-30220iMS133,135..HT198709-199110

W(SUN ROOF)

main63111-91706iMS132..WG..GEN198709-198712

main63111-91707iMS132..WG..GCC198709-198712

main63111-91711iMS132..WG..GEN198712-198809

main63111-91714iMS132..WG..GCC198809-199110

main63111-91715iMS132..WG..GEN198809-199110

63131PANEL, WINDSHIELD HEADER, OUTER

main63131-30030iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main63131-30040iMS133,135..HT198709-199110

63132PANEL, WINDSHIELD HEADER, INNER

main63132-30140iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main63132-30150iMS133,135..HT198709-199110

63133BFRAME, BACK WINDOW

main63133-30130iGS131,LS130,MS13#,YS132..SED198709-199110

main63133-30140iMS133,135..HT198709-199110

63134BPANEL, BACK WINDOW, UPR OUTER

main63134-30010iGS131,LS130,MS13#,YS132..SED198709-199110

main63134-30020iMS133,135..HT198709-199110

63137ABRACKET, DOME LAMP, NO.1

main63137-30080iGS131,MS132,135..ROY..GEN198709-199110

main63137-30090iMS133,135..HT198709-199110

main63137-30110×2iMS133,135..HT198709-199110

W(SUN ROOF)

main63137-30120iMS135..SED..GCC;GS131,MS132,133..SAL198709-199110

63138BRACKET, DOME LAMP, NO.2

main63138-30050iGS131,LS130,MS13#,YS132..SED198709-199110

main63138-30060iMS133,135..HT198709-199110

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-30060iGS131,LS130,MS13#,YS132..SED198709-199110

main63141-30070iMS133,135..HT198709-199110

main63141-91705iMS132..WG..GEN198709-198712

main63142-91708iMS132..WG..GEN198712-199110

63143AREINFORCEMENT, ROOF PANEL

main63143-30070iGS131,LS130,MS13#,YS132..SED198709-199110

main63143-30080iMS133,135..HT198709-199110

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63142-91708iMS132..WG198712-199110

main63143-30070iGS131,LS130,MS13#,YS132..SED198709-199110

main63143-91703iMS132..WG198709-198712

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-30060iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main63145-30070iMS133,135..HT198709-199110

6402

64101PANEL SUB-ASSY, UPPER BACK

main64101-30160iGS131,LS130,YS132..MTM;MS13#..SED..(4F,4FC,5F)199101-199110

main64101-30170iGS131..4FC;MS135..4HC199101-199110

main64101-30180iMS133,135..HT198709-199110

main64101-30190iMS135..GCC198709-198908

W(REAR SEAT ADJUSTER)

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-30020iMS135..V;MS135..SED..GCC;GS131,LS130,MS133,YS132;MS132..SED..(DLX,SAL,STD)198709-198911

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-30020iMS135..V;MS135..SED..GCC;GS131,LS130,MS133,YS132;MS132..SED..(DLX,SAL,STD)198709-198911

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64167-30020×2iMS135..V;MS135..SED..GCC;GS131,LS130,MS132,133,YS132..(HT,SED)..(DLX,SAL,SALEX,STD)198709-199101

64811GLASS, BACK WINDOW

main64801-30360iMS132..4F;LS130,MS135,YS132..GEN;MS132..SED..(DLX,ROY,SAL)198709-198902

*EHTT,T=4.0

main64801-30380iGS131,MS132,135..SED..(ROY,SAL)198709-198908

*EHTT,T=4.0,BRONZE

main64801-30440iMS133,135..GCC198709-198908

*EHTT,T=4.0

main64801-30441iMS133,135..HT198908-199110

*EHTT,T=4.0

main64801-30450iMS133,135..GCC198709-198908

*EHTT,T=4.0,BRONZE

main64801-30451iMS133,135..HT198908-199110

*EHTT,T=4.0,BRONZE

main64811-30510iLS130,YS132198709-199110

*TEM,T=4.0

sub64801-30340

main64811-30540iMS132..5F..STD198709-198902

*TT,T=4.0,THAILAND SPEC

9046805045

main90468-05045

9163140612

main91631-40612

20 parts on this diagram · 7 diagrams in section
