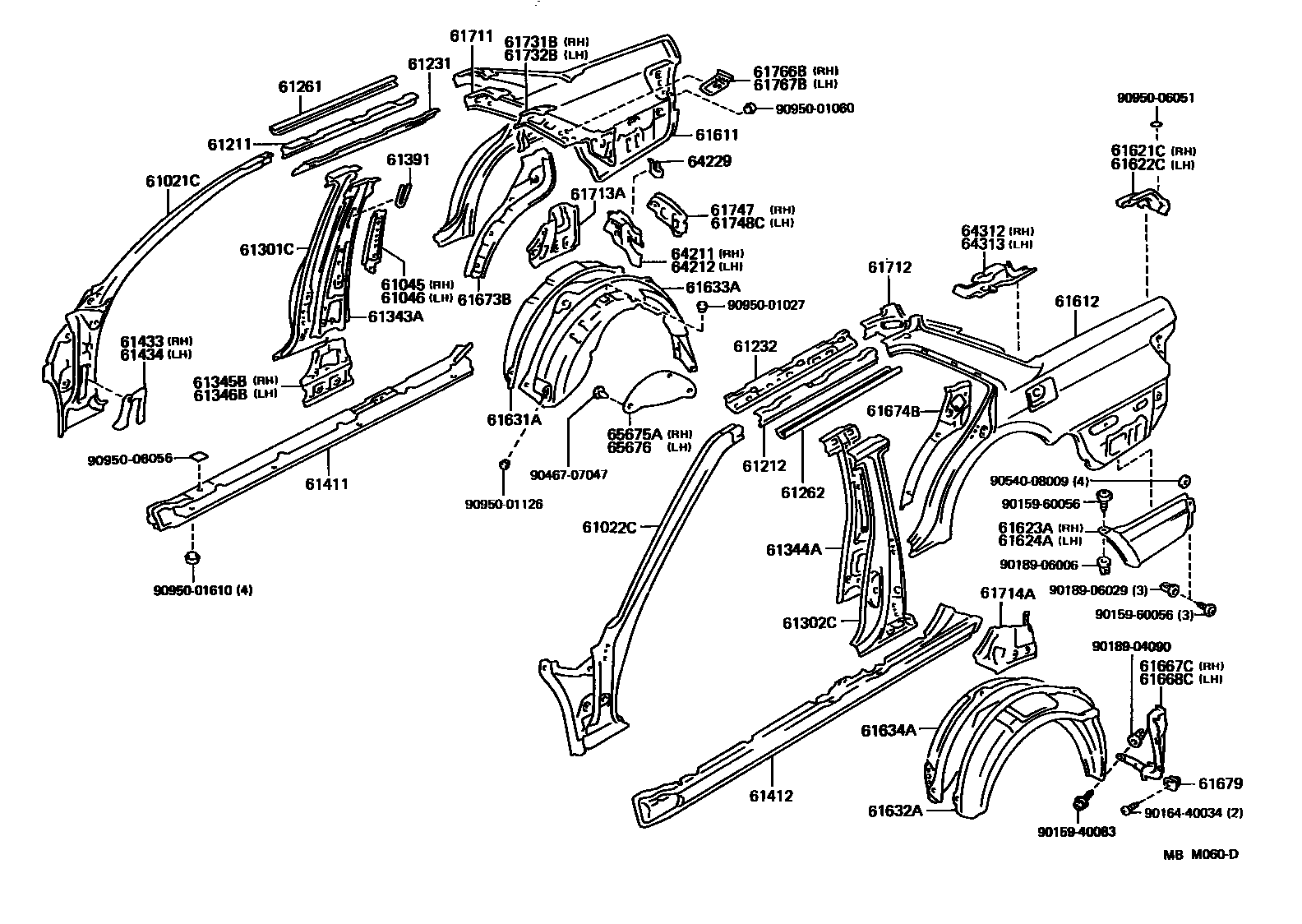

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-30160iGS131,LS130,MS13#..RHD198709-199110

sub61021-31020

main61021-30170iMS135..LHD..SED;MS132,133..SED..GCC;GS131,LS130,MS132,YS132..LHD..GEN198709-199110

sub61021-30230

main61021-30210iMS133,135..HT198709-199110

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-30160iGS131,LS130,MS13#..RHD198709-199110

sub61022-31020

main61022-30200iMS133,135..HT198709-199110

main61022-30210iMS135..LHD..SED;MS132,133..SED..GCC;GS131,LS130,MS132,YS132..LHD..GEN198709-199110

sub61022-30230

61045REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH

main61045-30060iGS131,MS132,135..ROY..GEN198709-199110

main61045-30070iMS133,135..GCC198709-198809

sub61045-30071

main61045-30071iMS133,135..HT198812-199110

main61045-30080iMS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD198709-199110

61046REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH

main61046-30060iGS131,MS132,135..ROY..GEN198709-199110

main61046-30070iMS133,135..GCC198709-198809

sub61046-30071

main61046-30071iMS133,135..HT198812-199110

main61046-30080iMS135..SED..GCC;GS131,LS130,MS132,133,YS132..DLX,SAL,STD198709-199110

61211RAIL, ROOF SIDE, OUTER RH

main61211-30140iGS131,LS130,MS13#,YS132..SED198709-199110

main61211-30150iMS133,135..HT198709-199110

main61211-91704iMS132..WG198709-199110

61212RAIL, ROOF SIDE, OUTER LH

main61212-30140iGS131,LS130,MS13#,YS132..SED198709-199110

main61212-30150iMS133,135..HT198709-199110

main61212-91704iMS132..WG198709-199110

61231RAIL, ROOF SIDE, INNER RH

main61231-30220iGS131,LS130,MS13#,YS132..SED198709-199110

main61231-30230iMS133,135..HT198709-199110

main61231-91705iMS132..WG198709-199110

61232RAIL, ROOF SIDE, INNER LH

main61232-30220iGS131,LS130,MS13#,YS132..SED198709-199110

main61232-30230iMS133,135..HT198709-199110

main61232-91705iMS132..WG198709-199110

61261CHANNEL, ROOF DRIP, RH

main61261-30130iGS131,LS130,MS13#,YS132..SED198709-199110

main61261-30140iMS133,135..HT198709-199110

main61261-91702iMS132..WG198709-199110

61262CHANNEL, ROOF DRIP, LH

main61262-30130iGS131,LS130,MS13#,YS132..SED198709-199110

main61262-30140iMS133,135..HT198709-199110

main61262-91702iMS132..WG198709-199110

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-30120iGS131,LS130,MS13#,YS132..SED,WG198709-199110

sub61301-30150

main61301-30140iMS133,135..GCC198709-198908

main61301-30141iMS133,135..HT198908-199110

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-30140iGS131,LS130,MS13#,YS132..GEN198709-199110

sub61302-30150

main61302-30150iMS13#..(SED,WG)..GCC198709-199110

sub61302-30180

main61302-30170iMS133,135..GCC198709-198908

sub61302-30160

main61302-30171iMS133,135..HT198908-199110

sub61302-30161

61343APILLAR, CENTER BODY, INNER RH

main61343-30100iGS131,LS130,MS13#,YS132..SED,WG198709-199110

sub61343-30101

sub82817-3K170

main61343-30110iMS133,135..HT198709-199110

61344APILLAR, CENTER BODY, INNER LH

main61344-30100iGS131,LS130,MS13#,YS132..SED,WG198709-199110

sub61344-30101

sub82817-3K180

main61344-30110iMS133,135..HT198709-199110

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-30080iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main61345-30090iMS133,135..HT198709-199110

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-30080iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main61346-30090iMS133,135..HT198709-199110

61391SPACER, CENTER BODY PILLAR, INNER

main61391-30010iMS135..HT;MS135..GEN;GS131,MS132,133..ROY,SALEX198709-199110

61411PANEL, ROCKER, OUTER RH

main61401-30200iLS130,YS132198709-199110

sub61401-30220

main61401-30210iGS131,MS13#198709-199110

W(URETHANE BUMPER)

sub61401-30230

61412PANEL, ROCKER, OUTER LH

main61402-30200iLS130,YS132198709-199110

sub61402-30220

main61402-30210iGS131,MS13#198709-199110

W(URETHANE BUMPER)

sub61402-30230

61433PANEL, ROCKER, INNER RH

main61433-30010iGS131,LS130,MS13#,YS132198709-199110

sub61433-30011

61434PANEL, ROCKER, INNER LH

main61434-30010iGS131,LS130,MS13#,YS132198709-199110

sub61434-30011

61611PANEL, QUARTER, RH

main61601-30917iLS130,MS132,YS132..4F,4H,4HC198709-199110

W(URETHANE BUMPER)

main61601-30918iLS130,MS132,YS132..4F,4H,4HC198709-199110

W(STEEL BUMPER)

main61601-30920iMS133,135..HT198709-199110

main61601-91713iMS132..WG198709-198712

sub61601-91798

main61601-91798iMS132..WG198712-199110

61612PANEL, QUARTER, LH

main61602-3A902iMS132..4F,4HC198709-199110

W(URETHANE BUMPER)

main61602-3A902iLS130..RHD198709-198804

W(URETHANE BUMPER & ANTENNA)

main61602-3A902iLS130..RHD198709-199110

W(RADIO OR MANUAL ANTENNA)

main61602-3A903iLS130,YS132198709-199110

W(ANTENNA)

main61602-3A903iLS130..RHD198801-198804

W(RADIO & ANTENNA)

main61602-3A903iMS132..4F,4HC198709-199110

W(STEEL BUMPER)

main61602-3A903iLS130..RHD198709-198801

W(MANUAL ANTENNA)

main61602-3A904iLS130,YS132198709-199110

W(URETHANE BUMPER)

main61602-3A905iLS130,YS132198709-199110

main61602-3A908iMS133,135..HT198709-199110

main61602-91717iMS132..WG198709-198712

sub61602-91796

main61602-91796iMS132..WG198712-199110

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-30090iGS131,LS130,MS13#,YS132..SED198709-199110

main61621-30100iMS133,135..HT198709-199110

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-30080iGS131,LS130,MS13#,YS132..SED198709-199110

main61622-30100iMS133,135..HT198709-199110

61623AEXTENSION, QUARTER PANEL, OUTER RH

main61623-30030iLS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN198709-199110

61624AEXTENSION, QUARTER PANEL, OUTER LH

main61624-30030iLS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN198709-199110

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-30100iGS131,LS130,MS13#,YS132..SED198709-199110

main61631-30110iMS133,135..HT198709-199110

main61631-91790iMS132..WG198709-199110

sub61631-31900

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-30100iGS131,LS130,MS13#,YS132..SED198709-199110

main61632-30110iMS133,135..HT198709-199110

main61632-91790iMS132..WG198709-199110

sub61632-31900

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-30913iLS130,MS132,YS132..SED198709-199110

main61603-30914iGS131,MS133,135198709-199110

sub61603-30915

main61633-91790iMS132..WG198908-199110

W(REAR AIR CONDITIONER)

main61633-91790iMS132..WG198709-198908

W(FRONT & REAR AIR CONDITIONER)

main61633-91791iMS132..WG198709-199110

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-30912iLS130,MS132,YS132..SED198709-199110

main61604-30913iGS131,MS133,135198709-198908

main61604-30914iGS131,MS133,135198908-199110

sub61604-30916

main61634-91790iMS132..WG198908-199110

W(REAR AIR CONDITIONER)

sub61634-31902

main61634-91790iMS132..WG198709-198908

W(FRONT & REAR AIR CONDITIONER)

sub61634-31902

main61634-91791iMS132..WG198709-199110

61667CSEAL, QAURTER PANEL, NO.1

main61667-30010iGS131,MS133,135..SED;MS132..SED..(4FC,5F)198709-199110

main61667-30010iLS130,MS132,YS132..STD198908-199110

W(URETHANE BUMPER)

main61667-30020iMS133,135..HT198709-199110

main61667-30030iMS132,133..SED..SAL..GEN198709-199110

W(STEEL BUMPER)

61668CSEAL, QUARTER PANEL, NO.2

main61668-30010iGS131,MS133,135..SED;MS132..SED..(4FC,5F)198709-199110

main61668-30010iLS130,MS132,YS132..STD198908-199110

W(URETHANE BUMPER)

main61668-30020iMS133,135..HT198709-199110

main61668-30030iLS130,MS132,YS132..4F,4H,4HC198709-199110

W(STEEL BUMPER)

61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH

main61673-30010iGS131,LS130,MS13#,YS132..SED198709-199110

main61673-30020iMS133,135..HT198709-199110

main61673-91701iMS132..WG198709-199110

61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH

main61674-30010iGS131,LS130,MS13#,YS132..SED198709-199110

main61674-30020iMS133,135..HT198709-199110

main61674-91701iMS132..WG198709-199110

61679RETAINER, REAR WHEEL OPENING EXTENSION

main61679-30010iGS131,LS130,MS13#,YS132..SED198709-199110

61711PANEL, ROOF SIDE, OUTER RH

main61711-30010iGS131,LS130,MS13#,YS132..SED198709-199110

main61711-30020iMS133,135..HT198709-199110

61712PANEL, ROOF SIDE, OUTER LH

main61712-30010iGS131,LS130,MS13#,YS132..SED198709-199110

main61712-30020iMS133,135..HT198709-199110

61713AEXTENSION, ROOF SIDE, OUTER RH

main61713-30010iGS131,LS130,MS13#,YS132..SED198709-199110

main61713-30030iMS133,135..HT198709-199110

61714AEXTENSION, ROOF SIDE, OUTER LH

main61714-30010iGS131,LS130,MS13#,YS132..SED198709-199110

main61714-30030iMS133,135..HT198709-199110

61731BPANEL, ROOF SIDE, INNER RH

main61705-91717iMS132..WG198709-199110

main61731-30090iGS131,LS130,MS13#,YS132..SED198709-199110

main61731-30100iMS133,135..HT198709-199110

61732BPANEL, ROOF SIDE, INNER LH

main61706-91722iMS132..WG198709-199110

main61706-91723iMS132..WG198709-199110

W(REAR AIR CONDITIONER)

main61732-30090iGS131,LS130,MS13#,YS132..SED198709-199110

main61732-30100iMS133,135..HT198709-199110

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-30030iGS131,MS133,135..SED198709-199110

main61747-30040iMS133,135..HT198709-199110

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-30030iGS131,MS133,135..SED198709-199110

main61748-30040iMS133,135..HT198709-199110

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-30070iGS131,LS130,MS13#,YS132..SED198709-199110

main61766-30080iMS133,135..HT198709-199110

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-30060iGS131,LS130,MS13#,YS132..SED198709-199110

main61767-30070iMS133,135..HT198709-199110

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-30080iGS131,LS130,MS13#,YS132..SED198709-199110

main64211-30090iMS133,135..HT198709-199110

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-30070iGS131,LS130,MS13#,YS132..SED198709-199110

main64212-30080iMS133,135..HT198709-199110

64229STAY, REAR SEAT CUSHION SUPPORT

main64229-30010iMS132..SED;MS135..4FC;GS131,LS130,MS133,YS132..SAL,SALEX,STD198709-199110

64312BRACKET, PACKAGE TRAY, RH

main64312-30901iGS131,LS130,MS13#,YS132..SED198709-199110

main64312-30902iMS133,135..HT198709-199110

64313BRACKET, PACKAGE TRAY, LH

main64313-30901iGS131,LS130,MS13#,YS132..SED198709-199110

main64313-30902iMS133,135..HT198709-199110

65675ASEAL, WHEEL HOUSE, FRONT RH

main65675-30020iGS131,MS133,135198709-199110

65676SEAL, WHEEL HOUSE, FRONT LH

main65676-30020iGS131,MS133,135198709-199110

9015940083

main90159-40083

9015960056

main90159-60056

9016440034

main90164-40034

9018904090

main90189-04090

9018906006

main90189-06006

9018906029

main90189-06029

9046707047

main90467-07047

9054008009

main90540-08009

9095001027

main90950-01027

9095001060

main90950-01060

9095001126

main90950-01126

9095001610

main90950-01610

9095006051

main90950-06051

9095006056

main90950-06056

67 parts on this diagram · 6 diagrams in section
