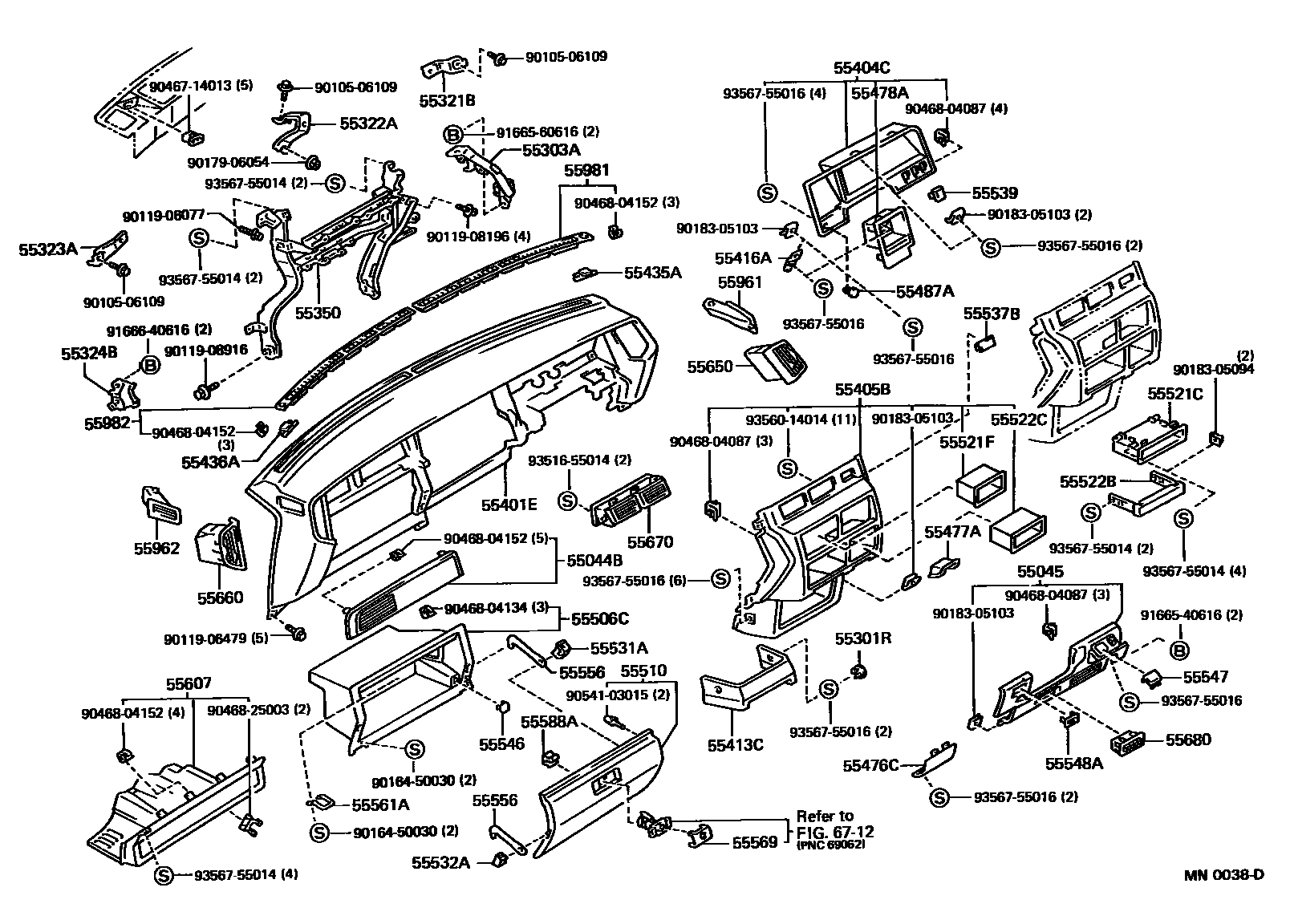

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55044BPANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER

main55044-30130iLS130,MS132..RHD..(DLX,STD)198709-198906

sub55044-30131

main55044-30131iLS130,MS132..RHD..STD198906-198908

main55044-30140iGS131,MS132,135..RHD..(ROY,SAL)198709-198906

sub55044-30141

main55044-30141iGS131,MS132,135..RHD..(ROY,SAL)198906-198908

sub55044-30180

main55044-30170iLS130,MS13#,YS132..LHD198709-198906

sub55044-30171

main55044-30171iLS130,MS13#,YS132..LHD198906-198908

main55044-30180iGS131,MS133,135..RHD..(ROY,SAL)198908-199110

main55044-30190iGS131,LS130,MS13#,YS132..LHD198908-199110

main55044-30200iLS130,MS133..RHD..STD198908-199110

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55045-30050-02iMS133..STD198709-199110

MAROON,TRIM3#

sub55045-30070

main55045-30050-04iLS130,MS132,133..RHD..(DLX,STD)198709-199110

BLUE,TRIM8#

sub55045-30070

main55045-30060-02iLS130,MS13#,YS132..LHD198709-199110

MAROON,TRIM3#

main55045-30060-04iGS131,LS130,MS13#,YS132..LHD198709-199110

BLUE,TRIM8#

main55045-30060-06iGS131,MS13#..LHD..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

55301RPLUG, HOLE(FOR INSTRUMENT PANEL)

main90950-01581-02iLS130,MS132..4H,4HC198709-198908

MAROON,TRIM3#

sub90950-01581

main90950-01581-04iLS130,MS132..4H,4HC198709-199110

BLUE,TRIM8#

sub90950-01581

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-30080iLS130,MS132,135..RHD198709-199110

main55303-30090iGS131,LS130,MS13#,YS132..LHD198709-199110

sub55303-30091

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-30050iLS130,MS132,135..RHD198709-199110

main55321-30060iGS131,LS130,MS13#,YS132..LHD198709-199110

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-30010iGS131,LS130,MS13#..RHD198709-199110

main55322-30020iGS131,LS130,MS13#,YS132..LHD198709-199110

55323ABRACKET, INSTRUMENT PANEL, NO.3

main55323-30010iLS130,MS132,135..RHD198709-199110

main55323-30020iGS131,LS130,MS13#,YS132..LHD198709-199110

55324BBRACKET, INSTRUMENT PANEL, NO.4

main55324-30010iLS130,MS132,135..RHD198709-199110

main55324-30020iGS131,LS130,MS13#,YS132..LHD198709-199110

55350BRACE ASSY, INSTRUMENT PANEL

main55350-30010iLS130..RHD198709-199110

main55350-30020iGS131,MS132,135..RHD..ROY198709-199110

main55350-30030iMS132,133..RHD..(DLX,STD)198808-199110

main55350-30040iMS132,133..RHD..SAL198808-199110

main55350-30050iGS131,LS130,MS13#,YS132..LHD198805-199110

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30300-02iGS131,LS130,MS132,135..RHD198709-198905

MAROON,TRIM3#

sub55401-30301

main55401-30300-04iLS130,MS132,135..RHD198709-198905

BLUE,TRIM8#

sub55401-30301

main55401-30300-06iMS132,135..RHD..(ROY,SAL)198709-198905

SABLE,TRIM4#

sub55401-30301

main55401-30301-02iGS131,LS130,MS132,135..RHD198905-199110

MAROON,TRIM3#

main55401-30301-04iLS130,MS13#..RHD198905-199110

BLUE,TRIM8#

main55401-30301-06iMS13#..RHD..(ROY,SAL)198905-199110

SABLE,TRIM4#

main55401-30310-02iGS131,LS130,MS13#,YS132..LHD..(4F,4FC,5F)198709-199110

MAROON,TRIM3#

main55401-30310-04iGS131,LS130,MS13#,YS132..LHD198709-199110

BLUE,TRIM8#

main55401-30310-06iGS131,MS13#..LHD..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-30600iLS130..RHD198709-198906

sub55404-30601

main55404-30601iLS130..4H198906-198908

main55404-30610iGS131,MS132,135..RHD198709-198906

sub55404-30611

main55404-30611iGS131,MS132,135..RHD198906-198908

main55404-30620iLS130,MS13#,YS132..LHD198709-198906

sub55404-30621

main55404-30621iLS130,MS13#,YS132..LHD198906-198908

main55404-30660iGS131,MS133,135..RHD198908-199110

main55404-30670iGS131,LS130,MS13#,YS132..LHD198908-199110

main55404-30710iLS130..4H198908-199110

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-30260-02iLS130..RHD198709-199110

MAROON,TRIM3#

main55405-30260-04iLS130..RHD198709-199110

BLUE,TRIM8#

55413CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2

main55413-30080-02iLS130,MS132..4H,4HC198709-198908

MAROON,TRIM3#

sub55413-30080

main55413-30080-04iLS130,MS132..4H,4HC198709-199110

BLUE,TRIM8#

sub55413-30080

55416ARETAINER, METER HOOD, NO.1

main55416-30080iLS130..RHD198709-199110

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-30130iGS131,LS130,MS132,133,YS132..DLX,SAL,SALEX,STD198709-199110

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-30070iLS130,MS132,133,YS132..DLX,SAL,SALEX,STD198709-199110

55476CGARNISH, INSTRUMENT PANEL FINISH PLATE

main55476-30110-02iLS130..4H198709-198908

MAROON,TRIM3#

sub55476-43010

sub55476-30110

main55476-30110-04iLS130..4H198709-199110

BLUE,TRIM8#

sub55476-43010

sub55476-30110

main55476-30120-02iLS130,MS132,133..RHD..(4F,5F)..STD198709-199110

MAROON,TRIM3#

sub55476-30120

main55476-30120-04iLS130,MS132,133..RHD..(4F,5F)..STD198709-199110

BLUE,TRIM8#

sub55476-30120

main55476-30130-02iMS132..DLX..GEN198709-198809

MAROON,TRIM3#

sub55476-30130

main55476-30130-04iMS132..DLX..GEN198709-198809

BLUE,TRIM8#

sub55476-30130

main55476-30140-02iMS132,133..RHD..4FC..SAL198709-199110

MAROON,TRIM3#

sub55476-30140

main55476-30140-02iMS132,133..RHD..4FC..SAL198709-199110

MAROON,TRIM3#,LH

sub55476-30140

main55476-30140-04iMS132,133..RHD..5F..SAL198709-199110

BLUE,TRIM8#,LH

sub55476-30140

main55476-30140-04iMS132,133..RHD..4FC..SAL198709-199110

BLUE,TRIM8#

sub55476-30140

main55476-30140-06iMS132,133..RHD..4FC..SAL198709-199110

SABLE,TRIM4#,LH

sub55476-30140

main55476-30140-06iMS132,133..RHD..4FC..SAL198709-199110

SABLE,TRIM4#

sub55476-30140

main55476-30150-02iGS131..5F..ROY198709-199110

MAROON,TRIM3#

sub55476-30150

main55476-30150-02iGS131..5F..ROY198709-199110

MAROON,TRIM3#,RH

sub55476-30150

main55476-30150-04iMS132,133..RHD..5F..SAL198709-199110

BLUE,TRIM8#,RH

sub55476-30150

main55476-30150-06iMS132,133..RHD..5F..SAL198709-199110

SABLE,TRIM4#,RH

sub55476-30150

main55476-30160-02iYS132..4H;LS130..LHD198709-199110

MAROON,TRIM3#

sub55476-30160

main55476-30160-04iYS132..4H;LS130..LHD198709-199110

BLUE,TRIM8#

sub55476-30160

main55476-30170-02iGS131,MS13#,YS132..LHD..(4F,4FC,5F)198709-199110

MAROON,TRIM3#

sub55476-30170

main55476-30170-04iGS131,MS13#,YS132..LHD..(4F,4FC,5F)198709-199110

BLUE,TRIM8#

sub55476-30170

main55476-30170-06iGS131,MS13#..LHD..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55476-30170

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-30040iLS130..RHD198709-199110

main55477-30050iMS132,135;LS130,MS133,YS132..LHD198709-199110

55478ABEZEL, AUTO CLOCK HOLE

main55478-30070iLS130..RHD198803-198907

sub55478-30071

main55478-30071iLS130..4H198907-198908

main55478-30080iLS130..4H198908-199110

55487ACOVER, RHEOSTAT SWITCH HOLE

main55619-14010-01iYS132..4H198908-199110

BLACK,TRIM3#,8#

sub55619-14010

main55619-14010-01iYS132..4H198908-199110

BLACK,TRIM8#

sub55619-14010

main55619-14010-11iMS132..DLX,STD;LS130,YS132..LHD198709-198908

BLACK,TRIM3#,8#

sub55619-14010

55506CCOMPARTMENT SUB-ASSY, GLOVE

main55506-30060iLS130,MS132,135..RHD198709-199110

main55506-30070iGS131,LS130,MS13#,YS132..LHD198709-199110

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-30230-02iGS131,LS130,MS132,135..RHD198709-199110

MAROON,TRIM3#

main55550-30230-04iLS130,MS13#..RHD198709-199110

BLUE,TRIM8#

main55550-30230-06iMS13#..RHD..(ROY,SAL)198709-199110

SABLE,TRIM4#

main55550-30240-02iGS131,LS130,MS13#,YS132..LHD..(4F,4FC,5F)198709-199110

MAROON,TRIM3#

main55550-30240-04iGS131,LS130,MS13#,YS132..LHD198709-199110

BLUE,TRIM8#

main55550-30240-06iGS131,MS13#..LHD..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

55521CCOVER, STEREO OPENING

main55521-16030iLS130,MS13#,YS132..(4F,4H,4HC,5F)..(DLX,ROY,STD)198709-199110

55521FCOVER, STEREO OPENING, NO.2

main55521-30110-02iLS130..RHD198709-198908

MAR00N,TRIM3#

main55521-30110-04iLS130..RHD198709-199110

BLUE,TRIM8#

55522BCOVER, RADIO TUNER OPENING

main55522-16030iLS130,YS132..LHD198709-199110

25X180

main55522-30100iMS135..4HC198709-199110

55522CCOVER, RADIO RECEIVER OPENING

main55522-30090-02iLS130..RHD198709-198908

MAROON,TRIM3#

main55522-30090-04iLS130..RHD198709-199110

BLUE,TRIM8#

55531APANEL, GLOVE COMPARTMENT, NO.1

main55531-30160iLS130,MS13#,YS132198709-199110

55532APANEL, GLOVE COMPARTMENT, NO.2

main55532-30050iLS130,MS132,135..RHD198709-199110

main55532-30060iGS131,LS130,MS13#,YS132..LHD198709-199110

55537BCOVER, REAR DEFOGGER SWITCH HOLE

main55538-20050iMS132..WG;LS130,YS132;MS132..5F..STD198709-199110

main55538-20050iMS132..RHD..5F..SAL198709-198908

THAILAND SPEC

55539COVER, SPARE SWITCH HOLE

main55539-30070iGS131,LS130,MS13#,YS132198709-198906

sub55539-30071

main55539-30071iGS131,LS130,MS13#,YS132198906-198908

main55539-30090iGS131,LS130,MS13#,YS132198908-199110

55546COVER, LUGGAGE COMPARTMENT OPENER SWITCH HOLE

main55546-30030iMS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN198709-199110

55547COVER, REMOTE CONTROL MIRROR HOLE

main74267-24010-16iGS131,MS13#..LHD..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

sub74267-24010

main74267-24010-22iMS132,135..LHD;LS130,MS133,YS132;MS132..RHD..(DLX,STD)198709-199110

MAROON,TRIM3#

sub74267-24010

main74267-24010-34iMS133..SALEX,STD;MS132..RHD..(DLX,STD);GS131,LS130,YS132..SAL,STD;MS13#..LHD..(DLX,ROY,SAL,STD)198709-199110

DARK BLUE,TRIM8#

sub74267-24010

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-30070-02iMS133..STD198709-199110

MAROON,TRIM3#

main55548-30070-04iLS130,MS132,133..RHD..(DLX,STD)198709-199110

BLUE,TRIM8#

main55548-30080-02iGS131,MS13#..RHD..(ROY,SAL)198709-199110

MAROON,TRIM3#

sub55548-30080

main55548-30080-04iMS13#..RHD..(ROY,SAL)198709-199110

BLUE,TRIM8#

sub55548-30080

main55548-30080-06iMS13#..RHD..(ROY,SAL)198709-199110

SABLE,TRIM4#

sub55548-30080

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-30050iLS130,MS13#,YS132198709-199110

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-30030iGS131,LS130,MS13#,YS132198709-199110

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-30010-02iGS131,LS130,MS13#,YS132..4F,4FC,4HC,5F198709-199110

MAROON,TRIM3#

sub55569-30010

main55569-30010-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198709-199110

BLUE,TRIM8#

sub55569-30010

main55569-30010-06iMS132,135..ROY,SAL;GS131,MS133..SAL,SALEX198709-199110

SABLE,TRIM4#

sub55569-30010

55588AHOLDER, GLOVE COMPARTMENT DOOR MIRROR, RH

main55588-30030iLS130,MS13#,YS132198709-199110

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-30050-02iGS131,MS133,135..RHD198709-199110

MAROON,TRIM3#

sub55607-30120

main55607-30050-04iLS130,MS13#..RHD198709-199110

BLUE,TRIM8#

sub55607-30120

main55607-30050-06iMS13#..RHD..(ROY,SAL)198709-199110

SABLE,TRIM4#

sub55607-30120

main55607-30060-02iGS131,LS130,MS13#,YS132..LHD..(4F,4FC,5F)198709-199110

MAROON,TRIM3#

sub55607-30130

main55607-30060-04iGS131,LS130,MS13#,YS132..LHD198709-199110

BLUE,TRIM8#

sub55607-30130

main55607-30060-06iGS131,MS13#..LHD..(ROY,SAL,SALEX)198709-199110

SABLE,TRIM4#

sub55607-30130

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30130-02iLS130,MS13#,YS132198709-198710

MAROON,TRIM3#

sub55650-30131

main55650-30130-04iLS130,MS13#,YS132198709-198710

BLUE,TRIM8#

sub55650-30131

main55650-30130-06iMS13#..ROY,SAL,SALEX198709-198710

SABLE,TRIM4#

sub55650-30131

main55650-30131-02iGS131,LS130,MS13#,YS132198710-199110

MAROON,TRIM3#

sub55650-30131

main55650-30131-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198710-199110

BLUE,TRIM8#

sub55650-30131

main55650-30131-06iMS132,135..ROY,SAL;GS131,MS133..SAL,SALEX198710-199110

SABLE,TRIM4#

sub55650-30131

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-30200-02iLS130,MS13#,YS132198709-198710

MAROON,TRIM3#

sub55660-30201

main55660-30200-04iLS130,MS13#,YS132198709-198710

BLUE,TRIM8#

sub55660-30201

main55660-30200-06iMS13#..ROY,SAL,SALEX198709-198710

SABLE,TRIM4#

sub55660-30201

main55660-30201-02iGS131,LS130,MS13#,YS132..4F,4FC,4HC,5F198710-199110

MAROON,TRIM3#

sub55660-30201

main55660-30201-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198710-199110

BLUE,TRIM8#

sub55660-30201

main55660-30201-06iMS132,135..ROY,SAL;GS131,MS133..SAL,SALEX198710-199110

SABLE,TRIM4#

sub55660-30201

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55063-30020iGS131,MS132,135..RHD..ROY198709-198908

sub55063-30050

main55063-30030iMS132..RHD..(DLX,SAL,STD)198709-198908

sub55063-30060

main55063-30040iLS130,MS13#,YS132..LHD198709-198908

sub55063-30070

main55063-30050iGS131,MS135..RHD198908-199110

main55063-30060iMS133..GEN198908-199110

sub55063-30070

main55063-30070iGS131,LS130,MS13#,YS132..LHD198908-199110

main55670-30080-02iLS130..RHD198709-198908

MAROON,TRIM3#

sub55670-30080

main55670-30080-04iLS130..RHD198709-199110

BLUE,TRIM8#

sub55670-30080

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-02iLS130,MS13#,YS132198709-198807

MAROON,TRIM3#

sub55680-14030

main55680-14030-14iLS130,MS13#,YS132198709-198807

DARK BLUE,TRIM8#

sub55680-14030

main55680-14030-16iMS13#..ROY,SAL,SALEX198709-199110

SABLE,TRIM4#

sub55680-14030

main55680-14030-D0iGS131,LS130,MS13#,YS132..4F,4FC,4HC,5F198908-199110

MAROON,TRIM3#

sub55680-14030

main55680-14030-J0iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198908-199110

DARK BLUE,TRIM8#

sub55680-14030

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30060-02iGS131,LS130,MS13#,YS132198709-199110

MAROON,TRIM3#

sub55961-30060

main55961-30060-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198709-199110

BLUE,TRIM8#

sub55961-30060

main55961-30060-06iMS132,135..ROY,SAL;GS131,MS133..SAL,SALEX198709-199110

SABLE,TRIM4#

sub55961-30060

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30040-02iGS131,LS130,MS13#,YS132..4F,4FC,4HC,5F198709-199110

MAROON,TRIM3#

sub55962-30040

main55962-30040-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198709-199110

BLUE,TRIM8#

sub55962-30040

main55962-30040-06iMS132,135..ROY,SAL;GS131,MS133..SAL,SALEX198709-199110

SABLE,TRIM4#

sub55962-30040

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30020-02iGS131,LS130,MS13#,YS132..4F,4FC,4HC,5F198709-199110

MAROON,TRIM3#

sub55981-30020

main55981-30020-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198709-199110

BLUE,TRIM8#

sub55981-30020

main55981-30020-06iMS132,135..ROY,SAL;GS131,MS133..SAL,SALEX198709-199110

SABLE,TRIM4#

sub55981-30020

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-30020-02iGS131,LS130,MS13#,YS132198709-199110

MAROON,TRIM3#

sub55982-30020

main55982-30020-04iMS132,135;GS131,LS130,MS133,YS132..SAL,SALEX,STD198709-199110

BLUE,TRIM8#

sub55982-30020

main55982-30020-06iMS132,135..ROY,SAL;GS131,MS133..SAL,SALEX198709-199110

SABLE,TRIM4#

sub55982-30020

6712

9010506109

main90105-06109

9011906077

main90119-06077

9011906479

main90119-06479

9011908196

main90119-08196

9011908916

main90119-08916

9016450030

main90164-50030

9017906054

main90179-06054

9018305094

main90183-05094

9018305103

main90183-05103

9046714013

main90467-14013

9046804087

main90468-04087

9046804134

main90468-04134

9046804152

main90468-04152

9046825003

main90468-25003

9054103015

main90541-03015

9166540616

main91665-40616

9166560616

main91665-60616

9166640616

main91666-40616

9351655014

main93516-55014

9356014014

main93560-14014

9356755014

main93567-55014

9356755016

main93567-55016

69 parts on this diagram · 4 diagrams in section
