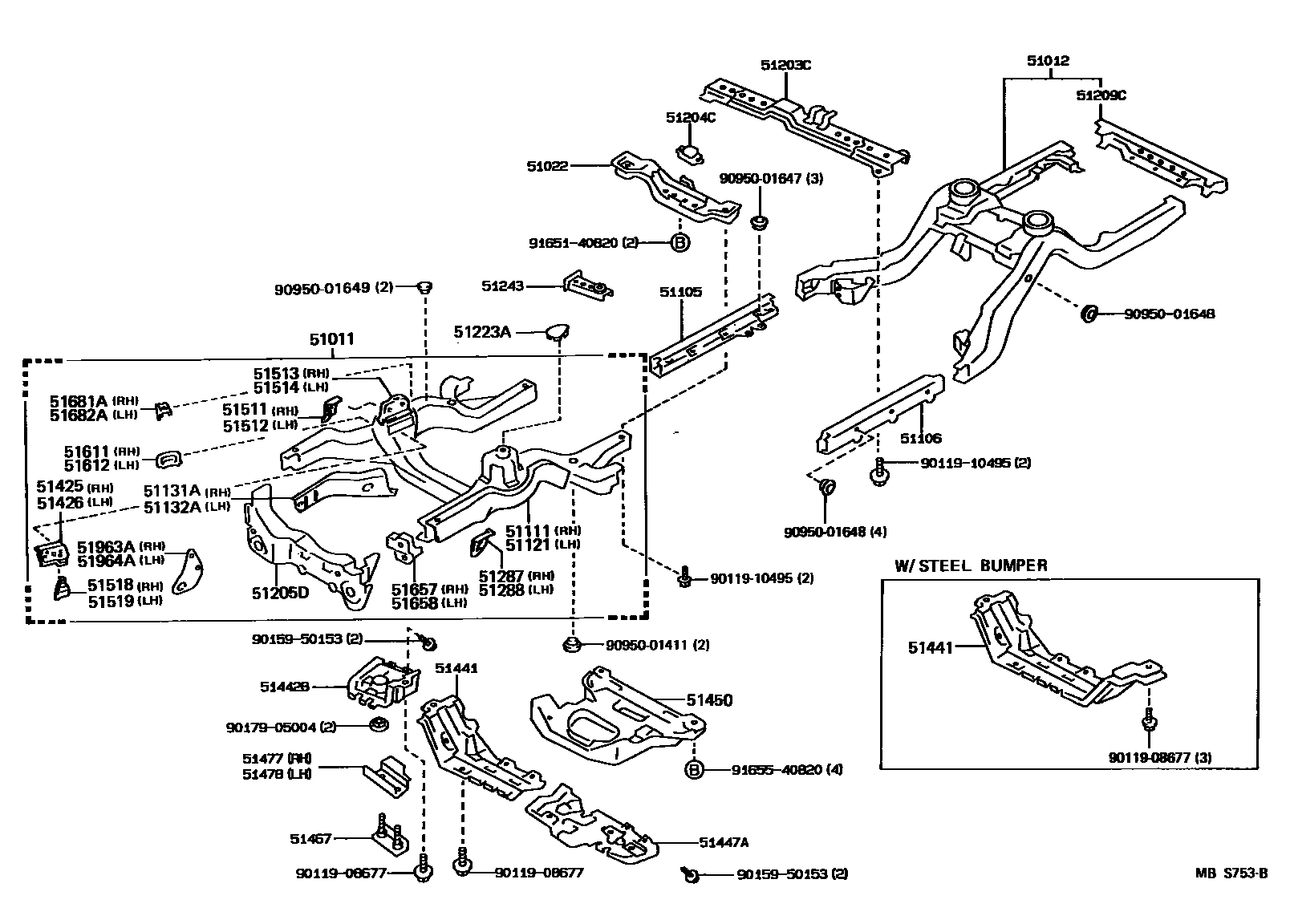

FRAME

0001 1 0002 1 0003 1

51011RAIL SUB-ASSY, FRONT FRAME

main51011-30380iGS131,MS133,135198709-199110

sub51011-30381

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

main51011-30400iLS130198709-199110

sub51011-30401

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

main51011-30410iYS132198709-199110

sub51011-30411

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

main51011-30420iMS132198709-199110

sub51011-30421

sub52203-30060

sub52204-30040

sub90119-10694

sub91616-61022

51012RAIL SUB-ASSY, REAR FRAME

main51012-30320iGS131,MS133,135198709-199110

sub51012-30370

main51012-30330iLS130,MS132,YS132..SED198709-199110

main51012-91706iMS132..WG198709-199110

51022MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-30060iGS131,MS132,133..MTM198709-199110

main51022-30070iGS131,MS13#..ATM198709-199110

main51022-30080iLS130..4H198709-199110

main51022-30090iYS132;LS130..4F198709-199110

51105RAIL SUB-ASSY, CENTER FRAME, RH

main51105-30060iGS131,LS130,MS13#,YS132198709-199110

51106RAIL SUB-ASSY, CENTER FRAME, LH

main51106-30060iGS131,LS130,MS13#,YS132198709-199110

51111RAIL, FRONT FRAME, NO.1 RH

main51111-30080iGS131,LS130,MS13#,YS132198709-199012

main51111-30081iGS131,LS130,MS13#,YS132199012-199105

main51111-30100iGS131,LS130,MS13#,YS132199105-199110

sub51111-30101

51121RAIL, FRONT FRAME, NO.1 LH

main51121-30080iGS131,LS130,MS13#,YS132198709-199012

main51121-30081iGS131,LS130,MS13#,YS132199012-199105

main51121-30100iGS131,LS130,MS13#,YS132199105-199110

sub51121-30101

51131ARAIL, FRONT FRAME, NO.5 RH

main51131-30040iGS131,LS130,MS13#,YS132198709-199110

sub51131-30041

51132ARAIL, FRONT FRAME, NO.5 LH

main51132-30040iGS131,LS130,MS13#,YS132198709-199110

sub51132-30041

51203CCROSSMEMBER SUB-ASSY, CENTER BEARING SUPPORT

main51203-30090iYS132..4F;LS130,MS132198709-199110

main51240-30010iGS131,MS133,135198709-199105

main51240-30011iGS131,MS133,135199105-199110

51204CDAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER

main51204-30070iLS130198709-199110

51205DSUPPORT SUB-ASSY, STRUT BAR

main51205-30080iGS131,LS130,MS13#,YS132198709-199110

sub51205-30900

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51291-30100iGS131,LS130,MS13#,YS132..HT,SED198709-198908

sub51291-30101

main51291-30900iMS132..WG198709-198908

51223ACOVER, ENGINE MOUNTING HOLE

main51223-30010×2iLS130199005-199110

51243MEMBER, ANTI SHAKE

main51243-30030×2iGS131,LS130,MS13#,YS132198709-199110

51287GUSSET, STRUT BAR BRACKET, LOWER RH

main51287-30060iGS131,LS130,MS13#,YS132198709-199110

51288GUSSET, STRUT BAR BRACKET, LOWER LH

main51288-30040iGS131,LS130,MS13#,YS132198709-199110

51425BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT RH

main51401-30100iYS132198709-199110

main51425-30140iGS131,MS13#..HT,SED198709-199110

main51425-30180iLS130198709-199110

51426BRACKET SUB-ASSY, ENGINE SUPPORT, FRONT LH

main51402-30100iYS132198709-199110

main51426-30140iGS131,MS13#..HT,SED198709-199110

main51426-30180iLS130198709-199110

51441COVER, ENGINE UNDER, NO.1

main51441-30090iLS130,MS132,YS132..4F,4H,4HC198709-199110

W(STEEL BUMPER)

main51441-30100iLS130,MS132,YS132..4F,4H,4HC198709-199110

W(URETHANE BUMPER)

51442BCOVER, AIR TANK, RH

main51442-30030iMS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN198709-199110

main51442-30040iGS131,MS133,135;MS132..SED..(4FC,5F)..(DLX,ROY,SAL)198709-198908

main51442-30050iMS133,135..HT198908-199110

51447ACOVER, AIR TANK, LH

main51447-30010iMS132..WG;LS130,MS132,133,YS132..(DLX,STD)..GEN198709-199110

main51447-30020iGS131,MS133,135;MS132..SED..(4FC,5F)..(DLX,ROY,SAL)198709-198908

main51447-30030iMS133,135..HT198908-199110

51450COVER ASSY, ENGINE UNDER, REAR

main51450-30010iLS130198709-199110

51467RETAINER, ENGINE UNDER COVER

main51467-30010×2iGS131,LS130,MS13#,YS132198709-199110

51477PLATE, ENGINE SIDE UNDER COVER, UPPER RH

main51477-30020iGS131,LS130,MS13#,YS132198709-199110

51478PLATE, ENGINE SIDE UNDER COVER, UPPER LH

main51478-30030iGS131,LS130,MS13#,YS132198709-199110

51511GUSSET, UPPER CONTROL ARM SUPPORT, RH

main51511-30030iGS131,LS130,MS13#,YS132198709-199110

51512GUSSET, UPPER CONTROL ARM SUPPORT, LH

main51512-30030iGS131,LS130,MS13#,YS132198709-199110

51513SUPPORT, UPPER CONTROL ARM, RH

main51513-30070iGS131,LS130,MS13#,YS132198709-199110

51514SUPPORT, UPPER CONTROL ARM, LH

main51514-30060iGS131,LS130,MS13#,YS132198709-199110

51518BRACKET, LOWER ARM, RH

main51518-30040iGS131,LS130,MS13#,YS132198709-199110

51519BRACKET, LOWER ARM, LH

main51519-30040iGS131,LS130,MS13#,YS132198709-199110

51611STOPPER, FRONT SUSPENSION BOUND, RH

main51611-30050iGS131,LS130,MS13#,YS132198709-199110

51612STOPPER, FRONT SUSPENSION BOUND, LH

main51612-30030iGS131,LS130,MS13#,YS132198709-199110

51657BRACKET, FRONT BUMPER ARM, RH

main51657-30010iGS131,LS130,MS13#,YS132198709-198907

main51657-30011iGS131,LS130,MS13#,YS132198907-199110

51658BRACKET, FRONT BUMPER ARM, LH

main51658-30010iGS131,LS130,MS13#,YS132198709-198907

main51658-30011iGS131,LS130,MS13#,YS132198907-199110

51681ABRACKET, FLEXIBLE HOSE

main51681-30060iGS131,LS130,MS13#,YS132198709-199110

51682APLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-30040iGS131,LS130,MS13#,YS132198709-199110

51963AHOOK, TRANSPORT, FRONT RH

main51963-30040iGS131,LS130,MS13#,YS132198709-199110

51964AHOOK, TRANSPORT, FRONT LH

main51964-30040iGS131,LS130,MS13#,YS132198709-199110

9011908677

main90119-08677

9011910495

main90119-10495

9015950153

main90159-50153

9017905004

main90179-05004

9095001411

main90950-01411

9095001647

main90950-01647

9095001648

main90950-01648

9095001649

main90950-01649

9165140820

main91651-40820

9165540820

main91655-40820

50 parts on this diagram · 3 diagrams in section
