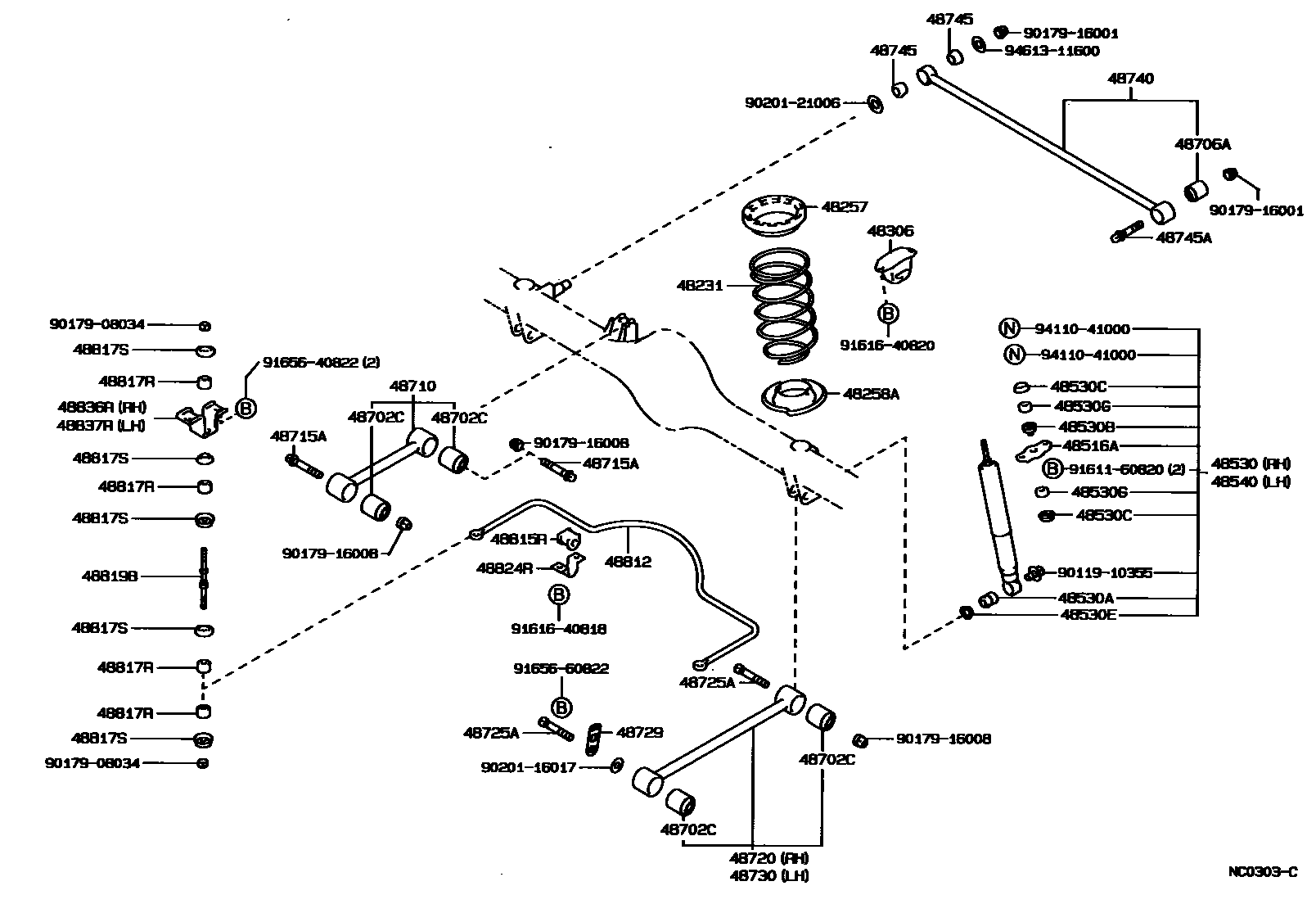

REAR SPRING & SHOCK ABSORBER
48231SPRING, COIL, REAR
48257INSULATOR, REAR COIL SPRING
48258AINSULATOR, REAR COIL SPRING, LOWER
48306BUMPER SUB-ASSY, REAR SPRING
48516ABRACKET, REAR SHOCK ABSORBER, UPPER
48530ABSORBER ASSY, SHOCK, REAR RH
sub48531-39786
sub48531-39796
sub48531-39826
sub48531-39836
TAXI SPEC
sub48531-39846
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
TAXI SPEC
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
LWR
UPR
48540ABSORBER ASSY, SHOCK, REAR LH
sub48531-39786
sub48531-39796
sub48531-39826
sub48531-39836
TAXI SPEC
sub48531-39846
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
48706ABUSH SUB-ASSY, REAR LATERAL CONTROL ROD
48710ARM ASSY, UPPER CONTROL
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
48725BUSH, LOWER CONTROL ARM
OUTER
INNER
48725ABOLT(FOR LOWER CONTROL ARM)
FRAME SIDE
HOUSING SIDE
48729PLATE, LOWER CONTROL ARM BOLT LOCK
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48812BAR, STABILIZER, REAR
HONG KONG SPEC
48815RBUSH, STABILIZER(FOR REAR)
HONG KONG SPEC
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
NO.1,T=1.2
NO.2,T=1.0
48819BBOLT, REAR STABILIZER
48824RBRACKET, STABILIZER(FOR REAR)
48836RBRACKET, REAR STABILIZER END, RH
48837RBRACKET, REAR STABILIZER END, LH
9011910355
main90119-10355
9017908034
main90179-08034
9017916001
main90179-16001
9017916008
main90179-16008
9020116017
main90201-16017
9020121006
main90201-21006
9161160820
main91611-60820
9161640818
main91616-40818
9161640820
main91616-40820
9165640822
main91656-40822
9165660822
main91656-60822
9411041000
main94110-41000
9461311600
main94613-11600
45 parts on this diagram · 3 diagrams in section
