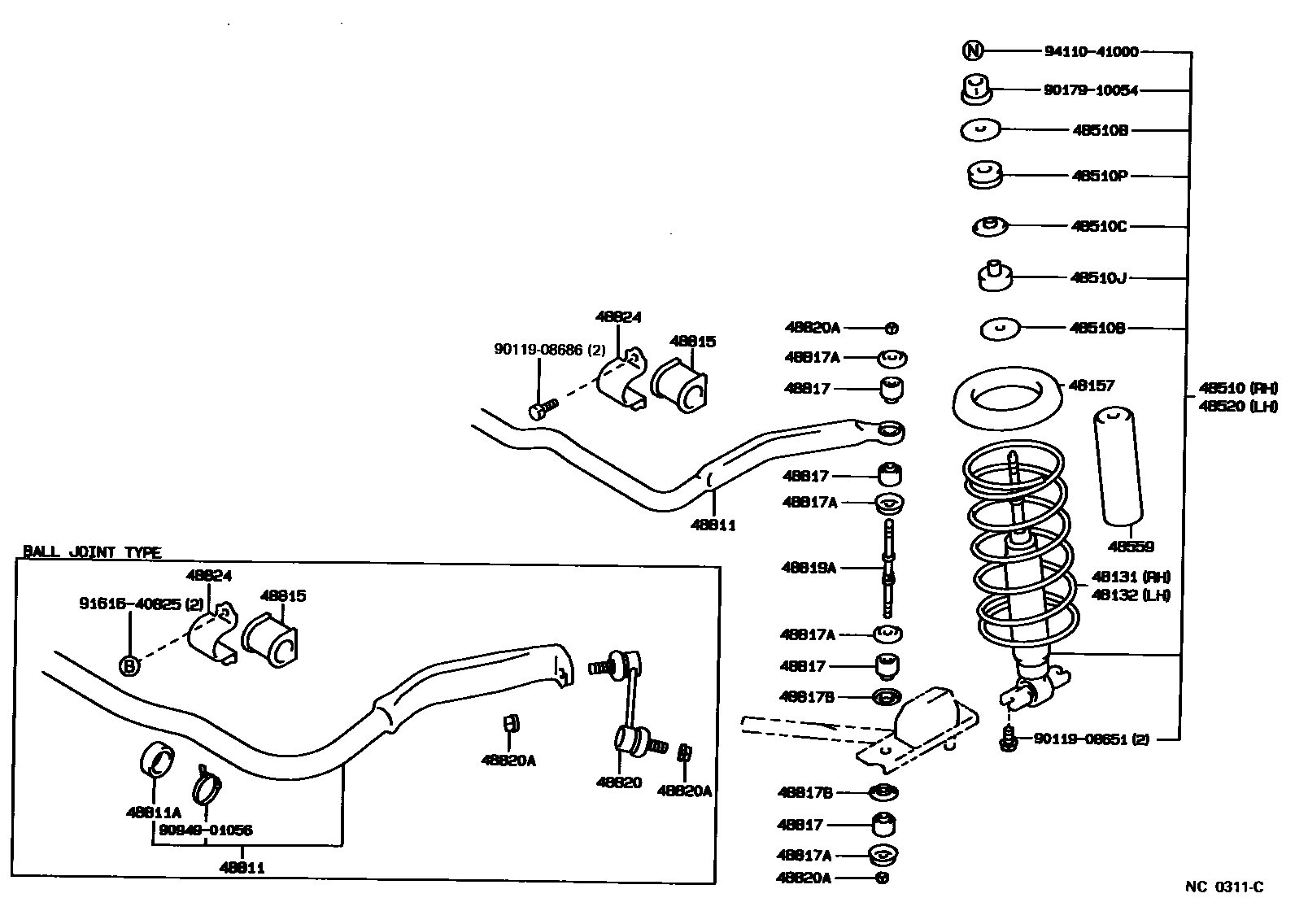

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-30610iGS131198709-199110

main48131-30620iYS132198709-199110

main48131-30640iMS132,133..HT,SED198709-199110

sub48131-30740

main48131-30650iMS135..RHD198709-199110

HONG KONG SPEC

sub48131-30750

main48131-30660iMS135198709-198908

sub48131-30700

main48131-30670iLS130198709-198908

main48131-30680iMS132..WG198908-199110

main48131-30700iMS135..GEN198908-199110

sub48131-30540

main48131-30720iMS135..GCC198908-199110

sub48131-30730

main48131-30730iMS133..GCC198908-199110

48132SPRING, FRONT COIL, LH

main48131-30610iGS131;MS132..WG198709-199110

main48131-30620iYS132198709-199110

main48131-30640iMS132,133..HT,SED198709-199110

sub48131-30740

main48131-30650iMS135..RHD198709-199110

HONG KONG SPEC

sub48131-30750

main48131-30660iMS135198709-198908

sub48131-30700

main48131-30670iLS130198709-198908

main48131-30680iMS132..WG198908-199110

main48131-30700iMS135..GEN198908-199110

sub48131-30540

main48131-30720iMS135..GCC198908-199110

sub48131-30730

main48131-30730iMS133..GCC198908-199110

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-30030iGS131,LS130,MS13#,YS132198709-199110

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-39055iLS130,MS132,YS132198709-199110

MARK 30010 OR 30020

sub48510-39056

main48510-39075iGS131,MS135198709-199110

sub48510-39076

main48510-39085iMS133198709-199110

HONG KONG SPEC

sub48510-39086

main48510-39095iLS130,YS132;MS132..DLX..GCC;MS132..LHD..SED..MTM..GEN198709-199110

MARK 30090 OR 30100,TAXI SPEC

sub48510-39096

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02072iGS131,LS130,MS13#,YS132198709-199110

LWR

main90948-02072iLS130,MS132,YS132..SED..MTM198908-199110

TAXI SPEC,LWR

main90948-02116iGS131,LS130,MS13#,YS132198709-199110

UPR

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02092iGS131,LS130,MS13#,YS132198709-199110

main90948-02092iLS130,MS132,YS132..SED..MTM198908-199110

TAXI SPEC

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01038iGS131,LS130,MS13#,YS132198709-199110

main90948-01038iLS130,MS132,YS132..SED..MTM198908-199110

TAXI SPEC

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90948-01037iGS131,LS130,MS13#,YS132198709-199110

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-39055iLS130,MS132,YS132198709-199110

MARK 30010 OR 30020

sub48510-39056

main48510-39075iGS131,MS135198709-199110

sub48510-39076

main48510-39085iMS133198709-199110

HONG KONG SPEC

sub48510-39086

main48510-39095iLS130,YS132;MS132..DLX..GCC;MS132..LHD..SED..MTM..GEN198709-199110

MARK 30090 OR 30100,TAXI SPEC

sub48510-39096

48559COVER, SHOCK ABSORBER, DUST

main48559-30020iGS131,LS130,MS13#,YS132198709-199110

main48559-30020iLS130,MS132,YS132..SED..MTM198908-199110

TAXI SPEC

48811BAR, STABILIZER, FRONT

main48811-30230iYS132198709-198908

TAXI SPEC

main48811-30240iLS130198709-199110

TAXI SPEC & W(POWER STEERING)

main48811-30240iYS132198709-198908

TAXI SPEC

main48811-30250iMS132..DLX..GCC;MS132..LHD..SED..MTM..GEN198709-199110

TAXI SPEC

main48811-30250iMS132..RHD..(DLX,STD)198709-198908

main48811-30260iYS132198709-199110

W(POWER STEERING)

main48811-30260iMS133,135..GCC198908-199110

main48811-30270iLS130198709-199110

W(POWER STEERING)

main48811-30310iGS131,MS133,135;MS132..(4FC,5F)..(DLX,ROY,SAL)198709-198908

W(POWER STEERING)

main48811-30310iGS131,MS132;MS133,135..GEN198908-199110

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-26002iYS132198709-199110

main90385-28002iLS130198709-199110

main90385-29002iGS131,MS132;MS133,135..GEN198709-199110

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30111iYS132198709-198908

TAXI SPEC

main48815-30131iLS130198709-199110

TAXI SPEC & W(POWER STEERING)

main48815-30131iYS132198709-198908

TAXI SPEC

main48815-30141iMS132..DLX..GCC;MS132..LHD..SED..MTM..GEN198709-199110

TAXI SPEC

main48815-30141iMS132..RHD..(DLX,STD)198709-198908

main48815-30151iMS133,135..GCC198908-199110

main48815-30151iYS132198709-199110

W(POWER STEERING)

main48815-30161iLS130198709-199110

W(POWER STEERING)

main48815-30171iGS131,MS132;MS133,135..GEN198908-199110

main48815-30171iGS131,MS133,135;MS132..(4FC,5F)..(DLX,ROY,SAL)198709-198908

W(POWER STEERING)

48817CUSHION, FRONT STABILIZER

main48817-30020iMS132..SED..MTM198709-199110

TAXI SPEC

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iMS132..RHD..(DLX,STD)198709-199110

TAXI SPEC

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iMS132..RHD..(DLX,STD)198709-199110

TAXI SPEC

48819ABOLT, FRONT STABILIZER

main48819-30020iMS132..RHD..(DLX,STD)198709-199110

TAXI SPEC

48820LINK ASSY, FRONT STABILIZER

main48810-30030iGS131,LS130,MS13#,YS132199106-199110

RH

sub48820-30020

main48820-30010iGS131,LS130,MS13#,YS132198709-199106

RH

main48820-30020iGS131,LS130,MS13#,YS132198709-199106

LH

main48820-30050iGS131,LS130,MS13#,YS132199106-199110

LH

sub48820-30010

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-08034iMS132..RHD..(DLX,STD)198709-199110

TAXI SPEC

main90179-08034iLS130,YS132198908-199110

TAXI SPEC & W(POWER STEERING)

main90179-12047iGS131,MS133,135;MS132..(4FC,5F)..(DLX,ROY,SAL)198709-199110

W(POWER STEERING)

48824BRACKET, STABILIZER, FRONT

main48824-30061iGS131,MS13#..4FC,4HC,5F198709-198908

TAXI SPEC OR W(POWER STEERING)

main48824-30061iGS131,LS130,MS13#,YS132198908-199110

9011908651

main90119-08651

9011908686

main90119-08686

9017910054

main90179-10054

9094901056

main90949-01056

9161640825

main91616-40825

9411041000

main94110-41000

26 parts on this diagram · 2 diagrams in section
