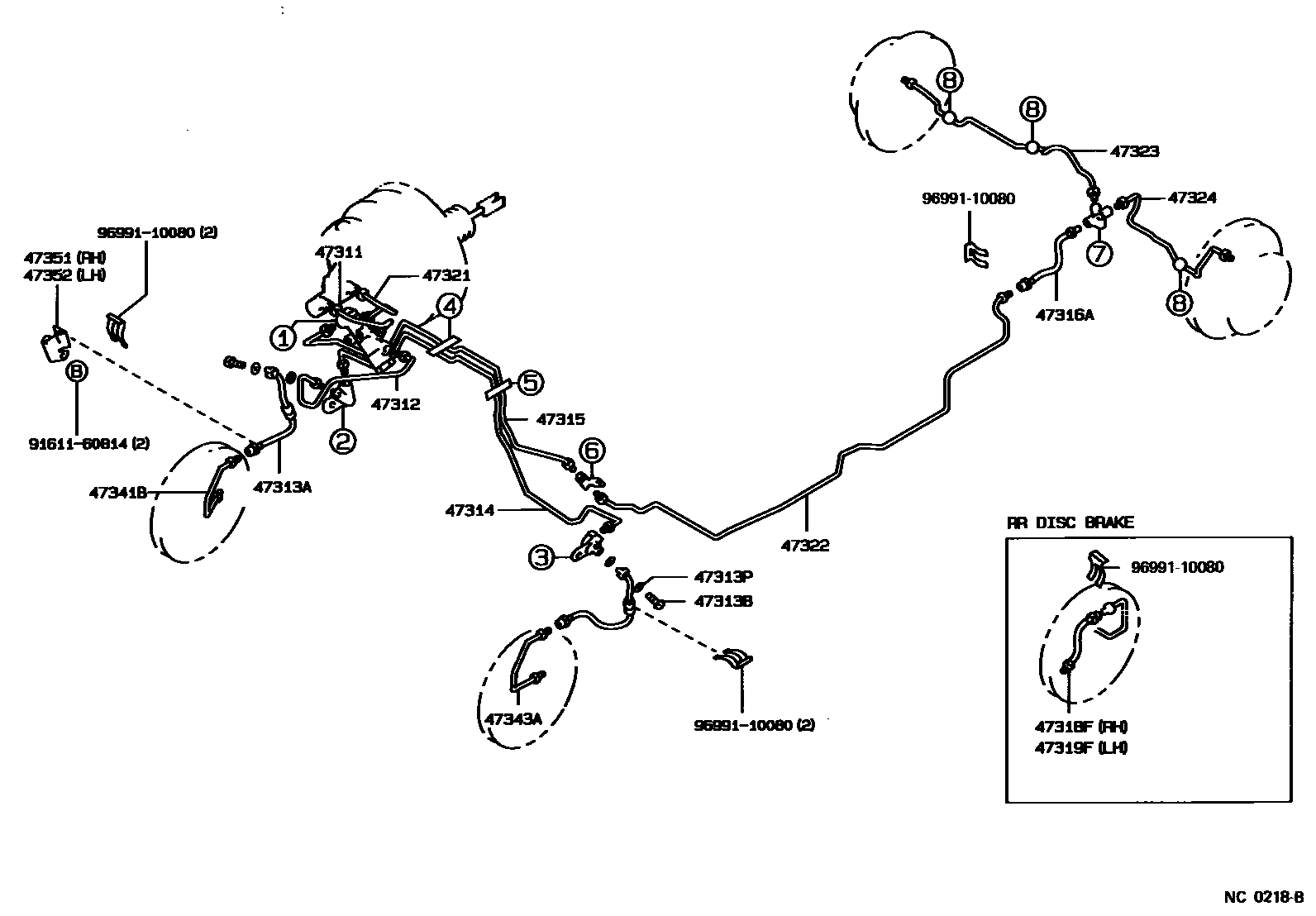

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1

47311TUBE, FRONT BRAKE, NO.1

main47311-30430iGS131,LS130,MS13#,YS132198709-198908

main47311-30431iGS131,LS130,MS13#,YS132198908-199110

47312TUBE, FRONT BRAKE, NO.2

main47312-30230iLS130..RHD198709-199110

main47312-30250iMS132,135..RHD;GS131,MS133..GEN198709-199110

main47312-30260iLS130,YS132..LHD198709-199110

main47312-30270iGS131,MS13#..LHD198709-199110

47313TUBE, FRONT BRAKE, NO.3

main47313-30200iLS130,MS13#,YS132..LHD198709-198801

sub47313-30201

main47313-30201iGS131,LS130,MS13#,YS132..LHD198801-199110

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02543iGS131,LS130,MS13#,YS132198709-199110

sub90947-02976

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iGS131,LS130,MS13#,YS132198709-199110

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iGS131,LS130,MS13#,YS132198709-199110

47314TUBE, FRONT BRAKE, NO.4

main47314-30200iLS130..RHD198709-198908

main47314-30201iLS130..4H198908-199110

main47314-30210iGS131,MS132,135..RHD198709-198908

main47314-30211iMS135..RHD;GS131,MS133..GEN198908-199110

47315TUBE, FRONT BRAKE, NO.5

main47315-30360iLS130..RHD198709-198908

main47315-30361iLS130..4H198908-199110

main47315-30370iGS131,MS132,135..RHD198709-198908

main47315-30371iGS131,MS133,135..RHD198908-199110

main47315-30380iLS130,YS132..LHD198709-199110

main47315-30390iGS131,MS13#..LHD198709-199110

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32855iLS130,MS132,YS132198709-199110

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96940-32105iMS132..ROY198709-199110

main96940-39906iGS131,MS133,135198709-198908

sub96940-39905

main96940-39956iGS131,MS133,135198908-199110

sub90947-02975

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96940-32105iMS132..ROY198709-199110

main96940-39906iGS131,MS133,135198709-198908

sub96940-39905

main96940-39956iGS131,MS133,135198908-199110

sub90947-02975

47321TUBE, REAR BRAKE, NO.1

main47321-30150iGS131,LS130,MS13#,YS132198709-198908

main47321-30151iGS131,LS130,MS13#,YS132198908-199110

47322TUBE, REAR BRAKE, NO.2

main47322-30100iGS131,MS133,135198709-199110

main47322-30110iLS130,MS132,YS132198709-199110

47323TUBE, REAR BRAKE, NO.3

main47323-30120iMS133,135198709-198803

main47323-30121iGS131,MS133,135198803-199110

main47323-30130iLS130,MS132,YS132..DLX,SAL,STD198709-199110

main47323-30140iMS132..ROY198709-199110

47324TUBE, REAR BRAKE, NO.4

main47324-30080iMS133,135198709-198803

main47324-30081iGS131,MS133,135198803-199110

main47324-30090iLS130,MS132,YS132..DLX,SAL,STD198709-199110

main47324-30100iMS132..ROY198709-199110

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-30030iGS131,LS130,MS13#,YS132198709-199110

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-30030iGS131,LS130,MS13#,YS132198709-199110

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-30210iGS131,LS130,MS13#,YS132198709-199110

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-30090iGS131,LS130,MS13#,YS132198709-199110

9161160814

main91611-60814

9699110080

main96991-10080

21 parts on this diagram · 5 diagrams in section
