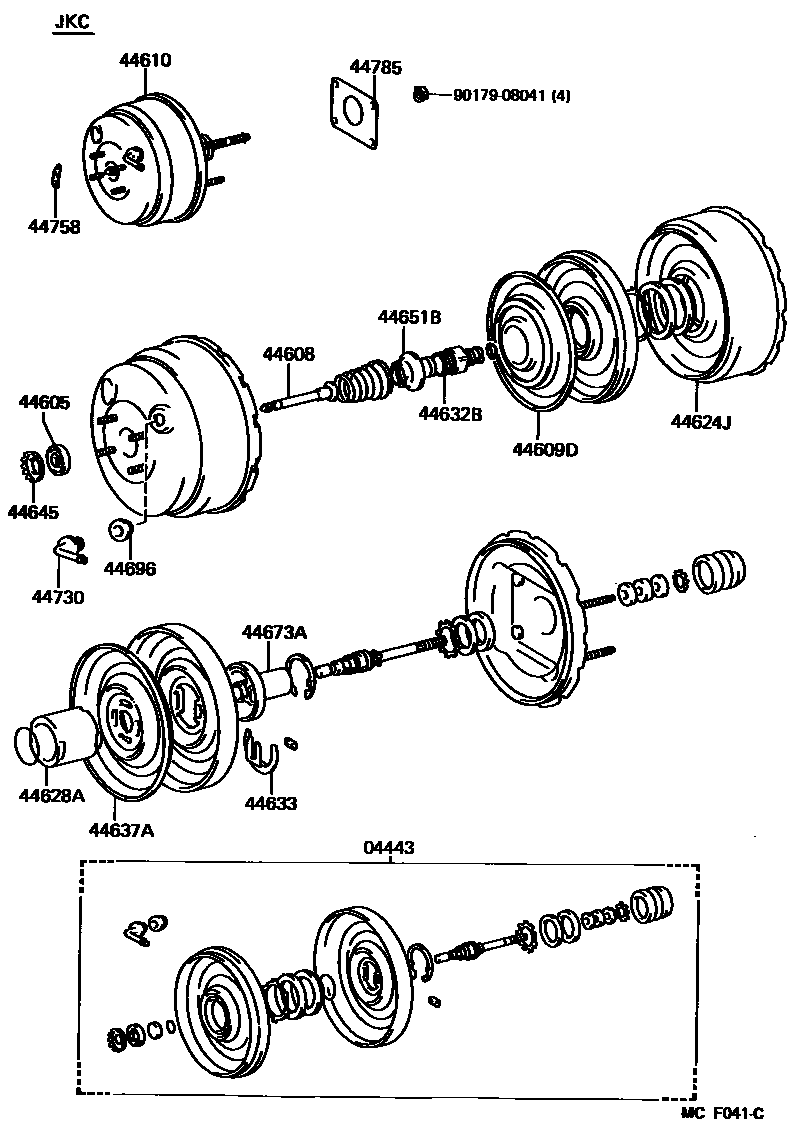

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

04443BOOSTER KIT, BRAKE

main04443-30500iMS132..LHD198709-198908

main04443-30500iMS132,135..RHD..ROY198709-198908

JKC

main04443-30510iMS135..GCC198805-198809

W(FR DISC BRAKE)

main04443-30510iMS133,135..LHD198709-198805

main04443-30530iYS132198709-199110

main04443-30570iLS130198709-198908

main04443-30571iLS130198908-199110

main04443-30580iMS132,135..RHD..ROY198709-198908

AISIN

main04443-30580iMS132..RHD..(DLX,SAL,STD)198709-198908

main04443-30600iMS135..RHD198809-198908

main04443-30610iMS133,135..LHD198805-198908

main04443-30620iGS131..ROY198908-199110

AISIN

main04443-30630iMS133,135..RHD198908-199110

main04443-30650iGS131..ROY198908-199110

JKC

main04443-30660iMS133,135..LHD198908-199110

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iYS132198709-199110

main44605-30350iGS131,MS133;MS132,135..LHD;MS132..RHD..ROY198709-199110

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-17090iGS131,MS133;MS132,135..LHD;MS132..RHD..ROY198709-198908

main44608-2B460iMS132,133;GS131,MS135..ROY198908-199110

main44608-32020iYS132198709-199110

44609DPLATE & RETAINER SUB-ASSY, BOOSTER

main44609-26380iMS133,135;MS132..LHD;MS132..RHD..ROY198709-198908

main44609-2B640iMS132,133;GS131,MS135..ROY198908-199110

44610BOOSTER ASSY, BRAKE

main44610-30590iYS132198709-199110

main44610-30600iMS132..LHD198709-198908

main44610-30601iMS132198908-199110

main44610-30610iMS135..GCC198805-198809

W(FR DISC BRAKE)

main44610-30610iMS133,135..LHD198709-198805

main44610-30650iLS130198709-199110

main44610-30660iMS132..RHD..(DLX,SAL,STD)198709-198908

main44610-30660iGS131,MS132..RHD..ROY198709-198908

AISIN

main44610-30661iGS131..ROY198908-199110

AISIN

main44610-30670iGS131,MS132..RHD..ROY198709-198908

JKC

main44610-30671iGS131..ROY198908-199110

JKC

main44610-30720iMS135..RHD198809-198908

main44610-30721iMS133,135..RHD198908-199110

main44610-30730iMS133,135..LHD198805-198908

main44610-30740iMS133,135..LHD198908-199110

44624JPLATE, BOOSTER CENTER

main44624-28300iMS133,135;MS132..LHD;MS132..RHD..ROY198709-198908

main44624-2B640iMS132,133;GS131,MS135..ROY198908-199110

44628ABODY, BOOSTER CENTER

main44628-20810iMS135..GCC;MS132,135..RHD..ROY198709-198908

44632BHUB, BOOSTER REACTION DISK

main44632-30550iGS131,MS132..RHD..ROY198709-198908

main44632-30730iMS135..GCC198805-198908

44633KEY, BOOSTER VALVE PLUNGER

main44633-20811iMS133,135;MS132..LHD;MS132..RHD..ROY198709-198908

main44633-28130iYS132198709-199110

main44633-2B460iMS132,133;GS131,MS135..ROY198908-199110

44637APLATE, BOOSTER DIAPHRAGM

main44637-28300iMS133,135;MS132..LHD;MS132..RHD..ROY198709-198908

main44637-2B460iMS132,133;GS131,MS135..ROY198908-199110

main44637-32040iYS132198709-199110

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iMS132,133;GS131,MS135,YS132..ROY,STD198709-199110

44651BNUT, BOOSTER

main44651-20810iGS131,MS133;MS132,135..LHD;MS132..RHD..ROY198709-198908

44673ABODY, BOOSTER VALVE

main44673-20810iGS131,MS133;MS132,135..LHD;MS132..RHD..ROY198709-198908

main44673-26410iMS132;GS131..ROY198908-199110

main44673-2B560iMS133,135198908-199110

main44673-32040iYS132198709-199110

44696GROMMET, CHECK VALVE

main90480-24015iGS131..ROY199101-199110

JKC BOOSTER

main90480-24439iMS135..RHD;MS132..RHD..(SAL,STD)198709-199110

AISIN BOOSTER

main90480-24517iGS131,MS133,135..RHD198709-199110

JKC BOOSTER

sub90480-24015

main90480-24517iMS132,YS132..LHD198709-199110

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iMS132..RHD..(DLX,SAL,STD)198709-199110

AISIN BOOSTER

main44730-14060iMS132..LHD198709-199110

sub44730-28010

sub90480-24015

main44730-14060iMS132,135..RHD..ROY198709-199110

JKC BOOSTER

sub44730-28010

sub90480-24015

main44730-24020iGS131,MS133,135..LHD198709-199110

main44730-28010iGS131..ROY199101-199110

JKC BOOSTER

main44730-30030iYS132198709-199110

sub44730-30050

44758BRACKET, VACUUM CHECK VALVE

main44758-30100iGS131,MS13#..RHD198709-199110

main44758-30110iMS132..LHD198709-199110

main44758-30130iYS132198709-199110

main44758-30140iGS131,MS133,135..LHD198709-199110

44785GASKET, BRAKE BOOSTER

main44785-30020iGS131,LS130,MS13#,YS132198709-199110

9017908041

main90179-08041

18 parts on this diagram · 10 diagrams in section
