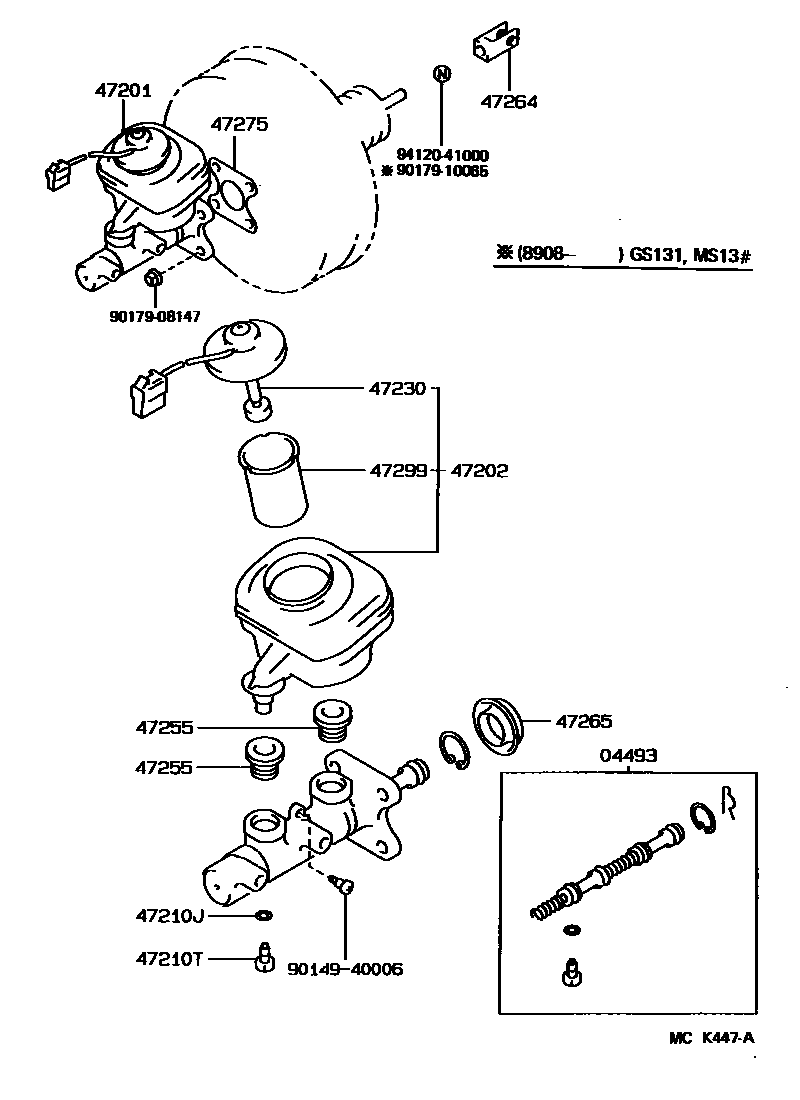

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-30180iLS130,YS132198709-199110

sub04493-22210

main04493-30190iGS131,MS13#198709-199110

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30300iYS132198709-199110

main47201-30310iGS131,MS13#198709-199110

main47201-30350iLS130198908-199110

sub47201-30300

main47201-30370iGS131,MS133,135..RHD198908-199110

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-30100iGS131,LS130,MS13#,YS132198709-199110

main47202-30110iLS130198908-199110

main47202-30120iGS131,MS133,135..RHD198908-199110

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iGS131,LS130,MS13#,YS132198709-199110

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iGS131,LS130,MS13#,YS132198709-199110

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-12080iGS131,LS130,MS13#,YS132198709-199110

sub84460-20110

main84460-30030iGS131,MS133,135..RHD198908-199110

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGS131,LS130,MS13#,YS132198709-199110

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iLS130,YS132198709-199110

main47264-30040iGS131,MS13#198709-198908

main47264-50010iGS131,MS13#198908-199110

47265BOOT, MASTER CYLINDER

main47265-20050iGS131,LS130,MS13#,YS132198709-199110

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iGS131,LS130,MS13#,YS132198709-199110

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iGS131,LS130,MS13#,YS132198709-199110

9014940006

main90149-40006

9017908147

main90179-08147

9017910065

main90179-10065

9412041000

main94120-41000

15 parts on this diagram · 1 diagram in section
