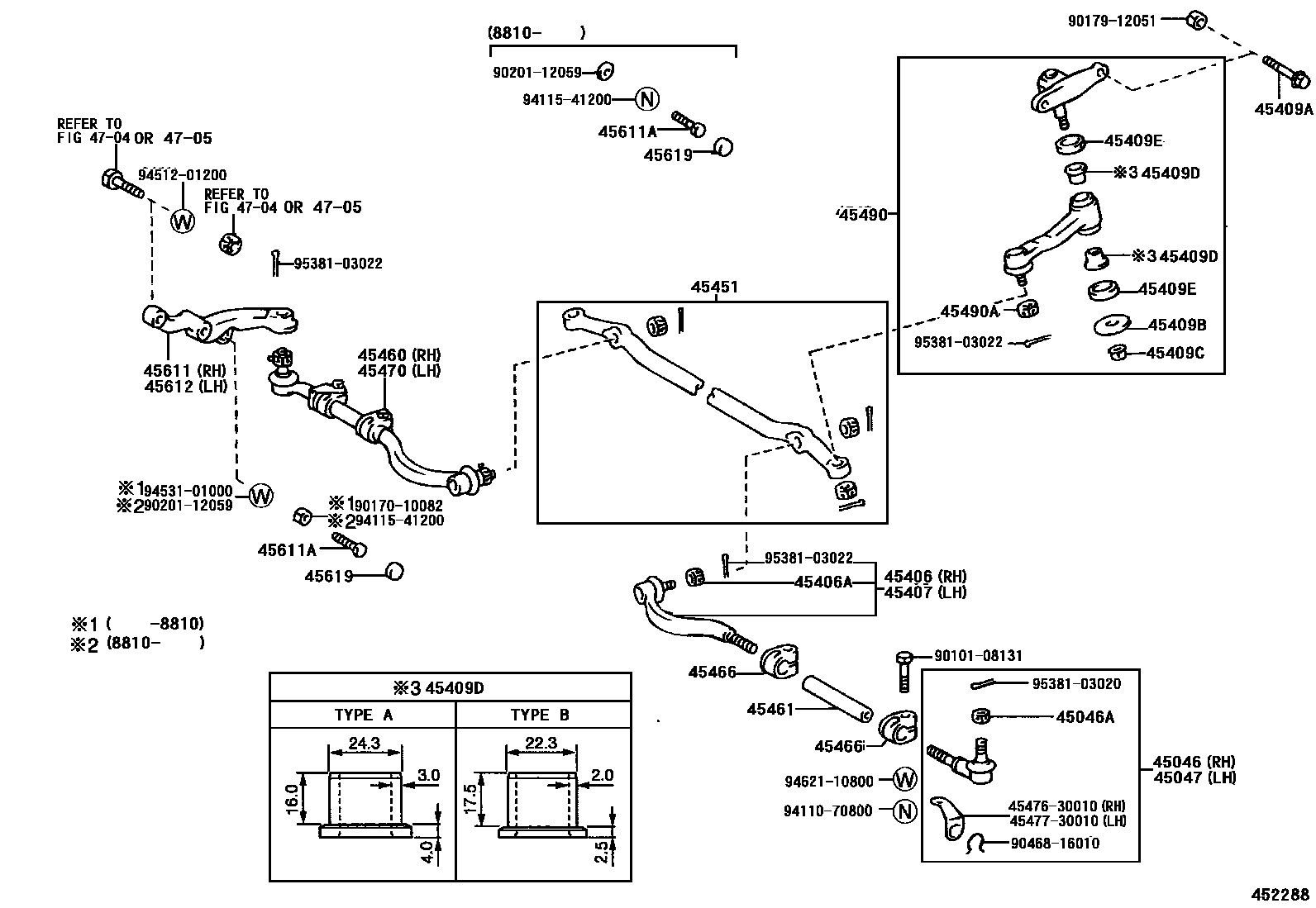

FRONT STEERING GEAR & LINK

0001 1 0002 1MANUAL STEERING 0003 1POWER STEERING 0004 1POWER STEERING

45046END SUB-ASSY, TIE ROD, RH

main45046-39155iLS130,MS132,YS132..(DLX,STD)..GEN198709-199110

main45046-39195iGS131,MS133,135;MS132..(4FC,5F)..(DLX,ROY,SAL)198709-199110

W(POWER STEERING)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iGS131,LS130,MS13#,YS132198709-199110

45047END SUB-ASSY, TIE ROD, LH

main45046-39155iLS130,YS132198709-199110

main45046-39195iGS131,MS133,135;MS132..(4FC,5F)..(DLX,ROY,SAL)198709-199110

W(POWER STEERING)

45406ROD SUB-ASSY, TIE, RH

main45406-39145iGS131,LS130,MS13#,YS132198709-199110

45406ANUT, CASTLE(FOR TIE ROD)

main90171-12028iGS131,LS130,MS13#,YS132198709-199110

45407ROD SUB-ASSY, TIE, LH

main45406-39145iLS130,MS132,YS132..(DLX,STD)..GEN198709-199110

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90105-12105iGS131,LS130,MS13#,YS132198709-199110

*12-1.25PX91.5-38

main90105-12120iGS131,LS130,MS13#,YS132198709-199110

*12-1.25PX104-44

45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

main90201-14519iGS131,LS130,MS13#,YS132198709-199110

45409CNUT(FOR IDLER ARM SUPPORT)

main94184-61400iGS131,LS130,MS13#,YS132198709-199110

45409DBUSH(FOR IDLER ARM)

main90385-18068iGS131,LS130,MS13#,YS132198709-199110

TYPE A:REFER TO ILLUSTRATION

main90386-18002iGS131,LS130,MS13#,YS132198709-199110

TYPE B:REFER TO ILLUSTRATION

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012iGS131,LS130,MS13#,YS132198709-199110

45451ROD, STEERING RELAY

main45451-39035iLS130,MS132..RHD..(DLX,STD)198709-199110

W(POWER STEERING)

main45451-39035iMS132,135..RHD..(ROY,SAL)198709-198908

main45451-39045iLS130,YS132..LHD198709-199110

W(POWER STEERING)

main45451-39045iGS131,MS132..LHD198709-199110

main45451-39055iLS130,MS132..RHD..(DLX,STD)198709-199110

main45451-39065iLS130,YS132..LHD198709-199110

main45451-39085iGS131,MS135..RHD198804-199008

sub45451-39115

main45451-39095iMS133,135..LHD198804-199008

sub45451-39125

main45451-39115iGS131,MS133,135..RHD199008-199110

main45451-39125iMS133,135..LHD199008-199110

45460ROD ASSY, TIE, RH

main45460-39265iLS130,MS132,YS132..(DLX,STD)..GEN198709-199110

W(POWER STEERING)

main45460-39275iLS130,YS132198709-199110

45461ROD, STEERING TIE

main45465-30031iGS131,MS13#198709-199110

W(POWER STEERING)

main45465-30041iLS130,MS132,YS132..(DLX,STD)..GEN198709-199110

45466CLAMP, TIE ROD END

main45466-22020iLS130,MS132,YS132..(DLX,STD)..GEN198709-199110

main45466-22020iGS131,LS130,MS13#,YS132198709-199110

INNER

main45466-30030iGS131,LS130,MS13#,YS132198709-199110

OUTER

45470ROD ASSY, TIE, LH

main45460-39275iLS130,YS132198709-199110

main45470-39065iLS130,MS132,YS132..(DLX,STD)..GEN198709-199110

W(POWER STEERING)

45490ARM ASSY, STEERING IDLER

main45490-39265iLS130,MS132..RHD..(DLX,STD)198709-199110

W(POWER STEERING)

main45490-39275iGS131,MS13#..LHD198709-199110

W(POWER STEERING)

main45490-39285iLS130,MS132..RHD..(DLX,STD)198709-199110

main45490-39295iLS130,YS132..LHD198709-199110

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iGS131,LS130,MS13#,YS132198709-199110

45611ARM, STEERING KNUCKLE, RH

main45611-30120iLS130,MS132,YS132..(DLX,STD)..GEN198709-198810

W(POWER STEERING)

sub45611-30121

sub45619-36010

sub90106-12007

sub90201-12059

sub94115-41200

main45611-30121iGS131,MS13#..DLX,ROY,SAL,SALEX198810-199110

W(POWER STEERING)

main45611-30130iLS130,MS132,YS132..(DLX,STD)..GEN198709-198810

sub45611-30131

sub45619-36010

sub90106-12007

sub90201-12059

sub94115-41200

main45611-30131iLS130,YS132198810-199110

45611ABOLT, KNUCKLE STOPPER

main90106-10032iLS130,MS13#,YS132198709-198810

main90106-12007iGS131,LS130,MS13#,YS132198810-199110

45612ARM, STEERING KNUCKLE, LH

main45612-30120iMS133,135;MS132..(4FC,5F)..(DLX,ROY,SAL)198709-198810

W(POWER STEERING)

sub45612-30121

sub45619-36010

sub90106-12007

sub90201-12059

sub94115-41200

main45612-30121iLS130,MS132,YS132..STD198810-199110

W(POWER STEERING)

main45612-30130iLS130,MS132,YS132..(DLX,STD)..GEN198709-198810

sub45612-30131

sub45619-36010

sub90106-12007

sub90201-12059

sub94115-41200

main45612-30131iLS130,YS132198810-199110

45619COVER, KNUCKLE STOPPER

main45619-14020iLS130,MS13#,YS132198709-198810

main45619-36010iGS131,LS130,MS13#,YS132198810-199110

4704

4547630010PLATE, TURNING STOPPER

main45476-30010

4547730010PLATE, STOPPER

main45477-30010

9010108131

main90101-08131

9017010082

main90170-10082

9017912051

main90179-12051

9020112059

main90201-12059

9046816010

main90468-16010

9411070800

main94110-70800

9411541200

main94115-41200

9451201200

main94512-01200

9453101000

main94531-01000

9462110800

main94621-10800

9538103020

main95381-03020

9538103022

main95381-03022
