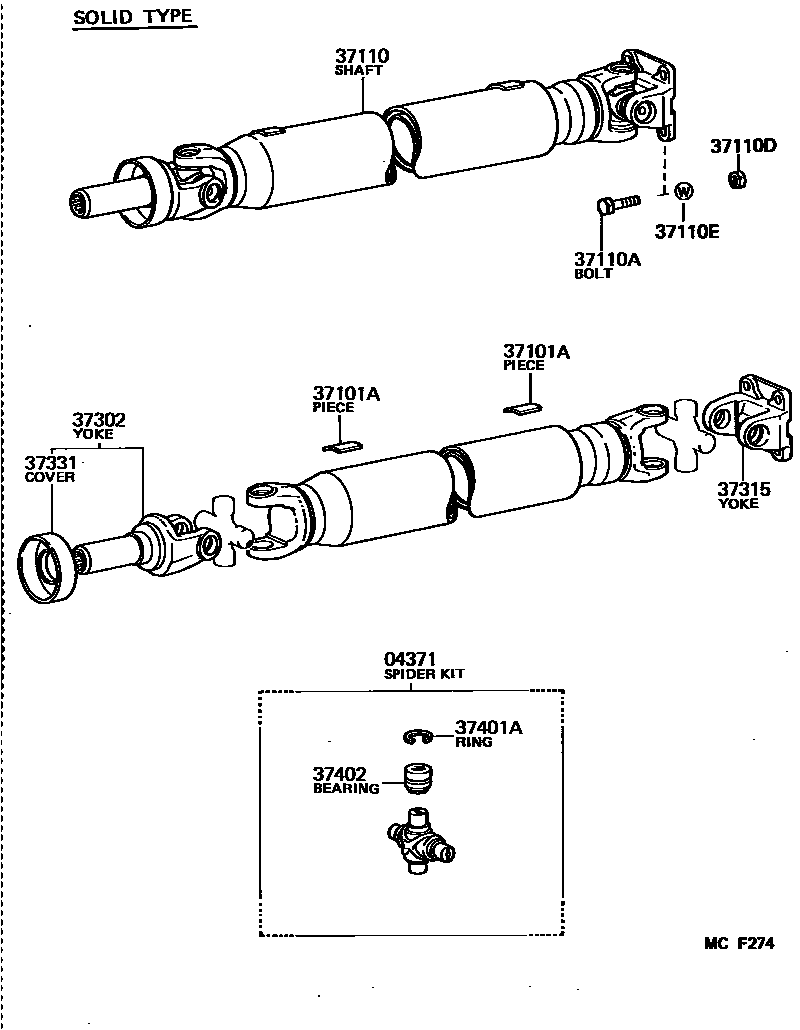

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1 0004 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-22010iMS132..DLX..GCC198709-198908

TAXI SPEC

main04371-22010iYS132..4H198709-199110

main04371-22020iLS130;MS132..LHD..SED..MTM..GEN198709-198908

TAXI SPEC,RED PAINTED

main04371-22020iYS132..4F198709-198908

RED PAINTED

main04371-30020iMS135198709-198802

sub04371-30021

main04371-30021iMS135198802-199110

sub04371-30040

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iMS132..ATM;LS130,MS133,135,YS132198808-198809

10G,L=20.7,TAXI SPEC

main90937-01132iMS132..DLX..GCC198709-199110

10G,L=20.7

main90937-01147iMS132..LHD..SED..MTM..GEN198808-198809

2G,T=2.0,TAXI SPEC

main90937-01147iLS130,MS13#,YS132198709-199110

2G,T=2.0

main90937-01148iMS132..DLX..GCC198808-198809

4G,T=2.0,TAXI SPEC

main90937-01148iLS130,MS13#,YS132198709-199110

4G,T=2.0

main90937-01149iMS132..ATM;LS130,MS133,135,YS132198808-198809

6G,L=12.4,TAXI SPEC

main90937-01149iMS132..ATM;LS130,MS133,135,YS132198709-199110

6G,L=12.4

main90937-01150iMS132..LHD..SED..MTM..GEN198709-199110

8G,L=16.6

main90937-01150iMS132..LHD..SED..MTM..GEN198808-198809

8G,L=16.6,TAXI SPEC

main90937-01151iMS132..ATM;LS130,MS133,135,YS132198709-199110

12G,L=24.9

main90937-01151iMS132..ATM;LS130,MS133,135,YS132198808-198809

12G,L=24.9,TAXI SPEC

main90937-01152iMS132..LHD..SED..MTM..GEN198709-199110

14G,L=29.0

main90937-01152iMS132..LHD..SED..MTM..GEN198808-198809

14G,L=29.0,TAXI SPEC

main90937-01311iMS132..LHD..SED..MTM..GEN198808-198809

3G,TAXI SPEC

main90937-01311iMS132..ATM;LS130,MS133,135,YS132198709-199110

3G

main90937-01312iMS132..DLX..GCC198808-198809

5G,TAXI SPEC

main90937-01312iMS132..LHD..SED..MTM..GEN198709-199110

5G

main90937-01313iMS132..DLX..GCC198808-198809

7G,L=14.4,TAXI SPEC

main90937-01313iMS132..ATM;LS130,MS133,135,YS132198709-199110

7G,L=14.4

main90937-01314iMS132..ATM;LS130,MS133,135,YS132198709-199110

9G,L=18.5

main90937-01314iMS132..ATM;LS130,MS133,135,YS132198808-198809

9G,L=18.5,TAXI SPEC

main90937-01342iMS135198908-199110

1G,SOLID TYPE

main90937-01343iMS135198908-199110

2G,SOLID TYPE

main90937-01344iMS135198908-199110

3G,SOLID TYPE

main90937-01345iMS135198908-199110

4G,SOLID TYPE

main90937-01346iMS135198908-199110

5G,SOLID TYPE

main90937-01347iMS135198908-199110

6G,SOLID TYPE

main90937-01348iMS135198908-199110

8G,SOLID TYPE

main90937-01349iMS135198908-199110

10G,SOLID TYPE

main90937-01350iMS135198908-199110

12G,SOLID TYPE

main90937-01351iMS135198908-199110

14G,SOLID TYPE

main90937-01352iMS135198908-199110

16G,SOLID TYPE

main90937-01353iMS135198908-199110

18G,SOLID TYPE

main90937-01355iMS135198908-199110

2G,T=1.0,L=12.7,SHELL TYPE

main90937-01356iMS135198908-199110

4G,T=1.0,L=25.4,SHELL TYPE

main90937-01357iMS135198908-199110

6G,T=2.0,SHELL TYPE

main90937-01358iMS135198908-199110

8G,T=2.0,SHELL TYPE

main90937-01359iMS135198908-199110

10G,T=2.0,SHELL TYPE

main90937-01360iMS135198908-199110

12G,T=2.0,SHELL TYPE

main90937-01361iMS135198908-199110

14G,T=2.0,SHELL TYPE

main90937-01362iMS135198908-199110

16G,T=2.0,SHELL TYPE

main90937-01363iMS135198908-199110

18G,T=2.0,SHELL TYPE

main90937-01365iMS135198908-199110

1G,T=1.0,L=6.4,SHELL TYPE

main90937-01385iMS135198908-199110

22G,T=2.0,L=46.6,SHELL TYPE

main90937-01386iMS135198908-199110

24G,T=2.0,L=50.8,SHELL TYPE

37110SHAFT ASSY, PROPELLER

main37110-30070iLS130,MS132,133198709-198806

sub37110-30071

main37110-30071iMS132..ATM;LS130,MS133198806-199110

main37110-30080iLS130;MS132..LHD..SED..MTM..GEN198709-198908

TAXI SPEC

main37110-30080iYS132..4F198709-199110

main37110-30080iLS130198908-199110

W(POWER STEERING)

main37110-30090iYS132..4H198709-199110

main37110-30100iMS132,133198809-199110

main37110-30110iMS135198908-199110

SOLID TYPE

main37110-30110iMS135198709-198908

main37110-30160iMS135198908-199110

SHEEL TYPE

sub37110-30161

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082iLS130,MS132,133,YS132198709-199110

*8-1.25PX25-12

main90105-10085iMS135198709-199110

*10-1.00PX27-13

37110DNUT (FOR PROPELLER SHAFT)

main90170-08015iLS130,MS132,133,YS132198709-199110

main90179-10059iMS135198709-199110

37110EWASHER (FOR PROPELLER SHAFT)

main90204-10002iMS135198709-199110

sub90560-10H00

main94512-00800iLS130,MS132,133,YS132198709-199110

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-20040iLS130;MS132..LHD..SED..MTM..GEN198709-198908

TAXI SPEC

main37302-20040iYS132198709-199110

main37302-24010iMS135198712-199110

main37302-30030iMS135198709-198712

sub37302-24010

main37302-35030iMS132,133198809-199110

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iLS130;MS132..LHD..SED..MTM..GEN198709-198908

TAXI SPEC

main37315-20020iYS132198709-199110

main37315-35040iMS135198709-199110

37331COVER, SLIDING SHAFT DUST

main37331-24010iMS135198711-199110

main37331-30010iMS132..DLX..GCC198808-198809

TAXI SPEC

main37331-30010iLS130,MS132,133,YS132198709-199110

main37331-40010iMS135198709-198711

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26038iMS133,135;MS132..MTM198712-199110

T=2.125,MARK 1

main90520-26040iMS132..4FC198712-199110

T=2.175,MARK 2

main90520-26041iMS132..4FC198712-199110

T=2.225,MARK 3

main90520-26042iMS132..4FC198712-199110

T=2.275,MARK 4

main90520-26043iMS135198712-199110

T=2.325,MARK 5

main90520-26044iMS13#198712-199110

T=2.375,MARK 6

main90520-26045iMS133,135;MS132..MTM198712-199110

T=2.425,MARK 7

main90520-26046iMS133,135;MS132..MTM198712-199110

T=2.475,MARK 8

main90520-26233iMS135198709-198712

T=1.50,OD=32.4

main90520-26234iMS135198709-198712

T=1.55

main90520-26235iMS135198709-198712

T=1.60

main90521-29070iMS132..DLX..GCC198709-198908

T=2.375-2.425,TAXI SPEC

main90521-29070iYS132..4F198709-199110

T=2.375-2.425

main90521-29071iLS130;MS132..LHD..SED..MTM..GEN198709-198908

T=2.425-2.475,TAXI SPEC

main90521-29071iYS132..4F198709-199110

T=2.425-2.475

main90521-29072iLS130;MS132..LHD..SED..MTM..GEN198709-198908

T=2.475-2.525,TAXI SPEC

main90521-29072iYS132..4F198709-199110

T=2.475-2.525

main90521-29073iLS130;YS132..4F198709-199110

T=2.525-2.575

main90521-29073iLS130198709-198908

T=2.525-2.575,TAXI SPEC

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22010iYS132..4H198709-199110

main37402-22010iMS132..DLX..GCC198709-198908

TAXI SPEC

main37402-22020iYS132..4F198709-199110

RED PAINTED

main37402-22020iLS130;MS132..LHD..SED..MTM..GEN198709-198908

TAXI SPEC

main37402-30010iMS135198709-198712

sub37402-30011

sub90520-26044

main37402-30011iMS132..MTM;MS133,135..ATM198809-198908

RED PAINTED

sub04371-60070

sub04371-60100

main37402-30011iMS135198712-199110

sub04371-60070

sub04371-60100

main37402-30020iMS135198709-198712

RED PAINTED

sub37402-30021

sub90520-26044

main37402-30021iMS132..4FC198712-199110

RED PAINTED

sub04371-60070

sub04371-60100

11 parts on this diagram · 4 diagrams in section
