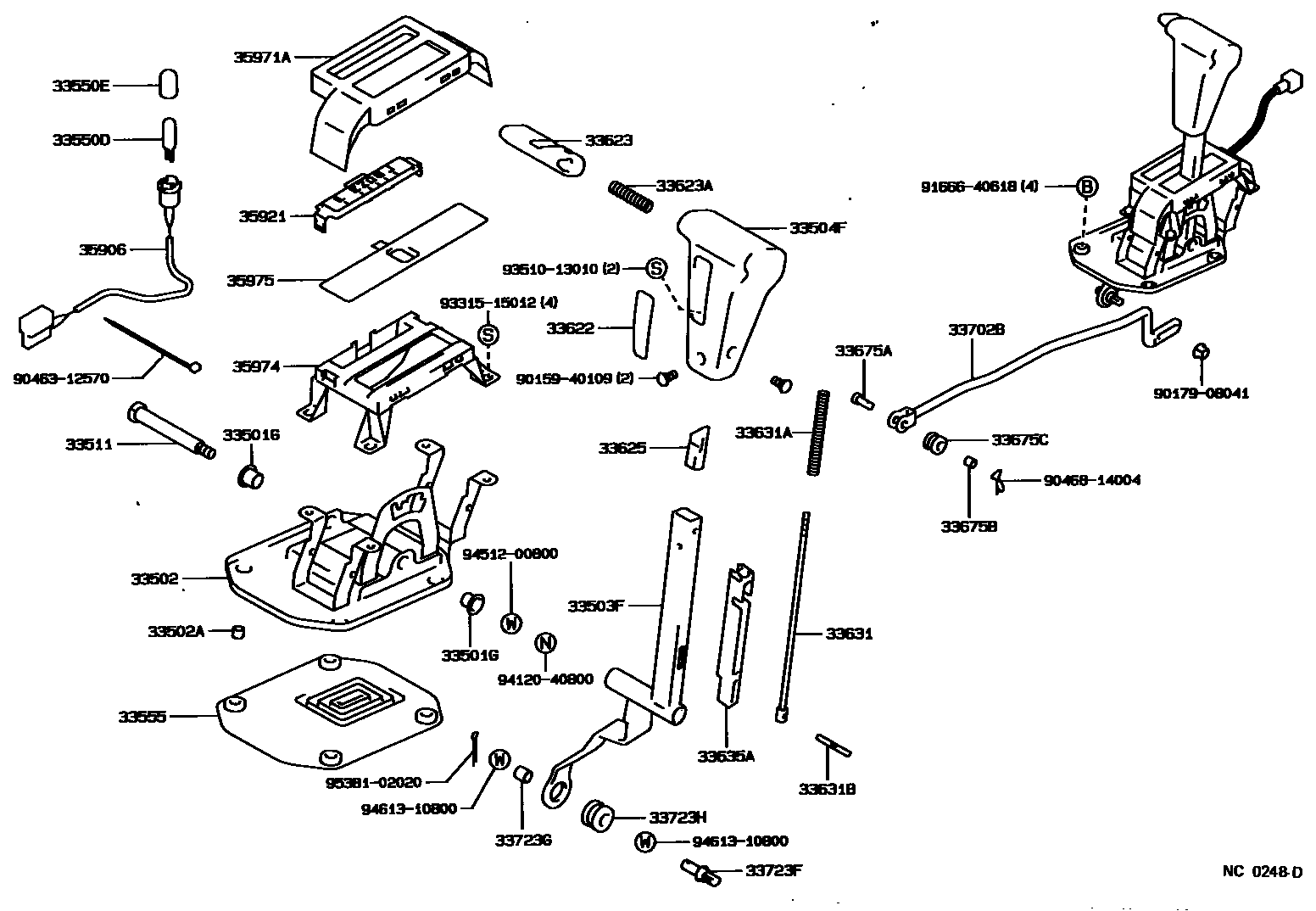

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-11003iMS13#..4FC198709-199110

main90386-11012iGS131,MS13#..4FC198809-198908

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-30211iMS132,135..RHD..4FC198709-198804

sub33502-30212

main33502-30212iGS131,MS132,135..RHD..4FC198804-198908

main33502-30221iMS13#..LHD..4FC198709-198804

sub33502-30222

main33502-30222iMS13#..LHD..4FC198804-198908

main33502-30240iGS131,MS133,135..RHD..4FC198908-199008

sub33502-30241

main33502-30241iGS131,MS133,135..RHD..4FC199008-199110

sub33502-30231

main33502-30250iMS13#..LHD..4FC198908-199110

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065iGS131,MS13#..4FC198709-199110

OD=8.8

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-30170iMS132,135..RHD..4FC198709-198809

main33503-30180iMS13#..LHD..4FC198709-198804

main33503-30190iGS131,MS132,135..RHD..4FC198809-198908

main33503-30200iMS13#..LHD..4FC198809-198908

main33503-30210iGS131,MS133,135..RHD..4FC198908-199110

main33503-30220iMS13#..LHD..4FC198908-199110

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14060-22iLS130,MS132,YS132..4F198709-199110

W(POWER STEERING),MAROON,TRIM3#

sub33504-14060

sub33504-14040

main33504-14060-54iLS130,MS132,YS132..4F198709-199110

W(POWER STEERING),DARK BLUE,TRIM8#

sub33504-14060

sub33504-14040

main33504-22101-22iLS130,MS132,YS132..4F198709-199110

MAROON,TRIM3#

sub33504-14040

sub33504-22101

main33504-22101-44iLS130,MS132,YS132..4F198709-199110

BLUE,TRIM8#

sub33504-14040

sub33504-22101

main33504-22111-22iMS132,133..5F..STD198709-199110

MAROON,TRIM3#

sub33504-14050

sub33504-22111

main33504-22111-54iMS132,133..5F..STD198709-199110

BLUE,TRIM8#

sub33504-14050

sub33504-22111

main33504-24010-52iMS132,133..5F..(DLX,SAL,SALEX)198709-198807

MAROON,TRIM3#

sub33504-24010

main33504-24010-52iMS132..5F..STD198709-198807

W(POWER STEERING),MAROON,TRIM3#

sub33504-24010

main33504-24010-54iMS132..5F..STD198709-198807

W(POWER STEERING),DARK BLUE,TRIM8#

sub33504-24010

main33504-24010-54iMS132,133..5F..(DLX,SAL,SALEX)198709-198807

DARK BLUE,TRIM8#

sub33504-24010

main33504-24010-59iGS131,MS132,133..5F..(SAL,SALEX)198709-199110

SABLE,TRIM4#

sub33504-24010

main33504-24010-D0iMS132..5F..STD198807-199110

W(POWER STEERING),MAROON,TRIM3#

sub33504-24010

main33504-24010-D0iGS131,MS132,133..5F..(DLX,ROY,SAL,SALEX)198807-199110

MAROON,TRIM3#

sub33504-24010

main33504-24010-J0iMS132..5F..STD198807-199110

W(POWER STEERING),DARK BLUE,TRIM8#

sub33504-24010

main33504-24010-J0iGS131,MS132,133..5F..(DLX,SAL,SALEX)198807-199110

DARK BLUE,TRIM8#

sub33504-24010

main33542-30140-02iMS132,135..RHD..4FC198709-198809

MAROON,TRIM3#

sub33542-30140

main33542-30140-04iMS132,135..RHD..4FC198709-198809

DARK BLUE,TRIM8#

sub33542-30140

main33542-30140-06iMS132,135..RHD..4FC198709-198809

SABLE,TRIM4#

sub33542-30140

main33542-30160-02iMS13#..LHD..4FC198709-198809

MAROON,TRIM3#

sub33542-30160

main33542-30160-04iMS13#..LHD..4FC198709-198809

DARK BLUE,TRIM8#

sub33542-30160

main33542-30160-06iMS13#..LHD..4FC198709-198809

SABLE,TRIM4#

sub33542-30160

main33542-30200-02iGS131,MS133,135..RHD..4FC198908-199110

MAROON,TRIM3#

sub33542-30200

main33542-30200-04iMS133,135..RHD..4FC198908-199110

BLUE,TRIM8#

sub33542-30200

main33542-30200-06iMS133,135..RHD..4FC198908-199110

SABLE,TRIM4#

sub33542-30200

main33542-30210-02iMS13#..LHD..4FC198908-199110

MAROON,TRIM3#

sub33542-30210

main33542-30210-04iMS13#..LHD..4FC198908-199110

BLUE,TRIM8#

sub33542-30210

main33542-30210-06iMS13#..LHD..4FC198908-199110

SABLE,TRIM4#

sub33542-30210

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-30341iMS13#..4FC198709-198809

main33511-30390iGS131,MS13#..4FC198809-199110

33550DBULB, POSITION INDICATOR LAMP

main99132-12034iGS131,MS13#..4FC198709-199110

12V 3.4W

33550ECAP, POSITION INDICATOR LAMP

main90339-09005iMS13#..4FC198709-198809

33555BOOT, SHIFT LEVER

main33555-30160iMS13#..4FC198709-198804

sub33555-30161

main33555-30161iMS13#..LHD..4FC198804-199110

33622COVER, SHIFT LEVER KNOB, NO.1

main33622-30040-22iMS132,135..RHD..4FC198709-198809

MAROON,TRIM3#

sub33622-30040

main33622-30040-24iMS132,135..RHD..4FC198709-198809

DARK BLUE,TRIM8#

sub33622-30040

main33622-30040-26iMS132,135..RHD..4FC198709-198809

SABLE,TRIM4#

sub33622-30040

main33622-30050-22iMS13#..LHD..4FC198709-198809

MAROON,TRIM3#

sub33622-30050

main33622-30050-24iMS13#..LHD..4FC198709-198809

DARK BLUE,TRIM8#

sub33622-30050

main33622-30050-36iMS13#..LHD..4FC198709-198809

SABLE,TRIM4#

sub33622-30050

main33622-30080-02iGS131,MS133,135..RHD..4FC198908-199110

MAROON,TRIM3#

sub33622-30080

main33622-30080-04iMS133,135..RHD..4FC198908-199110

BLUE,TRIM8#

sub33622-30080

main33622-30080-06iMS133,135..RHD..4FC198908-199110

SABLE,TRIM4#

sub33622-30080

main33622-30090-02iMS13#..LHD..4FC198908-199110

MAROON,TRIM3#

sub33622-30090

main33622-30090-04iMS13#..LHD..4FC198908-199110

BLUE,TRIM8#

sub33622-30090

main33622-30090-06iMS13#..LHD..4FC198908-199110

SABLE,TRIM4#

sub33622-30090

33623BUTTON, SHIFT LEVER KNOB

main33623-30070-02iGS131,MS132,135..RHD..4FC198709-198908

MAROON,TRIM3#

sub33623-30070

main33623-30070-04iMS132,135..RHD..4FC198709-198908

BLUE,TRIM8#

sub33623-30070

main33623-30070-06iMS132,135..RHD..4FC198709-198908

SABLE,TRIM4#

sub33623-30070

main33623-30080-02iMS13#..LHD..4FC198709-198908

MAROON,TRIM3#

sub33623-30080

main33623-30080-04iMS13#..LHD..4FC198709-198908

BLUE,TRIM8#

sub33623-30080

main33623-30080-06iMS13#..LHD..4FC198709-198908

SABLE,TRIM4#

sub33623-30080

main33623-30090-02iGS131,MS133,135..RHD..4FC198908-199110

MAROON,TRIM3#

sub33623-30090

main33623-30090-04iMS133,135..RHD..4FC198908-199110

BLUE,TRIM8#

sub33623-30090

main33623-30090-06iMS133,135..RHD..4FC198908-199110

SABLE,TRIM4#

sub33623-30090

main33623-30100-02iMS13#..LHD..4FC198908-199110

MAROON,TRIM3#

sub33623-30100

main33623-30100-04iMS13#..LHD..4FC198908-199110

BLUE,TRIM8#

sub33623-30100

main33623-30100-06iMS13#..LHD..4FC198908-199110

SABLE,TRIM4#

sub33623-30100

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009iGS131,MS13#..4FC198709-199110

33625SLEEVE, SHIFT LEVER KNOB

main33625-30020iGS131,MS13#..4FC198908-199110

main33625-32010iMS13#..4FC198709-198809

33631ROD, DETENT

main33631-16020iMS13#..4FC198709-199110

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07082iGS131,MS13#..4FC198809-198908

main90501-08017iMS13#..4FC198709-199110

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90256-04003iGS131,MS13#..4FC198709-199110

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-30040iGS131,MS13#..4FC198709-198908

main33635-30050iGS131,MS13#..4FC198908-199110

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main90240-08120iGS131,MS13#..4FC198709-199110

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iMS135..4FC;GS131,MS132,133..ATM198709-199110

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17177iMS13#..4FC198709-199110

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-30090iGS131,MS132,133..4FC198709-199110

main33702-30200iMS135..4FC198709-199110

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010iGS131,MS13#..4FC198709-199110

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005iGS131,MS13#..4FC198709-199110

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main90480-17177iGS131,MS13#..4FC198709-199110

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12050iGS131,MS13#..4FC198709-198908

main35906-30050iGS131,MS13#..4FC198908-199110

35921PLATE, CONTROL POSITION INDICATOR

main35921-30330iMS132,135..RHD..4FC198709-198809

main35921-30340iMS13#..LHD..4FC198709-198809

main35921-30350iGS131,MS13#..RHD..4FC198809-199110

main35921-30360iMS13#..LHD..4FC198809-199110

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-30200iGS131,MS13#..4FC198709-198908

sub35971-30230

main35971-30220iGS131,MS133,135..RHD..4FC198908-199110

main35971-30230iMS13#..LHD..4FC198908-199110

35974HOUSING, POSITION INDICATOR, LOWER

main35974-30060iGS131,MS13#..4FC198709-199110

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-30100iMS132,135..RHD..4FC198709-198809

main35975-30110iMS13#..LHD..4FC198709-198809

main35975-30120iGS131,MS132,135..RHD..4FC198809-198908

main35975-30130iMS13#..LHD..4FC198809-198908

main35975-30140iGS131,MS133,135..RHD..4FC198908-199110

main35975-30150iMS13#..LHD..4FC198908-199110

9015940109

main90159-40109

9017908041

main90179-08041

9046312570

main90463-12570

9046814004

main90468-14004

9166640618

main91666-40618

9331515012

main93315-15012

9351013010

main93510-13010

9412040800

main94120-40800

9451200800

main94512-00800

9461310800

main94613-10800

9538102020

main95381-02020

40 parts on this diagram · 3 diagrams in section
