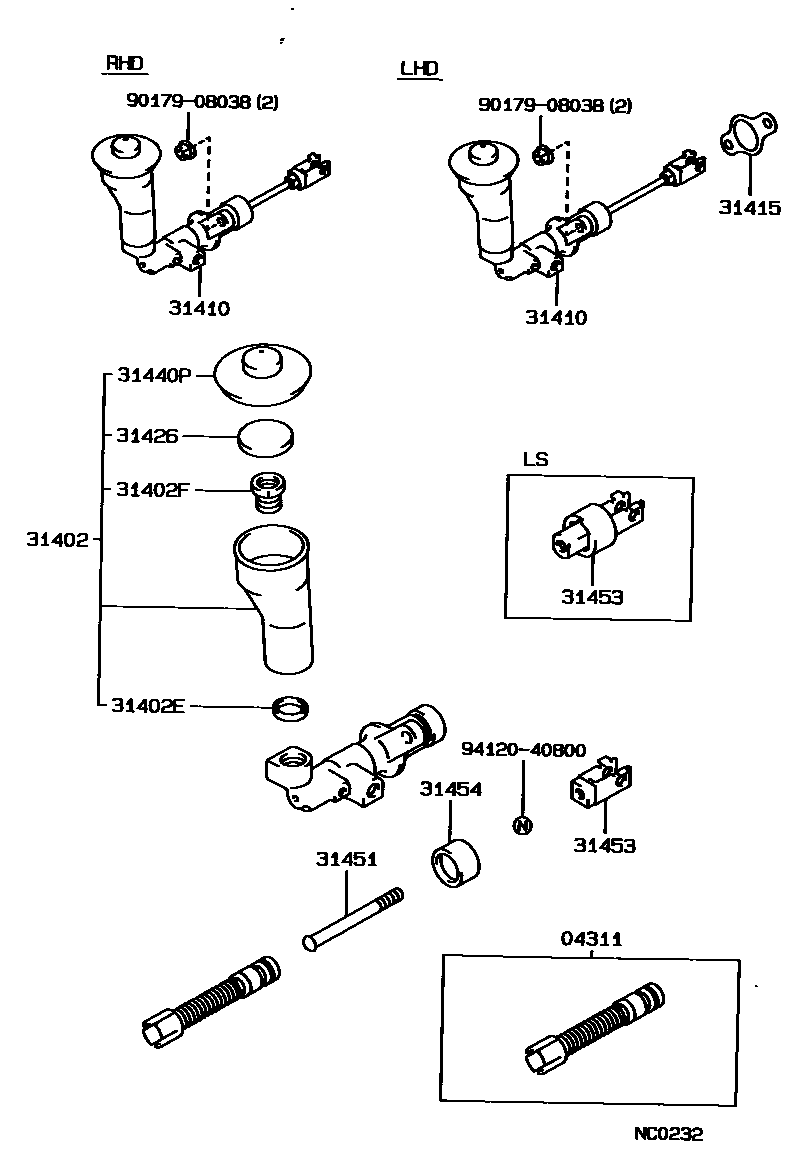

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-10011iLS130,MS132,133,YS132..MTM198709-198801

sub04311-10012

main04311-22050iGS131,LS130,MS132,133,YS132..MTM198801-199110

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30070iGS131,LS130,MS132,133,YS132..MTM198709-199110

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iGS131,LS130,MS132,133,YS132..MTM198709-199110

31402FBOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iGS131,LS130,MS132,133,YS132..MTM198709-199110

31410CYLINDER ASSY, CLUTCH MASTER

main31410-30230iMS132..RHD..5F198709-198811

sub31410-30231

main31410-30231iMS132..RHD..5F198811-198908

main31410-30240iMS132,133,YS132..LHD..MTM198709-198811

sub31410-30241

main31410-30241iMS132,133,YS132..LHD..MTM198811-199110

sub31410-30261

main31410-30250iLS130..RHD198709-198811

sub31410-30251

main31410-30251iGS131,LS130..RHD..MTM198811-199110

sub31410-30282

main31410-30260iLS130..LHD198709-198811

sub31410-30261

main31410-30261iGS131,LS130..LHD198811-199110

main31410-30300iMS133..5F..GEN198908-199110

sub31410-30251

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iGS131,LS130,MS132,133,YS132..LHD..MTM198709-199110

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGS131,LS130,MS132,133,YS132..MTM198709-199110

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGS131,LS130,MS132,133,YS132..MTM198709-199110

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iGS131,LS130..RHD..MTM198709-199110

main31451-30120iMS132..RHD..5F;GS131,LS130..LHD198709-199110

main31451-30140iMS133..5F..GEN198908-199110

main31451-35051iMS132,133,YS132..LHD..MTM198709-199110

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-16011iGS131,LS130..MTM198709-198904

sub31404-16012

main31404-16012iGS131,LS130..MTM198904-199110

sub31404-22020

main31453-10020iMS132,133,YS132..MTM198709-199110

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iGS131,LS130,MS132,133,YS132..MTM198709-199110

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
