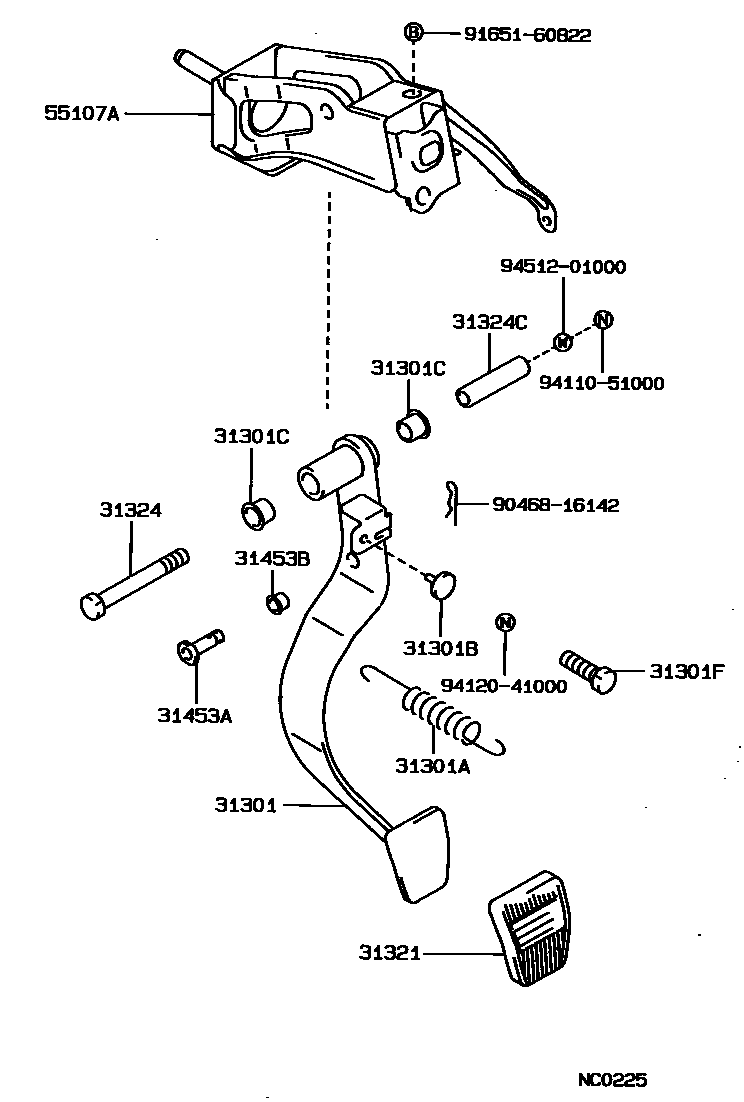

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1 0005 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-30200iLS130,MS132,133..RHD..MTM198709-199110

main31301-30220iGS131,LS130,MS132,133,YS132..LHD..MTM198709-199110

main31310-30010iGS131..5F..ROY198812-199110

31301ASPRING(FOR CLUTCH PEDAL)

main90506-12055iGS131,LS130,MS132,133,YS132..MTM..(DLX,SAL,SALEX,STD)198709-199110

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iGS131,LS130,MS132,133,YS132..MTM198709-199110

sub90541-06036

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGS131,LS130,MS132,133,YS132..MTM198709-199110

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGS131,LS130,MS132,133,YS132..MTM198709-199110

31321PAD, CLUTCH PEDAL

main31321-14020iGS131,LS130,MS132,133,YS132..MTM198709-199110

31324SHAFT, CLUTCH PEDAL

main90101-10039iGS131,LS130,MS132,133,YS132..LHD..MTM198709-199110

main90101-10164iGS131,LS130,MS132,133..RHD..MTM198709-199110

31324CCOLLAR(FOR CLUTCH PEDAL SHAFT)

main90387-10003iGS131,LS130,MS132,133,YS132..LHD..MTM198709-199110

main90387-10105iGS131,LS130,MS132,133..RHD..MTM198709-199110

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08018iGS131,LS130,MS132,133,YS132..MTM198709-199110

L=29.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iGS131,LS130,MS132,133,YS132..MTM198709-199110

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-30150iLS130,MS132,133..RHD..MTM198709-199110

main55107-30160iGS131,LS130,MS132,133,YS132..LHD..MTM198709-199110

main55107-30170iGS131..5F198812-198908

main55107-30180iGS131..5F..ROY198908-199110

9046816142

main90468-16142

9165160822

main91651-60822

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

16 parts on this diagram · 4 diagrams in section
