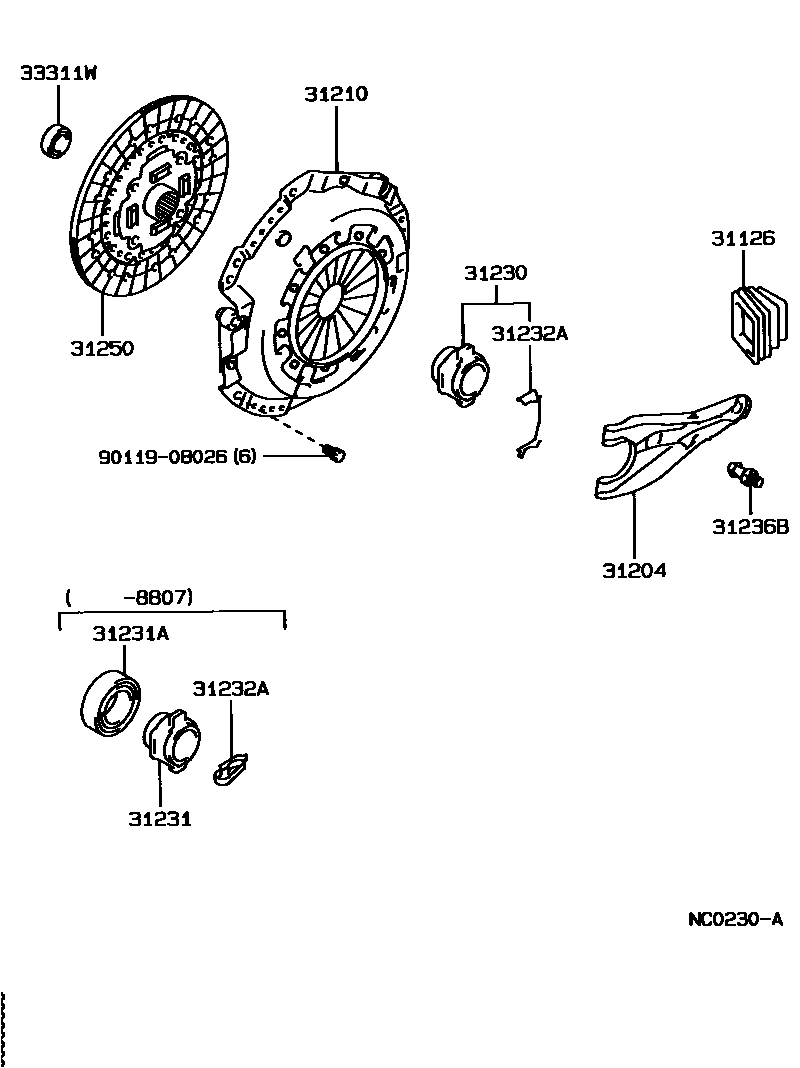

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYS132198709-199110

main31126-20070iGS131,LS130,MS132,133..MTM198709-199110

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYS132198709-199110

main31204-20080iMS132,133..MTM198709-198807

main31204-20090iLS130198709-198807

main31204-22040iMS132,133..MTM198807-199110

main31204-35050iGS131,LS130..MTM198807-199110

31210COVER ASSY, CLUTCH

main31210-14122iMS132,133..MTM198709-198908

sub31210-30240

main31210-14130iYS132198709-198808

sub31210-35090

main31210-22100iGS131..5F198812-199110

sub31210-22101

main31210-28020iLS130198808-198908

sub31210-28021

main31210-30240iMS132,133..MTM198908-199110

sub31210-30241

main31210-35090iLS130,YS132198808-199110

sub31210-22100

main31210-36029iLS130198709-198808

sub31210-36200

31230BEARING ASSY, CLUTCH RELEASE

main31230-35070iLS130198807-199110

sub31230-35071

main31230-35090iGS131,MS132,133,YS132..MTM198807-199110

sub31230-35091

31231HUB, CLUTCH RELEASE BEARING

main31231-20090iLS130198709-198807

main31231-36070iMS132,133,YS132..MTM198709-198807

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLS130,MS132,133,YS132..MTM198709-198807

31232ACLIP, RELEASE BEARING HUB

main31232-22010iLS130,MS132,133,YS132..MTM198709-198807

main31232-35020iGS131,LS130,MS132,133,YS132..MTM198807-199110

NSK BEARING

main31232-35030iLS130198807-199110

KOYO BEARING

main31232-35040iGS131,MS132,133,YS132..MTM198911-199110

KOYO BEARING

31236BSUPPORT, RELEASE FORK

main31236-30060iGS131,LS130,MS132,133,YS132..MTM198709-199110

31250DISC ASSY, CLUTCH

main31250-14171iGS131..5F198812-198908

sub31250-14172

main31250-22230iGS131..5F198908-199006

sub31250-22231

main31250-22231iGS131..5F199006-199110

sub31250-22360

main31250-22260iMS132,133..MTM198808-199110

sub31250-22261

main31250-25122iYS132198809-199110

sub31250-20240

main31250-26091iYS132198709-198809

sub31250-25122

main31250-30360iLS130198709-198807

sub31250-35190

main31250-35190iLS130198807-199110

sub31250-35221

main31250-36290iMS132,133..MTM198709-198805

sub31250-36291

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLS130,MS132,133,YS132..MTM198709-199110

sub90363-12024

main90363-12003iGS131..5F198812-199110

9011908026

main90119-08026

11 parts on this diagram · 2 diagrams in section
