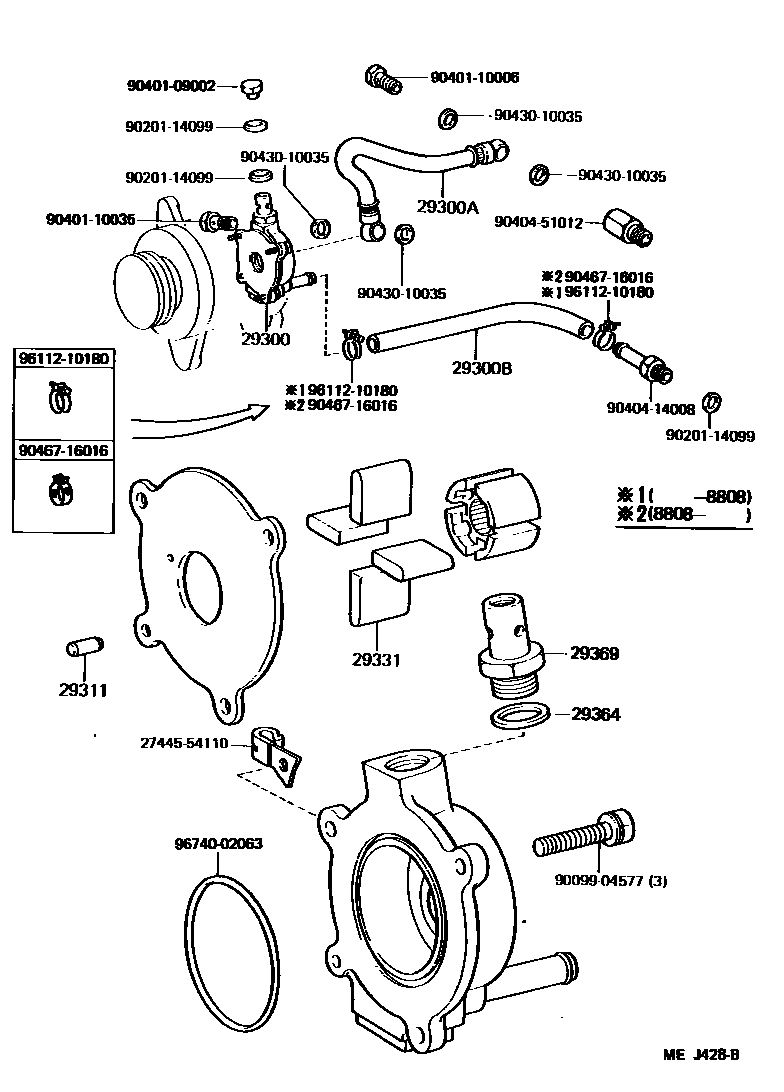

VACUUM PUMP

0001 1 0002 1 0003 1

29300PUMP ASSY, VACUUM

main29300-54050i2L..LS130¥47,700198709-198908

main29300-54100i2L..LS130¥41,300198908-199110

sub29300-54130¥41,500

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i2L..LS130¥2,760198709-198908

main90923-02110i2L..LS130¥5,100198908-199110

sub90923-02118¥7,000

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L..LS130¥1,190198808-198809

main29611-54050i2L..LS130¥2,050198908-199110

main90923-02076i2L..LS130¥1,000198709-198808

main90923-02089i2L..LS130¥2,440198809-198908

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L..LS130¥140198709-198908

29331BLADE, VACUUM PUMP, A

main29331-56070i2L..LS130198709-198908

main29331-64030i2L..LS130198908-199110

29364WASHER, VACUUM PUMP

main29364-66010i2L..LS130¥180198709-199110

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L..LS130198709-198908

main29369-64030i2L..LS130198908-199110

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099¥230

9040109002

main90401-09002¥260

9040110006

main90401-10006¥260

9040110035

main90401-10035¥260

9040414008

main90404-14008¥760

9040451012

main90404-51012¥180

9043010035

main90430-10035¥190

9046716016

main90467-16016¥240

9611210180

main96112-10180¥140

9674002063

main96740-02063¥0

19 parts on this diagram · 3 diagrams in section
