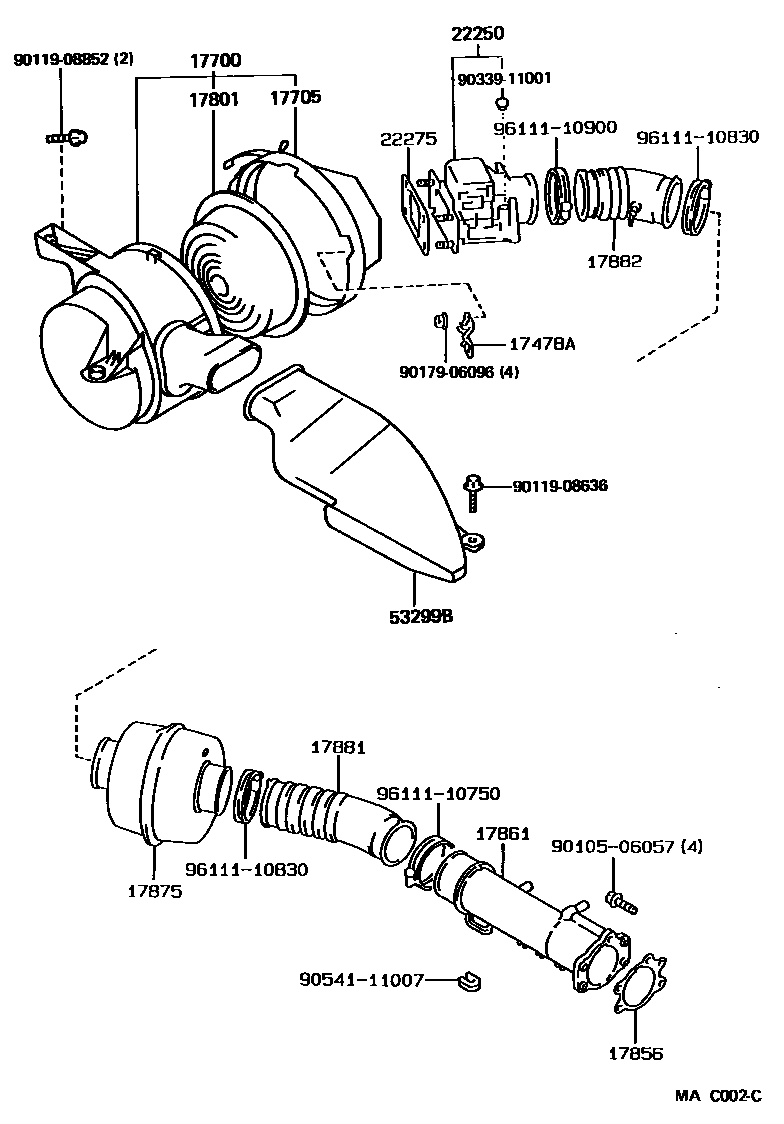

AIR CLEANER
17700CLEANER ASSY, AIR
sub17700-43170
W(PRE CLEANER)
W(HOT AIR INTAKE) & W(PRE CLEANER)
W(HOT AIR INTAKE)
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17856GASKET, AIR INTAKE FLANGE
17861CONNECTOR, INTAKE AIR
17875PIPE, INTAKE AIR CONNECTOR
17881HOSE, AIR CLEANER, NO.1
NO.1
NO.2
17882HOSE, AIR CLEANER, NO.2
NO.1
NO.2
22250METER ASSY, INTAKE AIR FLOW
22275GASKET, AIR FLOW METER
53299BDUCT, COOL AIR INTAKE
sub53299-30170
9010506057
main90105-06057
9011908636
main90119-08636
9011908852
main90119-08852
9017906096
main90179-06096
9033911001
main90339-11001
9054111007
main90541-11007
9611110750
main96111-10750
9611110830
main96111-10830
9611110900
main96111-10900
21 parts on this diagram · 7 diagrams in section
