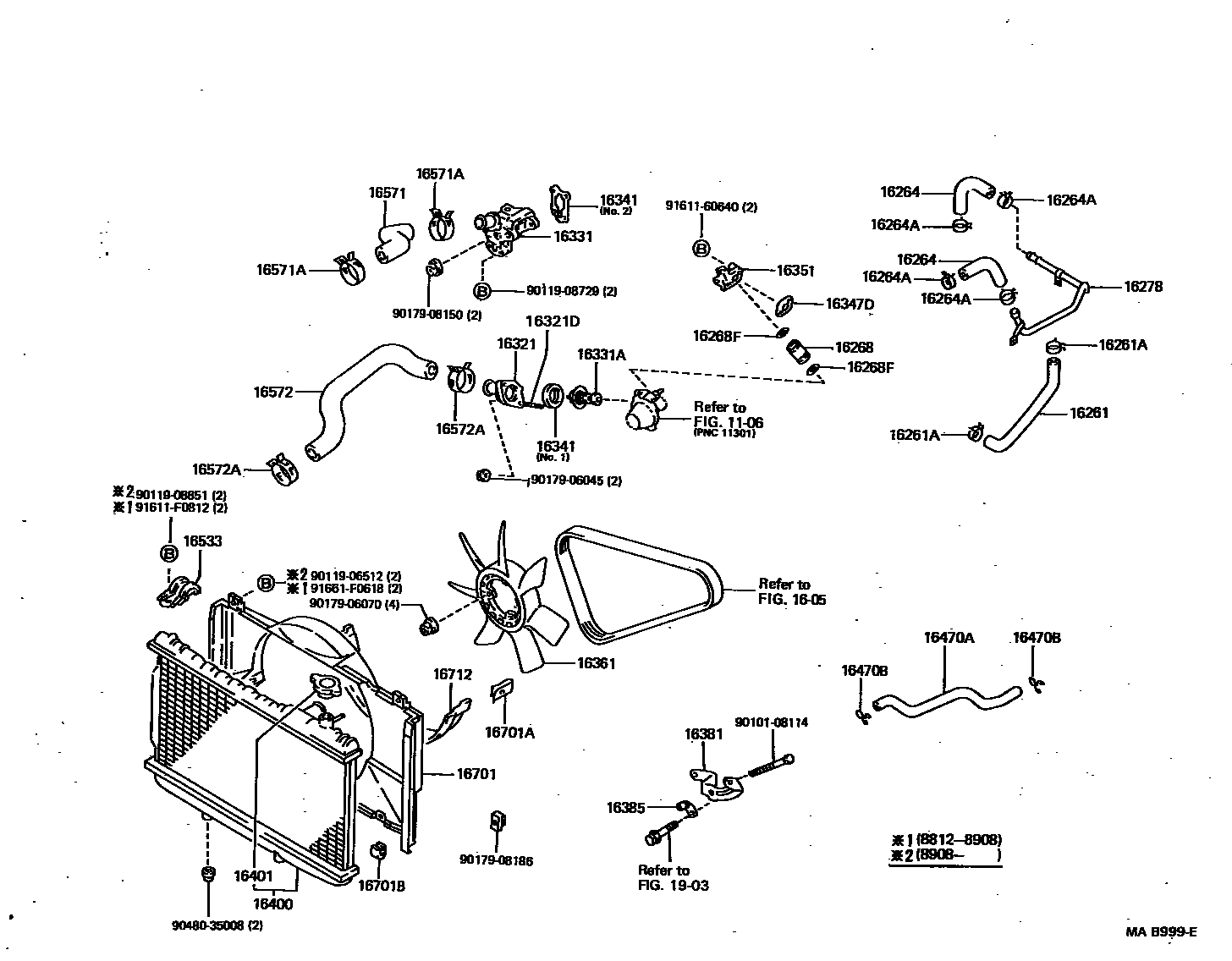

RADIATOR & WATER OUTLET
1106
1605
16264HOSE, WATER BY-PASS, NO.2
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321DBOLT, STUD(FOR WATER INLET)
16331ATHERMOSTAT
*WAX 88-100
*WAX 82-95
16351OUTLET, WATER BY-PASS
sub16351-70011
16361FAN
NO.1
NO.2,NO.2
16385SLIDER, FAN BELT ADJUSTING
16401CAP SUB-ASSY, RADIATOR
THAILAND SPEC
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16712SHROUD, FAN, NO.2
1903
9010108114
main90101-08114
9011906512
main90119-06512
9011908729
main90119-08729
9011908851
main90119-08851
9017906045
main90179-06045
9017906070
main90179-06070
9017908150
main90179-08150
9017908186
main90179-08186
9048035008
main90480-35008
9161160640
main91611-60640
91611F0812
main91611-F0812
91661F0618
main91661-F0618
45 parts on this diagram · 9 diagrams in section
