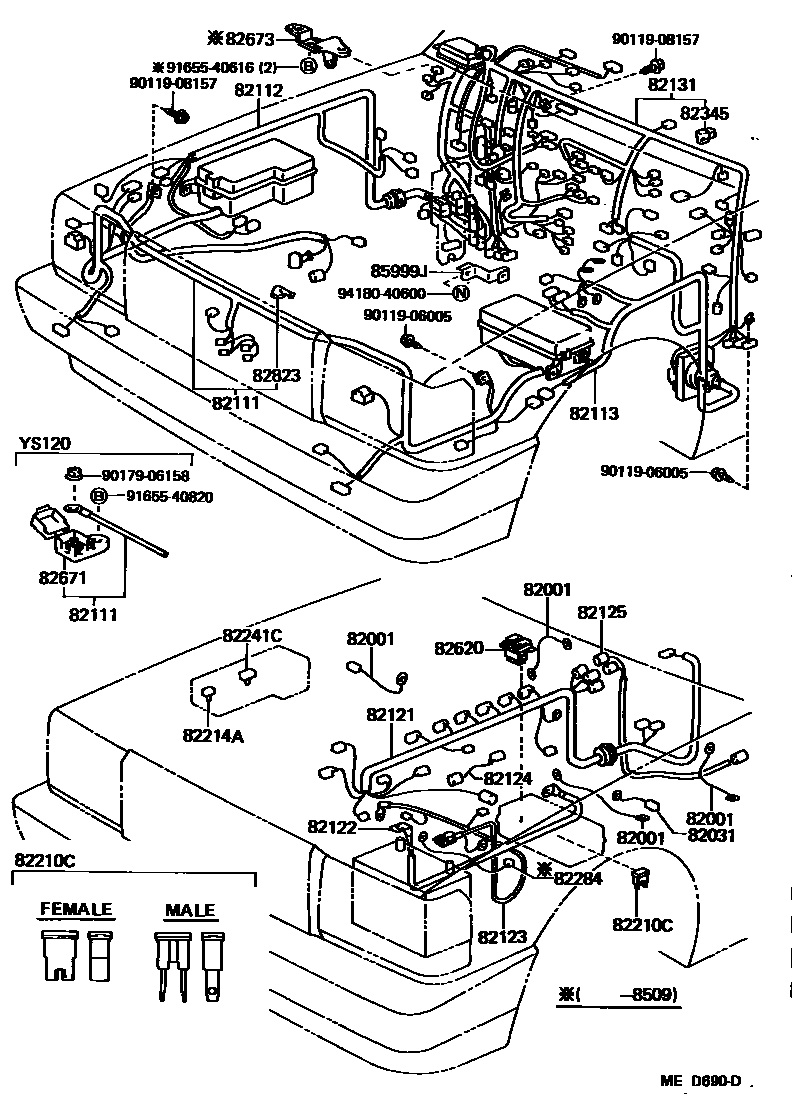

WIRING & CLAMP
82001CABLE, BOND, NO.1
ENGINE--CONDENSER
TRANSMITION--FRAME
ENGINE--DASH PANEL
CLUTCH HOUSING--BODY
TRANSMITION--FRAME
82031WIRE SUB-ASSY, IGNITION COIL
sub82031-30160
82111WIRE, ENGINE ROOM MAIN
sub82111-30401
sub82111-30411
sub82111-30414
sub82111-30443
sub82111-30451
sub82111-30454
sub82111-30533
sub82111-30721
82121WIRE, ENGINE
82122WIRE, ENGINE, NO.2
82123WIRE, ENGINE, NO.3
BATTERY=NS#
BATTERY=N#,NS(S)#,55D#
BATTERY=NS#
BATTERY=N#,NS(S)#,55D#
82124WIRE, ENGINE, NO.4
ENGINE WIRE--ALTERNATOR
82125WIRE, TRANSMISSION
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK,30A..FEMALE
40A,TERM.:FEMALE,GRN,40A
80A,TERM.:MALE,BLK,80A
30A,TERM.:MALE,PNK,30A..MALE
82214AWIRE, LAMP
82241CWIRE, RELAY
82284WIRE, EARTH
CONDENSER--ENGINE
82345DIODE
82620BLOCK ASSY, FUSIBLE LINK
82671BLOCK, JUNCTION
NO.1,LH
RH
RH
NO.2,LH
LH
82673BRACKET, JUNCTION BLOCK
82823CAP, TERMINAL, NO.1
85999JBRACKET, CIRCUIT BREAKER
9011906005
main90119-06005
9011908157
main90119-08157
9017906158
main90179-06158
9165540616
main91655-40616
9165540820
main91655-40820
9418040600
main94180-40600
27 parts on this diagram · 10 diagrams in section
