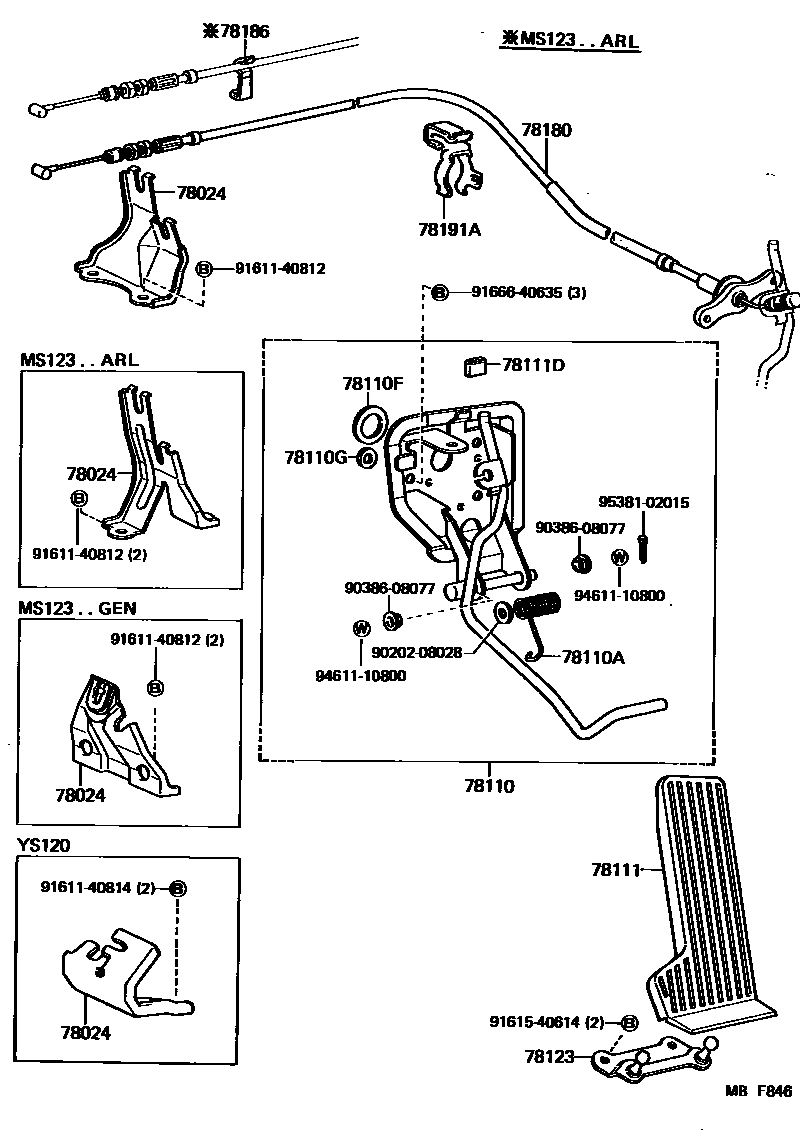

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-30010iMS122..SED198308-198708

main78024-30030iMS123,125..RHD..GEN198308-198708

main78024-30040iLS120198308-198401

main78024-30041iLS120198401-198708

main78184-30070iMS123..ARL,SWZ198308-198708

main78184-95J00iYS120198308-198708

78110ROD ASSY, ACCELERATOR PEDAL

main78120-30360iLS120..RHD198308-198708

sub78120-30470

main78120-30370iMS12#..RHD..ATM198501-198708

main78120-30380iLS120,MS122,YS120..LHD..MTM198308-198708

main78120-30390iMS123,125..LHD198308-198708

main78120-30410iMS122..RHD..5F198308-198501

sub78120-30430

main78120-30420iMS123,125..RHD198308-198708

W/*CRC

main78120-30430iMS122..RHD..5F198501-198708

main78120-30460iMS12#..RHD..ATM198308-198501

sub78120-30370

main78120-30480iYS120..RHD198308-198708

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18016iMS12#..RHD..ATM198308-198708

main90508-23025iMS122..LHD..4FC198308-198708

main90508-23026iLS120..RHD198308-198708

main90508-29010iMS122,YS120..RHD..MTM198308-198708

main90508-35008iLS120,MS122,YS120..LHD..MTM198308-198708

78110FSEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)

main78129-30050iLS120,MS12#,YS120..RHD198308-198708

78110GSEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)

main78139-30050iLS120,MS12#,YS120..RHD198308-198708

78111PEDAL, ACCELERATOR

main78111-12100iLS120,MS12#,YS120..LHD198308-198708

main78111-30080iLS120,MS12#,YS120..RHD198308-198708

sub78111-30081

78111DSTOPPER (FOR ACCELERATOR PEDAL)

main78119-30040iLS120,MS12#,YS120..LHD198308-198708

main78119-30050iLS120,MS12#,YS120..RHD198308-198708

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30050iLS120,MS12#,YS120..RHD198308-198708

78180WIRE ASSY, ACCELERATOR

main78180-30450iMS123,125..RHD198308-198708

main78180-30470iMS122..RHD198308-198708

main78180-30480iYS120..LHD198308-198708

main78180-30490iMS122..(SED,WG)..LHD198308-198708

main78180-30520iLS120..LHD198308-198708

main78180-30540iMS123,125..LHD..(EUG,GEN,SAA)198308-198708

main78180-30560iMS122..HT198308-198708

main78180-30570iLS120..RHD198308-198708

main78180-30640iYS120..RHD198308-198708

main78180-30680iMS123..ARL198308-198509

main78180-30700iYS120..LHD..STD198308-198509

TAXI

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-30040iMS123..ARL198308-198708

main78186-30070iYS120..LHD198308-198708

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main78183-30070iLS120,MS12#,YS120..RHD198308-198708

9020208028

main90202-08028

9038608077

main90386-08077

9161140812

main91611-40812

9161140814

main91611-40814

9161540614

main91615-40614

9166640635

main91666-40635

9461110800

main94611-10800

9538102015

main95381-02015

19 parts on this diagram · 4 diagrams in section
