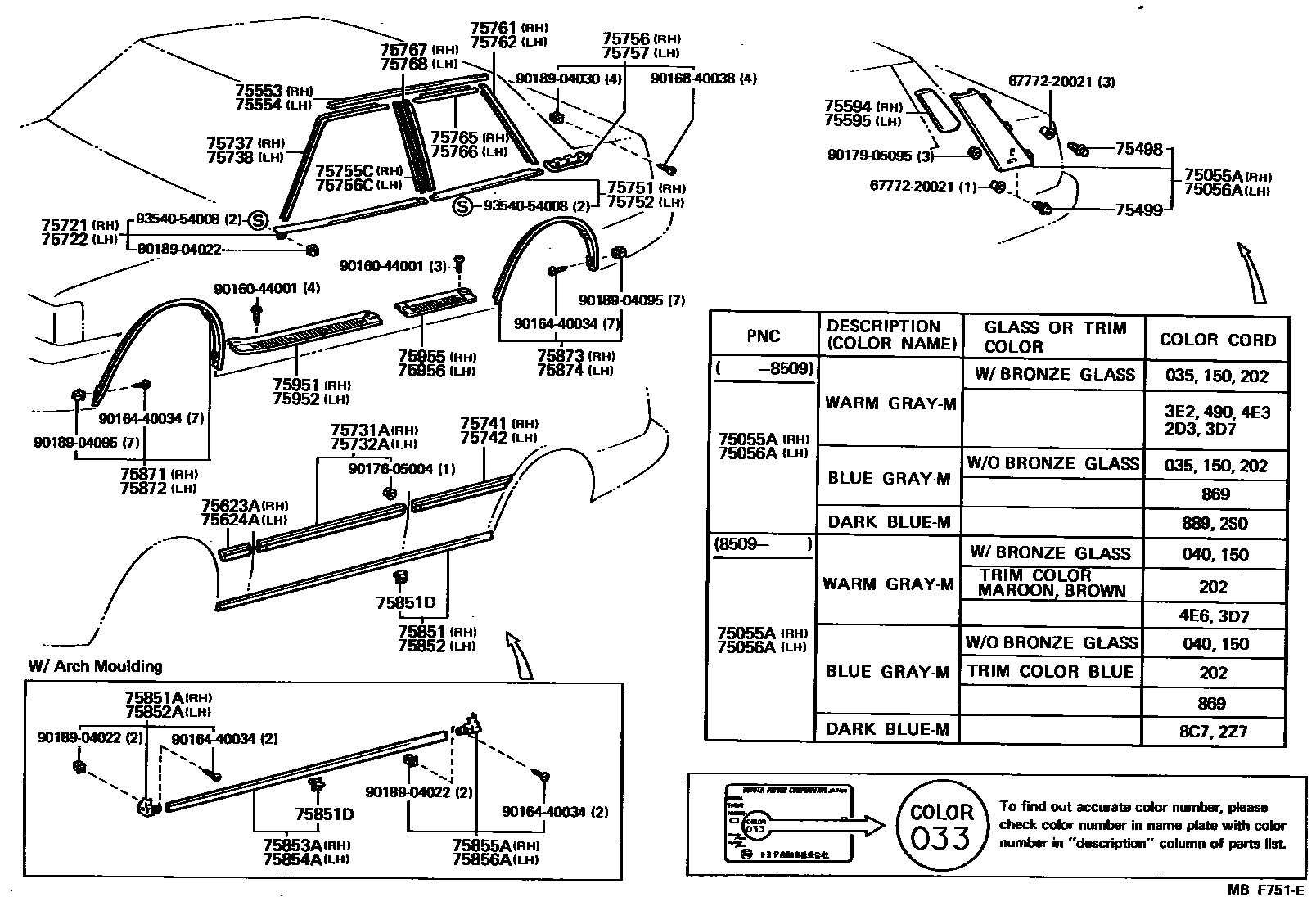

SIDE MOULDING

0001 1 0002 1 0003 1

75055AGARNISH SUB-ASSY, QUARTER, OUTER RH

main75055-30070iLS120,MS122,YS120..DLX,STD198308-198708

main75055-30080-03iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

WARM GRAY-M,GRAY

main75055-30080-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE GRAY-M,BLUE

main75055-30080-14iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DARK BLUE-M,BLUE

main75055-30081-04iMS12#..SED..(ROY,SAL)198509-198708

DARK BLUE-M,DARK BLUE METALLIC

main75055-30081-23iMS12#..SED..(ROY,SAL)198509-198708

WARM GRAY-M,WARM GRAY METALLIC

main75055-30081-33iMS12#..SED..(ROY,SAL)198509-198708

BLUE GRAY-M,BLUE GRAY METALLIC

main75055-30120-13iMS122,125..HT198509-198708

SILVER HI-M,GRAY

main75055-30120-23iMS122,125..HT198509-198708

WARM GRAY-M,WARM GRAY METALLIC

main75055-30120-33iMS122,125..HT198509-198708

BLUE GRAY-M,BLUE GRAY METALLIC

75056AGARNISH SUB-ASSY, QUARTER, OUTER LH

main75056-30060iLS120,MS122,YS120..DLX,STD198308-198708

main75056-30070-03iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

WARM GRAY-M,GRAY

main75056-30070-04iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

BLUE GRAY-M,BLUE

main75056-30070-14iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

DARK BLUE-M,BLUE

main75056-30071-04iMS12#..SED..(ROY,SAL)198509-198708

DARK BLUE-M,DARK BLUE METALLIC

main75056-30071-23iMS12#..SED..(ROY,SAL)198509-198708

WARM GRAY-M,WARM GRAY METALLIC

main75056-30071-33iMS12#..SED..(ROY,SAL)198509-198708

BLUE GRAY-M,BLUE GRAY METALLIC

main75056-30080-13iMS122,125..HT198509-198708

SILVER HI-M,GRAY

main75056-30080-23iMS122,125..HT198509-198708

WARM GRAY-M,WARM GRAY METALLIC

main75056-30080-33iMS122,125..HT198509-198708

BLUE GRAY-M,BLUE GRAY METALLIC

75498CLIP, QUARTER GARNISH, NO.1

main75498-30010×6iLS120,MS12#,YS120..SED198308-198708

75499CLIP, QUARTER GARNISH, NO.2

main75499-30020×2iLS120,MS12#,YS120..SED198308-198708

75553MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-30180iLS120,MS122,YS120..DLX,STD198308-198708

main75551-30190iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

main75551-30200iMS122,125..HT198509-198708

main75551-91704iMS122..WG198308-198708

75554MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-30180iLS120,MS122,YS120..DLX,STD198308-198708

main75552-30190iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

main75552-30200iMS122,125..HT198509-198708

main75552-91705iMS122..WG198308-198708

75594PAD, QUARTER GARNISH, RH

main75594-30020iLS120,MS12#,YS120..SED198308-198410

main75594-30030iLS120,MS12#,YS120..HT,SED198410-198510

NO.1

main75594-30040iMS122,125..HT198509-198708

NO.2

75595PAD, QUARTER GARNISH, LH

main75594-30020iLS120,MS12#,YS120..SED198308-198410

main75594-30030iLS120,MS12#,YS120..HT,SED198410-198510

NO.1

main75595-30030iMS122,125..HT198509-198708

NO.2

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-30140iMS122..WG198308-198509

main75623-30150iLS120,MS12#,YS120..SED198308-198708

main75623-30160iMS122,125..HT198509-198708

main75623-91701iMS122..WG198509-198708

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-30140iMS122..WG198308-198509

main75624-30150iLS120,MS12#,YS120..SED198308-198708

main75624-30160iMS122,125..HT198509-198708

main75624-91701iMS122..WG198509-198708

75721MOULDING, FRONT DOOR BELT, RH

main75710-30201iMS122,125..HT198509-198708

main75710-39095iLS120,MS12#,YS120..SED,WG198308-198708

75722MOULDING, FRONT DOOR BELT, LH

main75720-30201iMS122,125..HT198509-198708

main75720-39095iLS120,MS12#,YS120..SED,WG198308-198708

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-39015iMS122..WG198308-198509

sub75731-30230

main75731-39025iLS120,MS12#,YS120..SED198308-198708

main75731-39035iMS122,125..HT198509-198708

sub75731-30250

main75731-91701iMS122..WG198509-198708

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-39015iMS122..WG198308-198509

sub75732-30220

main75732-39025iLS120,MS12#,YS120..SED198308-198708

main75732-39035iMS122,125..HT198509-198708

sub75732-30240

main75732-91701iMS122..WG198509-198708

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-30130iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-30120iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-30260iMS122..WG198308-198509

main75741-30270iLS120,MS12#,YS120..SED198308-198708

main75741-30280iMS122,125..HT198509-198708

main75741-91701iMS122..WG198509-198708

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-30220iMS122..WG198308-198509

main75742-30230iLS120,MS12#,YS120..SED198308-198708

main75742-30240iMS122,125..HT198509-198708

main75742-91701iMS122..WG198509-198708

75751MOULDING, REAR DOOR BELT, RH

main75730-30081iMS122,125..HT198509-198708

main75730-39045iLS120,MS12#,YS120..SED,WG198308-198708

75752MOULDING, REAR DOOR BELT, LH

main75740-30131iMS122,125..HT198509-198708

main75740-39045iLS120,MS12#,YS120..SED,WG198308-198708

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-30080iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

75756MOULDING, QUARTER BELT, RH

main75660-91701iMS122..WG198308-198708

main75671-39015iLS120,MS12#,YS120..SED198308-198708

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-30070iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

75757MOULDING, QUARTER BELT, LH

main75670-91702iMS122..WG198308-198708

main75672-39015iLS120,MS12#,YS120..SED198308-198708

75761MOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-30090iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

main75765-91701iMS122..WG198308-198708

75762MOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-30090iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

main75766-91701iMS122..WG198308-198708

75765MOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-30050iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

main75763-91701iMS122..WG198308-198708

75766MOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-30050iLS120,MS12#,YS120..SED..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

main75764-91701iMS122..WG198308-198708

75767MOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-30070iLS120,MS12#,YS120..(SED,WG)..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

75768MOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-30070iLS120,MS12#,YS120..(SED,WG)..(ROY,SAL)..(ARL,GEN,SAA)198308-198708

75851MOULDING, ROCKER PANEL, RH

main75850-30080iLS120,MS122..SED..(DLX,SAL)..GEN198308-198708

75851AMOULDING, ROCKER PANEL, FRONT RH

main75856-39035iLS120,MS12#,YS120198308-198708

W/ARCH MOULDING

75851DCLIP(FOR ROCKER PANEL MOULDING SET)

main75867-30030×14iLS120,MS12#,YS120198308-198708

75852MOULDING, ROCKER PANEL, LH

main75850-30080iLS120,MS122..SED..(DLX,SAL)..GEN198401-198708

main75860-30070iLS120,MS122..SED..SAL198308-198401

75852AMOULDING, ROCKER PANEL, FRONT LH

main75855-39035iLS120,MS12#,YS120198308-198708

W/ARCH MOULDING

75853AMOULDING, ROCKER PANEL, CENTER RH

main75853-30080iLS120,MS12#,YS120198308-198708

W/ARCH MOULDING

75854AMOULDING, ROCKER PANEL, CENTER LH

main75854-30040iLS120,MS12#,YS120198308-198708

W/ARCH MOULDING

75855AMOULDING, ROCKER PANEL, REAR RH

main75855-39035iLS120,MS12#,YS120198308-198708

W/ARCH MOULDING

75856AMOULDING, ROCKER PANEL, REAR LH

main75856-39035iLS120,MS12#,YS120198308-198708

W/ARCH MOULDING

75871MOULDING, FRONT FENDER WHEEL OPENING, RH

main75871-39055iLS120,MS12#,YS120198308-198708

W/ARCH MOULDING

75872MOULDING, FRONT FENDER WHEEL OPENING, LH

main75872-39055iLS120,MS12#,YS120198308-198708

W/ARCH MOULDING

75873MOULDING, QUARTER PANEL WHEEL OPENING, RH

main75873-39055iLS120,MS12#,YS120..HT,SED198308-198708

W/ARCH MOULDING

main75873-39065iMS122..WG198308-198708

75874MOULDING, QUARTER PANEL WHEEL OPENING, LH

main75874-39055iLS120,MS12#,YS120..HT,SED198308-198708

W/ARCH MOULDING

main75874-39065iMS122..WG198308-198708

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-30150-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main67913-30150-04iLS120,MS12#,YS120..SED198308-198509

BLUE,BLUE,TRIM8#

main67913-30150-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main67913-30150-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

main67913-30150-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-30160-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main67914-30160-04iLS120,MS12#,YS120198509-198708

BLUE,BLUE,TRIM8#

main67914-30160-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main67914-30160-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

main67914-30160-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-30100-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main67917-30100-04iLS120,MS12#,YS120198509-198708

BLUE,BLUE,TRIM8#

main67917-30100-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main67917-30100-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

main67917-30100-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67917-30100-02iLS120,MS12#,YS120..ROY,SAL198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main67917-30100-04iLS120,MS12#,YS120..SED198308-198509

BLUE,BLUE,TRIM8#

main67917-30100-05iMS12#,YS120;LS120..4F,5F;LS120..LHD..STD198308-198509

BEIGE,BEIGE,TRIM4#

main67917-30100-06iLS120..LHD;MS122,123,YS120..HT,SED;LS120,MS125..SED..(4F,4FC,4HC)198509-198708

BROWN,BROWN,TRIM4#

main67917-30100-12iMS12#..ROY,SAL198509-198708

MAROON,MAROON,TRIM3#

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9016044001

main90160-44001

9016440034

main90164-40034

9016840038

main90168-40038

9017605004

main90176-05004

9017905095

main90179-05095

9018904022

main90189-04022

9018904030

main90189-04030

9018904095

main90189-04095

9354054008

main93540-54008

57 parts on this diagram · 3 diagrams in section
