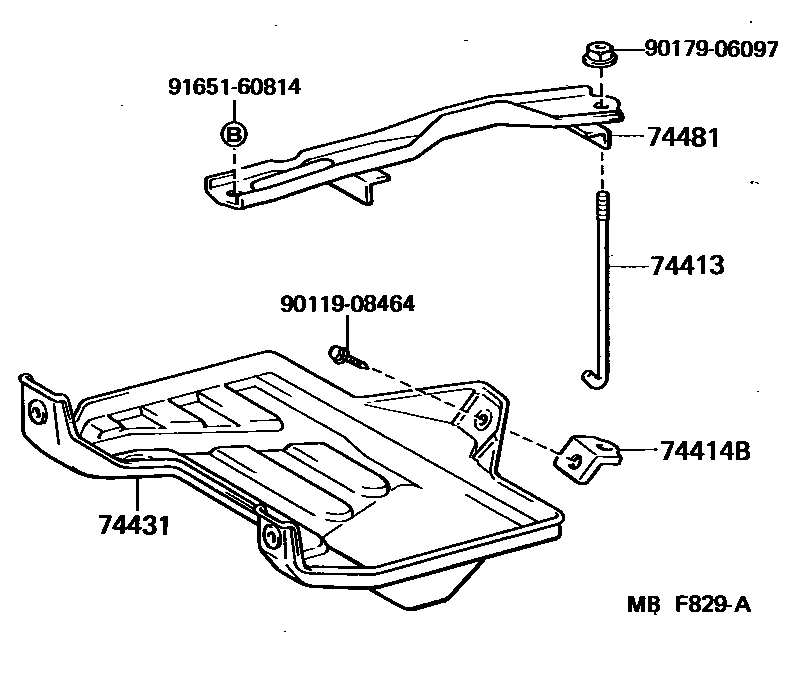

BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-30070iLS120,MS12#,YS120198308-198708

sub74451-30090

74414BREINFORCEMENT, BATTERY BRACKET

main74414-30030iLS120,MS12#,YS120198308-198708

74431TRAY, BATTERY

main74410-30010iLS120,MS123,125198509-198708

COLD SPEC

main74431-30020iMS122,YS120198308-198708

main74431-30060iMS122,YS120198308-198509

COLD SPEC

sub74410-30010

74481CLAMP, BATTERY HOLD DOWN

main74404-30180iMS122,YS120198308-198708

main74404-30200iMS122,YS120198308-198509

COLD SPEC

main74404-30201iLS120,MS123,125198509-198708

COLD SPEC

9011908464

main90119-08464

9017906097

main90179-06097

9165160814

main91651-60814

7 parts on this diagram · 1 diagram in section
