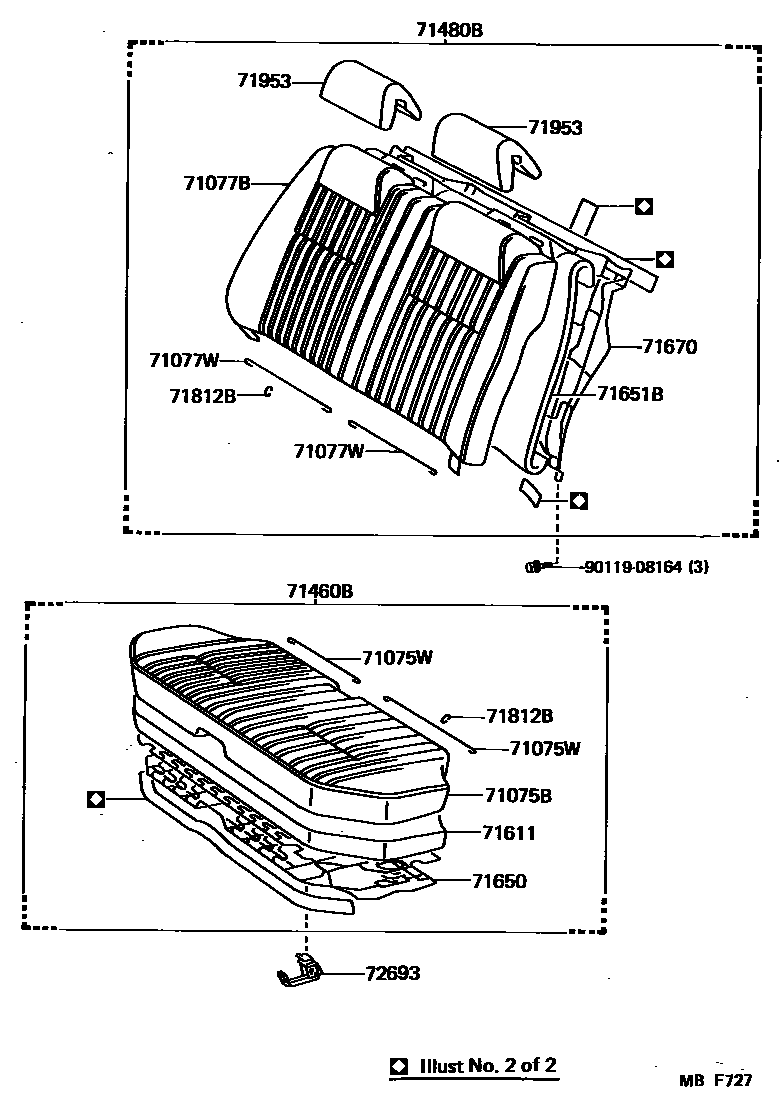

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-30030-02iMS122..HT198509-198708

FB,MAROON,MAROON,TRIM3#

main71065-30030-04iMS122..HT198509-198708

FB,BLUE,BLUE,TRIM8#

main71065-30030-06iMS122..HT198509-198708

FB,BROWN,BROWN,TRIM4#

main71065-30040-02iMS125..HT198509-198708

FB,MAROON,MAROON,TRIM3#

main71065-30040-04iMS125..HT198509-198708

FB,BLUE,BLUE,TRIM8#

main71065-30180-02iMS12#..ROY..(GEN,SAA)198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71065-30180-04iMS12#..ROY..(GEN,SAA)198308-198509

FB,BLUE,BLUE,TRIM8#

main71065-30180-05iMS12#..ROY..(GEN,SAA)198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71065-30181-02iMS122,125..SED..4FC..ROY198509-198708

FB,MAROON,MAROON,TRIM3#

main71065-30181-04iMS122,125..SED..4FC..ROY198509-198708

FB,BLUE,BLUE,TRIM8#

main71065-30181-06iMS122,125..SED..4FC..ROY198509-198708

FB,BROWN,BROWN,TRIM4#

main71065-30210-02iMS123..SAL198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71065-30210-04iMS123..SAL198308-198509

FB,BLUE,BLUE,TRIM8#

main71065-30210-05iMS123..SAL198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71065-30211-02iMS123198608-198708

FB,MAROON,MAROON,TRIM3#

main71065-30211-04iMS123198608-198708

FB,BLUE,BLUE,TRIM8#

main71065-30211-06iMS123198608-198708

FB,BROWN,BROWN,TRIM4#

main71065-30220-02iMS123..ARL198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71065-30220-04iMS123..ARL198308-198509

FB,BLUE,BLUE,TRIM8#

main71065-30220-05iMS123..ARL198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71065-30221-02iMS123198509-198608

FB,MAROON,MAROON,TRIM3#

main71065-30221-04iMS123198509-198608

FB,BLUE,BLUE,TRIM8#

main71065-30221-06iMS123198509-198608

FB,BROWN,BROWN,TRIM4#

main71075-30860-04iLS120,YS120..STD198308-198509

PF,BLUE,BLUE,TRIM8#

sub71075-30861

main71075-30860-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

PF,BEIGE,BEIGE,TRIM4#

sub71075-30861

main71075-30861-04iLS120,YS120198509-198708

PF,BLUE,BLUE,TRIM8#

main71075-30861-06iYS120;LS120..4F;LS120..LHD198509-198708

PF,BROWN,BROWN,TRIM4#

main71075-30880-04iLS120,YS120..4F198308-198509

FB,BLUE,BLUE,TRIM8#

sub71075-30881

main71075-30880-05iLS120,YS120..4F198308-198509

FB,BEIGE,BEIGE,TRIM4#

sub71075-30881

main71075-30881-04iLS120,MS122,YS120..(4F,5F)..(DLX,STD)198509-198708

FB,BLUE,BLUE,TRIM8#

main71075-30881-06iLS120,MS122,YS120..(4F,5F)..(DLX,STD)198509-198708

FB,BROWN,BROWN,TRIM4#

main71075-30890-02iLS120,MS122,YS120..SED..SAL198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71075-30890-04iLS120,MS122,YS120..SED..SAL198308-198509

FB,BLUE,BLUE,TRIM8#

main71075-30890-05iLS120,MS122,YS120..SED..SAL198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71075-30891-02iMS122..SED..SAL198509-198708

FB,MAROON,MAROON,TRIM3#

main71075-30891-04iMS122..SED..SAL198509-198708

FB,BLUE,BLUE,TRIM8#

main71075-30891-06iMS122..SED..SAL198509-198708

FB,BROWN,BROWN,TRIM4#

main71075-91737-02iMS122..WG198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71075-91737-05iMS122..WG198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71075-91745-02iMS122..WG198509-198708

FB,W/RR SEAT BELT,MAROON,MAROON,TRIM3#

main71075-91745-04iMS122..WG198509-198708

FB,W/RR SEAT BELT,BLUE,BLUE,TRIM8#

main71075-91747-02iMS122..WG198509-198708

FB,MAROON,MAROON,TRIM3#

main71075-91747-04iMS122..WG198509-198708

FB,BLUE,BLUE,TRIM8#

71075WWIRE, REAR SEAT CUSHION COVER

main90580-20020iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=420

main90580-20029iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=750

main90580-20079iLS120,YS120..STD198308-198509

L=960

sub90580-20107

main90580-20089iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=130

main90580-20097iLS120,YS120..STD198308-198509

L=1050

sub90580-20107

main90580-20105iLS120,YS120..STD198308-198509

L=250

sub90580-20165

main90580-20108iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=550

sub90580-20107

main90580-20109iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=330

main90580-20130iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=700

sub90580-20107

main90580-29003iLS120,YS120..STD198308-198509

L=300

sub90580-29010

main90580-29010iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

L=280

main90580-29010iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

RR SLIDE SEAT,L=280

main90580-29013iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=400

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-3A020-04iLS120,YS120..STD198308-198509

PF,BLUE,BLUE,TRIM8#

main71077-3A020-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

PF,BEIGE,BEIGE,TRIM4#

main71077-3A021-04iLS120,YS120198509-198708

PF,BLUE,BLUE,TRIM8#

sub71077-3A240

main71077-3A021-06iYS120;LS120..4F;LS120..LHD198509-198708

PF,BROWN,BROWN,TRIM4#

sub71077-3A240

main71077-3A050-02iLS120,MS122,123,YS120..SED..SAL198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71077-3A050-04iLS120,MS122,123,YS120..SED..SAL198308-198509

FB,BLUE,BLUE,TRIM8#

main71077-3A050-05iLS120,MS122,123,YS120..SED..SAL198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71077-3A051-02iMS123198509-198708

FB,MAROON,MAROON,TRIM3#

main71077-3A051-04iMS123198509-198708

FB,BLUE,BLUE,TRIM8#

main71077-3A051-06iMS122..SED..SAL198509-198708

FB,BROWN,BROWN,TRIM4#

main71077-3A070-02iMS12#..ROY198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71077-3A070-04iMS12#..ROY198308-198509

FB,BLUE,BLUE,TRIM8#

main71077-3A070-05iMS12#..ROY198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71077-3A071-02iMS12#..SED..4FC..ROY198509-198708

FB,MAROON,MAROON,TRIM3#

main71077-3A071-04iMS12#..SED..4FC..ROY198509-198708

FB,BLUE,BLUE,TRIM8#

main71077-3A071-06iMS122,125..SED..4FC..ROY198509-198708

FB,BROWN,BROWN,TRIM4#

main71077-3A170-04iLS120,YS120..4F198308-198509

FB,BLUE,BLUE,TRIM8#

main71077-3A170-05iLS120,YS120..4F198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71077-3A171-04iLS120,MS122,YS120..(4F,5F)..(DLX,STD)198509-198708

FB,BLUE,BLUE,TRIM8#

main71077-3A171-06iLS120,MS122,YS120..(4F,5F)..(DLX,STD)198509-198708

FB,BROWN,BROWN,TRIM4#

main71077-3A210-02iMS122..HT198509-198708

FB,MAROON,MAROON,TRIM3#

main71077-3A210-04iMS122..HT198509-198708

FB,BLUE,BLUE,TRIM8#

main71077-3A210-06iMS122..HT198509-198708

FB,BROWN,BROWN,TRIM4#

main71077-3A220-02iMS125..HT198509-198708

FB,MAROON,MAROON,TRIM3#

main71077-3A220-04iMS125..HT198509-198708

FB,BLUE,BLUE,TRIM8#

main71077-91740-02iMS122..WG198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71077-91740-05iMS122..WG198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71077-91745-02iMS122..WG198509-198708

FB,MAROON,MAROON,TRIM3#

main71077-91745-04iMS122..WG198509-198708

FB,BLUE,BLUE,TRIM8#

71077WWIRE, REAR SEATBACK COVER

main90580-20010iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=150

main90580-20015iLS120,YS120..STD198308-198509

L=900

sub90580-20107

main90580-20020iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

L=420

main90580-20023iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=110

sub90580-20165

main90580-20041iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=220

main90580-20108iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=550

sub90580-20107

main90580-20109iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=330

main90580-20110iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=920

main90580-20122iMS12#..ROY..(GEN,SAA)198308-198509

L=200

main90580-20122iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=200

main90580-20126iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=380

main90580-20130iLS120,YS120..STD198308-198509

L=700

sub90580-20107

main90580-20136iLS120,YS120..STD198308-198509

L=80

sub90580-20165

main90580-20168iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

L=1300

sub90580-20170

main90580-29003iLS120,YS120..STD198308-198509

L=300

sub90580-29010

main90580-29003iLS120,YS120..STD198308-198509

RR SLIDE SEAT,L=300

sub90580-29010

main90580-29009iMS12#..ROY..(GEN,SAA)198308-198509

RR SLIDE SEAT,L=210

main90580-29010iMS12#..ROY..(GEN,SAA)198308-198509

L=280

main90580-29010iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

RR SLIDE SEAT,L=280

main90580-29013iLS120,YS120..STD198308-198509

L=400

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-91738-02iMS122..WG198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71460-91738-05iMS122..WG198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71460-91745-02iMS122..WG198509-198708

FB,W/RR SEAT BELT,MAROON,MAROON,TRIM3#

main71460-91745-04iMS122..WG198509-198708

FB,W/RR SEAT BELT,BLUE,BLUE,TRIM8#

main71460-91747-02iMS122..WG198509-198708

FB,MAROON,MAROON,TRIM3#

main71460-91747-04iMS122..WG198509-198708

FB,BLUE,BLUE,TRIM8#

main71560-30180-04iLS120,YS120..STD198308-198509

PF,BLUE,BLUE,TRIM8#

sub71560-30181

main71560-30180-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

PF,BEIGE,BEIGE,TRIM4#

sub71560-30181

main71560-30181-04iLS120,YS120198509-198708

PF,BLUE,BLUE,TRIM8#

main71560-30181-06iYS120;LS120..4F;LS120..LHD198509-198708

PF,BROWN,BROWN,TRIM4#

main71560-30200-04iLS120,YS120..4F198308-198509

FB,BLUE,BLUE,TRIM8#

sub71560-30201

main71560-30200-05iLS120,YS120..4F198308-198509

FB,BEIGE,BEIGE,TRIM4#

sub71560-30201

main71560-30201-04iLS120,MS122,YS120..(4F,5F)..(DLX,STD)198509-198708

FB,MAROON,BLUE,TRIM3#

main71560-30201-06iLS120,MS122,YS120..(4F,5F)..(DLX,STD)198509-198708

FB,BROWN,BROWN,TRIM4#

main71560-30230-02iMS12#..ROY..(GEN,SAA)198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71560-30230-04iMS12#..ROY..(GEN,SAA)198308-198509

FB,BLUE,BLUE,TRIM8#

main71560-30230-05iMS12#..ROY..(GEN,SAA)198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71560-30231-02iMS122,125..SED..4FC..ROY198509-198708

FB,MAROON,MAROON,TRIM3#

main71560-30231-04iMS122,125..SED..4FC..ROY198509-198708

FB,BLUE,BLUE,TRIM8#

main71560-30231-06iMS122,125..SED..4FC..ROY198509-198708

FB,BROWN,BROWN,TRIM4#

main71560-30240-02iLS120,MS122,YS120..SED..SAL198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71560-30240-04iLS120,MS122,YS120..SED..SAL198308-198509

FB,BLUE,BLUE,TRIM8#

main71560-30240-05iLS120,MS122,YS120..SED..SAL198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71560-30241-02iMS122..SED..SAL198509-198708

FB,MAROON,MAROON,TRIM3#

main71560-30241-04iMS122..SED..SAL198509-198708

FB,BLUE,BLUE,TRIM8#

main71560-30241-06iMS122..SED..SAL198509-198708

FB,BROWN,BROWN,TRIM4#

main71560-30320-02iMS123..SAL198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71560-30320-04iMS123..SAL198308-198509

FB,BLUE,BLUE,TRIM8#

main71560-30320-05iMS123..SAL198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71560-30321-02iMS123198608-198708

FB,MAROON,MAROON,TRIM3#

main71560-30321-04iMS123198608-198708

FB,BLUE,BLUE,TRIM8#

main71560-30321-06iMS123198608-198708

FB,BROWN,BROWN,TRIM4#

main71560-30330-02iMS123..ARL198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71560-30330-04iMS123..ARL198308-198509

FB,BLUE,BLUE,TRIM8#

main71560-30330-05iMS123..ARL198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71560-30331-02iMS123198509-198608

FB,MAROON,MAROON,TRIM3#

main71560-30331-04iMS123198509-198608

FB,BLUE,BLUE,TRIM8#

main71560-30331-06iMS123198509-198608

FB,BROWN,BROWN,TRIM4#

main71560-30360-02iMS122..HT198509-198708

FB,MAROON,MAROON,TRIM3#

main71560-30360-04iMS122..HT198509-198708

FB,BLUE,BLUE,TRIM8#

main71560-30360-06iMS122..HT198509-198708

FB,BROWN,BROWN,TRIM4#

main71560-30370-02iMS125..HT198509-198708

FB,MAROON,MAROON,TRIM3#

main71560-30370-04iMS125..HT198509-198708

FB,BLUE,BLUE,TRIM8#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-3A090-04iLS120,YS120..STD198308-198509

PF,BLUE,BLUE,TRIM8#

sub71480-3A330

main71480-3A090-05iLS120..4F;YS120..STD;LS120..LHD..STD198308-198509

PF,BEIGE,BEIGE,TRIM4#

sub71480-3A330

main71480-3A091-04iLS120,YS120198509-198708

PF,MAROON,BLUE,TRIM3#

sub71480-3A330

main71480-3A091-06iYS120;LS120..4F;LS120..LHD198509-198708

PF,BLUE,BROWN,TRIM8#

sub71480-3A330

main71480-3A130-02iMS123..SAL198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71480-3A130-04iMS123..SAL198308-198509

FB,BLUE,BLUE,TRIM8#

main71480-3A130-05iMS123..SAL198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71480-3A150-02iMS12#..ROY198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71480-3A150-04iMS12#..ROY198308-198509

FB,BLUE,BLUE,TRIM8#

main71480-3A150-05iMS12#..ROY198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71480-3A151-02iMS122,125..SED..4FC..ROY198509-198708

FB,MAROON,MAROON,TRIM3#

main71480-3A151-04iMS12#..SED..4FC..ROY198509-198708

FB,BLUE,BLUE,TRIM8#

main71480-3A151-06iMS12#..SED..4FC..ROY198509-198708

FB,BROWN,BROWN,TRIM4#

main71480-3A160-02iLS120,MS122,YS120..SED..SAL198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71480-3A160-04iLS120,MS122,YS120..SED..SAL198308-198509

FB,BLUE,BLUE,TRIM8#

main71480-3A160-05iLS120,MS122,YS120..SED..SAL198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71480-3A161-02iMS122..SED..SAL198509-198708

FB,MAROON,MAROON,TRIM3#

main71480-3A161-04iMS122..SED..SAL198509-198708

FB,BLUE,BLUE,TRIM8#

main71480-3A161-06iMS122..SED..SAL198509-198708

FB,BROWN,BROWN,TRIM4#

main71480-3A240-04iLS120,YS120..4F198308-198509

FB,BLUE,BLUE,TRIM8#

main71480-3A240-05iLS120,YS120..4F198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71480-3A241-04iLS120,MS122,YS120..(4F,5F)..(DLX,STD)198509-198708

FB,BLUE,BLUE,TRIM8#

main71480-3A241-06iLS120,MS122,YS120..(4F,5F)..(DLX,STD)198509-198708

FB,BROWN,BROWN,TRIM4#

main71480-3A290-02iMS125..HT198509-198708

FB,MAROON,MAROON,TRIM3#

main71480-3A290-04iMS125..HT198509-198708

FB,BLUE,BLUE,TRIM8#

main71480-3A300-02iMS122..HT198509-198708

FB,MAROON,MAROON,TRIM3#

main71480-3A300-04iMS122..HT198509-198708

FB,BLUE,BLUE,TRIM8#

main71480-3A300-06iMS122..HT198509-198708

FB,BROWN,BROWN,TRIM4#

main71480-3A360-02iMS123198608-198708

FB,MAROON,MAROON,TRIM3#

main71480-3A360-04iMS123198608-198708

FB,BLUE,BLUE,TRIM8#

main71480-3A360-06iMS123198608-198708

FB,BROW,BROWN

main71480-91779-02iMS122..WG198308-198509

FB,DEEP MAROON,RED/MAROON,TRIM3#

main71480-91779-05iMS122..WG198308-198509

FB,BEIGE,BEIGE,TRIM4#

main71480-91789-02iMS122..WG198509-198708

FB,MAROON,MAROON,TRIM3#

main71480-91789-04iMS122..WG198509-198708

FB,BLUE,BLUE,TRIM8#

71611PAD, REAR SEAT CUSHION

main71503-91702iMS122..WG198308-198708

main71611-30490iLS120,YS120..STD198308-198509

main71611-30500iMS125..SED..4FC;LS120,MS122,123,YS120..SED198308-198708

main71611-30520iMS122,125..HT198509-198708

71650SPRING ASSY, REAR SEAT CUSHION

main71650-30280iLS120,MS12#,YS120..SED198308-198708

main71650-30300iMS122,125..HT198509-198708

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-30030iLS120,YS120..STD198308-198509

PF SEAT

main71507-30031iLS120,MS122,YS120..DLX,STD198509-198708

main71507-30040iLS120,YS120..4F198308-198509

FB SEAT

main71507-30070iMS122,125..HT198509-198708

main71651-30490iMS125..SED..4FC;LS120,MS122,123,YS120..SED198308-198708

main71651-91707iMS122..WG198308-198708

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-30310iLS120,YS120..STD198308-198708

main71670-30330iMS125..SED..4FC;MS122,123..SED..(ROY,SAL)198308-198708

main71670-30350iMS122,125..HT198509-198708

main71670-91716iMS122..WG198308-198708

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18071iLS120,MS12#,YS120198308-198708

sub90468-18008

71953PAD, REAR SEAT HEADREST

main71953-30070iLS120,YS120..STD198308-198509

main71953-30071iLS120,MS122,YS120..DLX,STD198509-198708

main71953-91701iMS122..WG198308-198708

72693HOOK, REAR SEAT CUSHION LOCK

main72693-30011iLS120,MS12#,YS120..SED198308-198708

9011908164

main90119-08164

14 parts on this diagram · 8 diagrams in section
