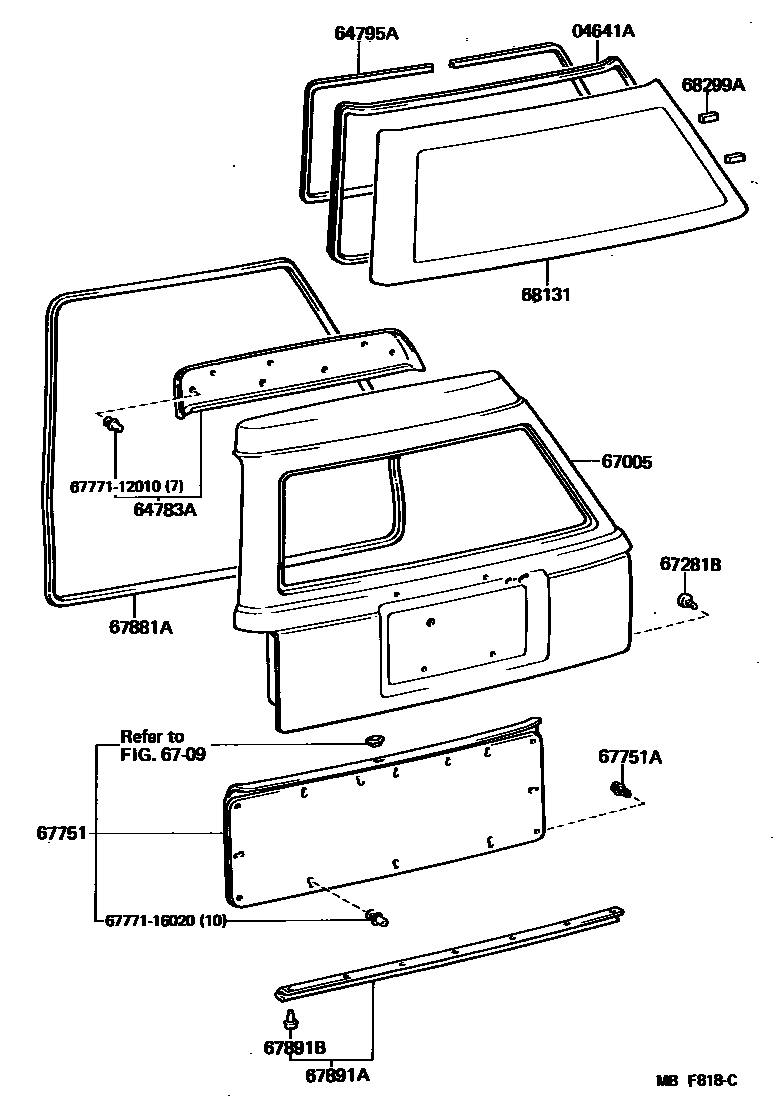

BACK DOOR PANEL & GLASS
04641ADAM KIT, BACK WINDOW GLASS ADHESIVE
64783ATRIM, BACK WINDOW PANEL, UPPER
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
64795ATRIM, BACK WINDOW OPENING
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
67005PANEL SUB-ASSY, BACK DOOR
W/RR WIPER
W/RR WIPER
6709
67281BSTOPPER, BACK DOOR, LOWER
67751BOARD, BACK DOOR TRIM
DEEP MAROON,MAROON,TRIM3#
BEIGE,BROWN,TRIM4#
MAROON,MAROON,TRIM3#
BLUE,BLUE,TRIM8#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67881AWEATHERSTRIP, BACK DOOR
67891ASEAL, BACK DOOR
67891BCLIP(FOR BACK DOOR SEAL)
68131GLASS, BACK DOOR
*EHTT,T=4.0
BRONZE,*EHTT,T=4.0
68299ASPACER, BACK DOOR GLASS
6777112010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12010
6777116020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16020
15 parts on this diagram · 1 diagram in section
