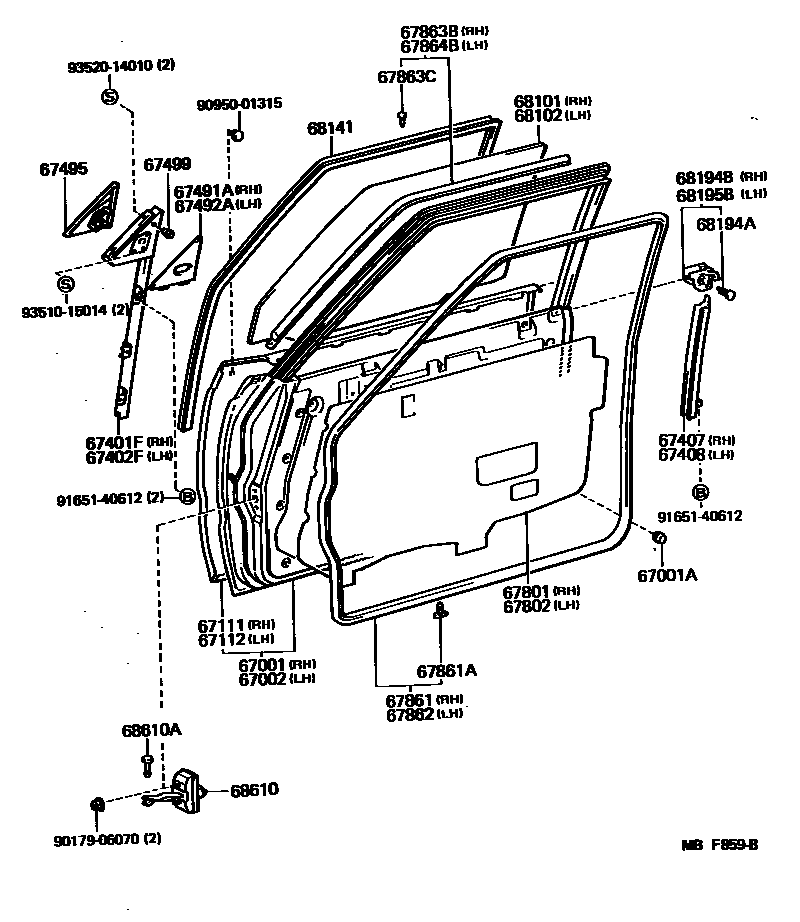

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-30450iLS120,MS12#,YS120..EUG,GEN,SWZ198308-198708

main67001-30480iMS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL198308-198401

*SAA

main67001-30480iMS123..ARL198308-198708

main67001-30510iMS122,125..HT198509-198708

67001ACUSHION, FRONT DOOR PANEL

main90541-09046iLS120,MS12#,YS120198505-198708

main90541-09121iLS120,MS12#,YS120198308-198505

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-30530iLS120,MS12#,YS120..EUG,GEN,SWZ198308-198708

main67002-30560iMS12#..(SED,WG)..SAA198308-198708

main67002-30560iMS123..LHD..GEN;MS122..LHD..(4FC,5F)..SAL198308-198401

*SAA

main67002-30590iMS122,125..HT198509-198708

67111PANEL, FRONT DOOR, OUTER RH

main67111-30190iLS120,MS12#,YS120..SED,WG198308-198708

main67111-30905iMS122,125..HT198509-198708

67112PANEL, FRONT DOOR, OUTER LH

main67112-30250iLS120,MS12#,YS120198308-198708

main67112-30905iMS122,125..HT198509-198708

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-30150iLS120,MS12#,YS120..SED,WG198308-198708

main67401-30170iMS122,125..HT198509-198708

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-30150iLS120,MS12#,YS120..SED,WG198308-198708

main67402-30170iMS122,125..HT198509-198708

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-30070iLS120,MS12#,YS120..SED,WG198308-198708

main67403-30080iMS122,125..HT198509-198708

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-30070iLS120,MS12#,YS120..SED,WG198308-198708

main67404-30080iMS122,125..HT198509-198708

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-30030iLS120,MS12#,YS120..(SED,WG)..(ROY,SAL)198308-198708

W/ELECTRONIC MIRROR

main67491-30040iMS122..WG;LS120,MS122,YS120..DLX,STD198308-198708

W/MANUAL MIRROR

main67491-30060iMS122,125..HT198509-198708

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-30030iLS120,MS12#,YS120..(SED,WG)..(ROY,SAL)198308-198708

W/ELECTRONIC MIRROR

main67492-30040iMS122..WG;LS120,MS122,YS120..DLX,STD198308-198708

W/MANUAL MIRROR

main67492-30060iMS122,125..HT198509-198708

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-22011iMS122..WG;LS120,MS122,YS120..DLX,STD198308-198708

RH

main67496-22011iMS122..WG;LS120,MS122,YS120..DLX,STD198308-198708

LH

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010iLS120,MS12#,YS120..SED,WG198308-198708

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-30210iLS120,YS120..STD198308-198708

main67831-30220iMS122..DLX198509-198708

W/*PW

main67831-30220iLS120,MS12#,YS120..ROY,SAL198308-198509

main67831-30230iMS122,125..HT198509-198708

main67831-30250iMS123..EUG198312-198509

main67831-30250iMS123..EUG198308-198312

COLD SPEC

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67832-30080iLS120,YS120..STD198308-198708

main67832-30090iMS12#..(SED,WG)..(ROY,SAL)198509-198708

W/*PW

main67832-30090iLS120,MS12#,YS120..ROY,SAL198308-198509

main67832-30100iMS122,125..HT198509-198708

main67832-30120iMS123..EUG198312-198509

main67832-30120iMS123..EUG198308-198312

COLD SPEC

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-30140iLS120,MS12#,YS120..SED,WG198308-198708

main67861-30160iMS122,125..HT198509-198708

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iLS120,MS12#,YS120..SED,WG198308-198708

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-30140iLS120,MS12#,YS120..SED,WG198308-198708

main67862-30160iMS122,125..HT198509-198708

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-30040iMS123..SAL198308-198509

main67863-30060iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

main67863-30080iMS122..DLX198509-198708

main67863-30100iMS12#..(SED,WG)..(ROY,SAL)198509-198708

67863CCLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67868-30040iLS120,MS12#,YS120..ROY,SAL198308-198708

RR

main67869-30020iLS120,MS12#,YS120..ROY,SAL198308-198708

FR

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-30040iMS123..SAL198308-198509

main67864-30060iLS120,MS12#,YS120..(ROY,SAL)..(ARL,GEN,SAA)198308-198509

main67864-30080iMS122..DLX198509-198708

main67864-30100iMS12#..(SED,WG)..(ROY,SAL)198509-198708

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-30320iLS120,MS12#,YS120..SED,WG198308-198708

*TT,T=4.0

main68111-30330iLS120,YS120..STD198308-198708

*TEM,T=4.0

sub68111-30320

main68111-30340iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198708

BRONZE,*TT,T=4.0

main68111-30400iMS122,125..HT198509-198708

*TT,T=5.0

main68111-30410iMS122,125..HT198509-198708

BRONZE,*TT,T=5.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-30250iLS120,MS12#,YS120..SED,WG198308-198708

*TT,T=4.0

main68112-30260iLS120,YS120..STD198308-198708

*TEM,T=4.0

sub68112-30250

main68112-30270iLS120,MS12#,YS120..(ROY,SAL)..(GEN,SAA)198308-198708

BRONZE,*TT,T=4.0

main68112-30330iMS122,125..HT198509-198708

*TT,T=5.0

main68112-30340iMS122,125..HT198509-198708

BRONZE,*TT,T=5.0

68141RUN, FRONT DOOR GLASS

main68141-30120iLS120,MS12#,YS120..SED198308-198509

main68141-30140iMS122..WG198308-198509

main68141-30160iLS120,MS12#,YS120..SED198509-198708

main68141-30180iMS122..WG198509-198708

sub68141-30160

68194ACLIP(FOR FRONT DOOR BELT SEAL)

main67869-12010iLS120,MS12#,YS120..SED,WG198308-198708

sub90467-05045

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-30020iLS120,MS12#,YS120..SED,WG198308-198708

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-30030iLS120,MS12#,YS120..SED,WG198308-198708

68610CHECK ASSY, FRONT DOOR

main68610-30020iLS120,MS12#,YS120198308-198509

sub68610-30030

main68610-30030iLS120,MS12#,YS120198509-198708

68610APIN(FOR FRONT DOOR CHECK)

main68617-30010iLS120,MS12#,YS120198308-198507

sub68617-90K00

main68617-90K00iLS120,MS12#,YS120198507-198708

9017906070

main90179-06070

9095001315

main90950-01315

9165140612

main91651-40612

9351015014

main93510-15014

9352014010

main93520-14010

34 parts on this diagram · 4 diagrams in section
