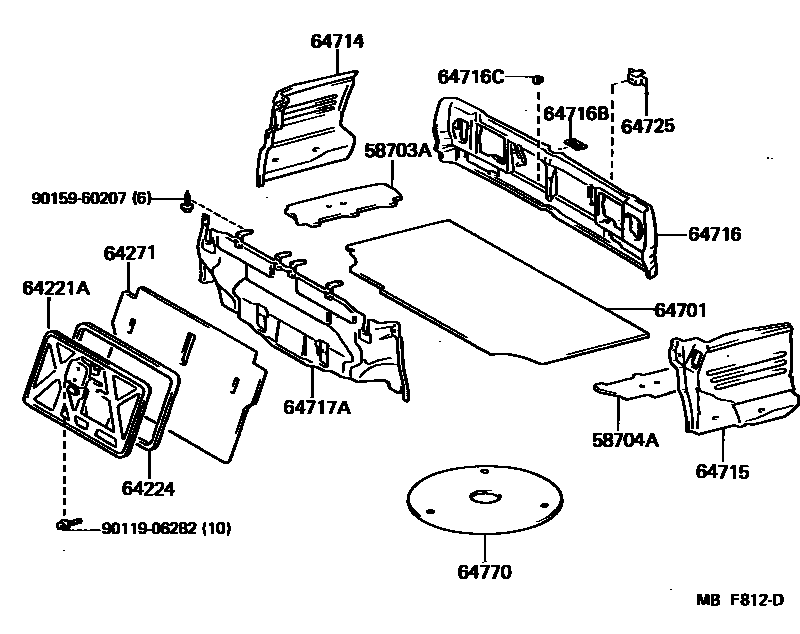

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-30020iLS120,MS12#,YS120..HT,SED198308-198708

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-30050iLS120,MS12#,YS120..HT,SED198308-198708

64221APANEL, REAR SEAT CUSHION SUPPORT

main64221-30080iMS125..4FC;LS120,MS122,123,YS120..HT,SED198308-198708

main64221-30090iMS12#..ROY..(GEN,SAA)198308-198708

W/RR SLIDE SEAT

64224PAD, REAR SEAT CUSHION SUPPORT PANEL

main64224-30020iLS120,MS12#,YS120..HT,SED198308-198708

64271BOARD, ROOM PARTITION, NO.1

main64271-30100iLS120,MS12#,YS120..HT,SED198308-198708

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-30240-03iLS120,YS120..STD198308-198509

GRAY,GRAY

sub64711-30240

main64711-30240-13iLS120,MS122,YS120..DLX,STD198509-198708

GRAY,GRAY

sub64711-30240

main64711-30250-03iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198509

GRAY,GRAY

sub64711-30250

main64711-30250-13iMS12#..SED..(ROY,SAL)198509-198708

GRAY,GRAY

sub64711-30250

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-30090-03iLS120,MS12#,YS120..SED198308-198509

GRAY,GRAY

sub64714-30090

main64714-30090-13iLS120,MS12#,YS120..HT,SED198509-198708

GRAY,GRAY

sub64714-30090

64715COVER, LUGGAGE COMPARTMENT, LH

main64715-30090-03iLS120,MS12#,YS120..SED198308-198509

GRAY,GRAY

sub64715-30090

main64715-30090-13iLS120,MS12#,YS120..HT,SED198509-198708

GRAY,GRAY

sub64715-30090

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-30050-03iLS120,MS12#,YS120..SED198308-198509

GRAY,GRAY

sub64716-30050

sub64716-30070

main64716-30050-13iLS120,MS122,YS120..DLX,STD198509-198708

GRAY,GRAY

sub64716-30050

sub64716-30070

main64716-30070iMS12#..SED..(ROY,SAL)198509-198708

main64716-30080iMS122,125..HT198509-198708

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-30010-03iLS120,MS12#,YS120..SED198308-198509

GRAY,GRAY

sub64749-30010

main64749-30010-13iLS120,MS122,YS120..DLX,STD198509-198708

GRAY,GRAY

sub64749-30010

main64749-30030iMS12#..SED..(ROY,SAL)198509-198708

main64749-30040iMS122,125..HT198509-198708

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33iLS120,MS12#,YS120..SED198509-198708

GRAY

sub90467-05004

main90467-06161-03iLS120,MS12#,YS120..SED198308-198509

GRAY

sub90467-06161

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-30100-03iLS120,MS122,123,YS120..SED..(SAL,STD)198308-198509

W/O RR COOLER,GRAY,GRAY

sub64717-30100

sub64717-30110

sub64717-30111

main64717-30100-13iLS120,MS122,YS120..DLX,STD198509-198708

W/O RR COOLER,GRAY,GRAY

sub64717-30100

sub64717-30110

sub64717-30111

main64717-30110iMS12#..SED198308-198509

W/RR COOLER

main64717-30111iMS12#..(HT,SED)..(ROY,SAL)198509-198708

64725RETAINER, LUGGAGE COMPARTMENT COVER, NO.1

main64725-30070iLS120,MS12#,YS120..HT,SED198308-198708

sub64725-95800

64770COVER ASSY, SPARE WHEEL

main64770-30050iLS120,MS12#,YS120..HT,SED198308-198708

9011906282

main90119-06282

9015960207

main90159-60207

16 parts on this diagram · 2 diagrams in section
