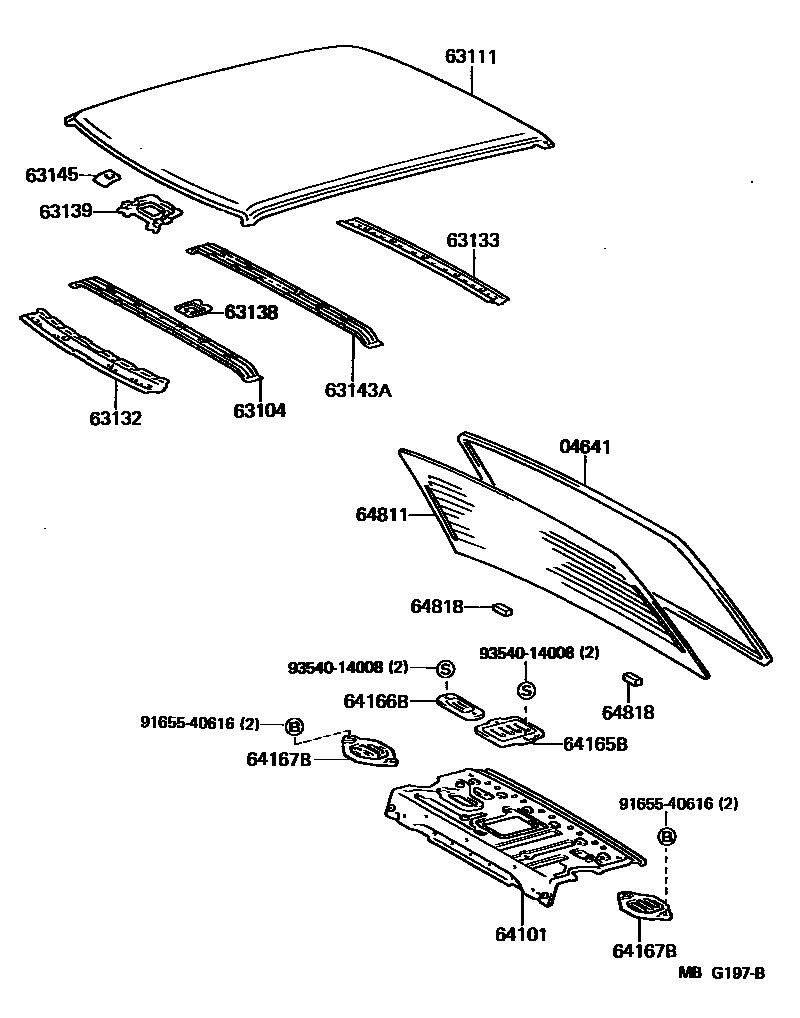

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1 0005 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iLS120,MS12#,YS120..HT,SED198308-198708

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-30050iLS120,MS12#,YS120..SED198308-198708

main63141-30080iMS122,125..HT198509-198708

main63141-91704iMS122..WG198308-198708

main63142-30020iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198708

W/MOON ROOF

63111PANEL, ROOF

main63111-30160iLS120,MS12#,YS120..SED198308-198708

main63111-30170iMS12#..SED..(EUG,GEN,SAA,SWZ)198308-198708

W/MOON ROOF

main63111-30180iMS122,125..HT198509-198708

main63111-30190iMS122,125..HT198509-198708

W/MOON ROOF

main63111-91705iMS122..WG198308-198708

63132PANEL, WINDSHIELD HEADER, INNER

main63132-30120iLS120,MS12#,YS120..SED,WG198308-198708

main63132-30130iMS122,125..HT198509-198708

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-30110iLS120,MS12#,YS120..SED198308-198708

main63133-30120iMS122,125..HT198509-198708

63138BRACKET, DOME LAMP, NO.2

main63138-30030iLS120,MS12#,YS120..SED198308-198708

main63138-30040iMS122,125..HT198509-198708

main63138-91701iMS122..WG198308-198708

63139BRACKET, DOME LAMP, NO.3

main63137-30070iLS120,MS12#,YS120..SED..(ROY,SAL)198308-198708

63143AREINFORCEMENT, ROOF PANEL

main63143-30050iMS122,125..HT198509-198708

main63143-30060iLS120,MS12#,YS120..SED198308-198708

63145REINFORCEMENT, WINDSHIELD HEADER INNER PANEL

main63145-30040iLS120,MS12#,YS120..SED,WG198308-198708

main63145-30050iMS122,125..HT198509-198708

64101PANEL SUB-ASSY, UPPER BACK

main64101-30130iLS120,MS12#,YS120..SED..(EUG,GEN,SAA,SWZ)198308-198509

sub64101-30140

main64101-30140iMS123..ARL198308-198708

main64101-30150iMS122,125..HT198509-198708

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-30010iLS120,MS122,123,YS120..(HT,SED)..(DLX,SAL,STD)198308-198708

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-30010iLS120,MS122,123,YS120..(HT,SED)..(DLX,SAL,STD)198308-198708

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64167-30010iLS120,MS122,YS120..DLX,STD198308-198708

64811GLASS, BACK WINDOW

main64801-30210iLS120,MS12#,YS120..SED198308-198708

*EHTT,T=4.0

main64801-30220iLS120,YS120..STD198308-198708

*EHT,T=4.0

sub64801-30210

main64801-30240iMS122,125..SED..(ROY,SAL)198308-198708

BRONZE,*EHTT,T=4.0

main64801-30280iMS122,125..HT198509-198708

*EHTT,T=4.0

main64801-30290iMS122,125..HT198509-198708

BRONZE,*EHTT,T=4.0

main64811-30390iLS120,MS122,YS120..SED..(SAL,STD)198308-198708

*TT,T=4.0

main64811-30400iLS120,YS120..STD198308-198708

*TEM,T=4.0

64818SPACER, BACK WINDOW GLASS

main64818-30050iLS120,MS12#,YS120..HT,SED198308-198708

9165540616

main91655-40616

9354014008

main93540-14008

17 parts on this diagram · 5 diagrams in section
