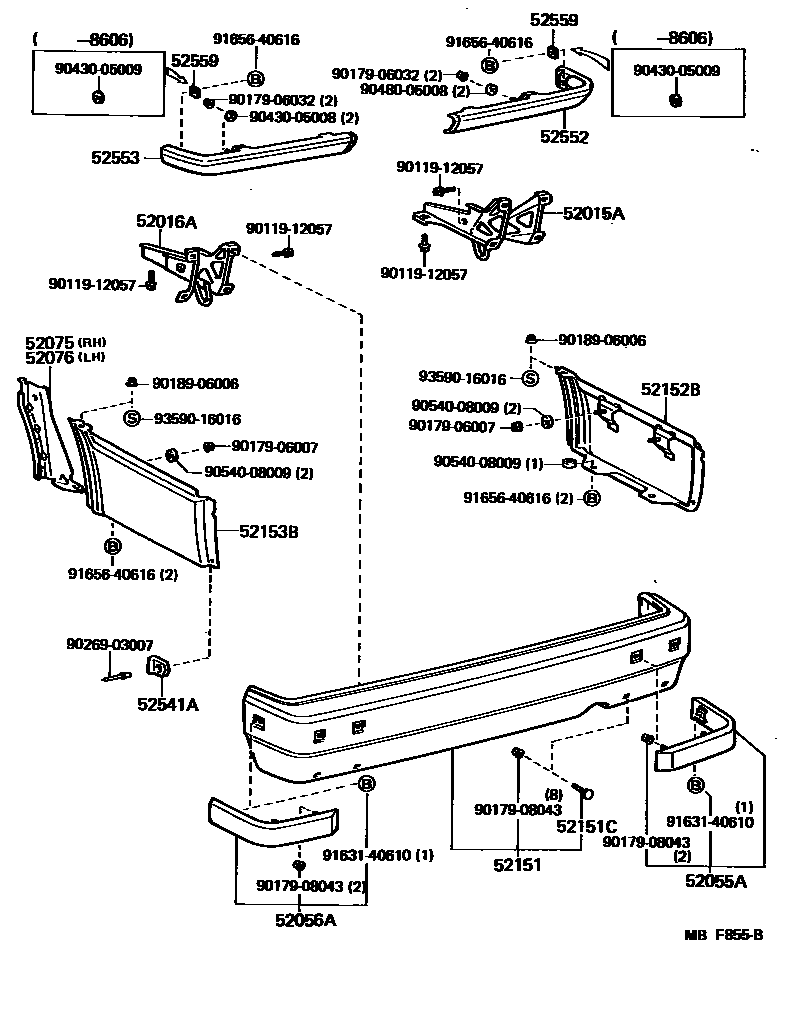

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-30070iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-30070iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52055APAD SUB-ASSY, REAR BUMPER, RH

main52055-39055iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52056APAD SUB-ASSY, REAR BUMPER, LH

main52056-39025iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH

main52075-30010iLS120,MS12#,YS120..HT,SED198308-198708

main52075-91701iMS122..WG198308-198708

52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH

main52076-30010iLS120,MS12#,YS120..HT,SED198308-198708

main52076-91701iMS122..WG198308-198708

52151BUMPER ASSY, REAR

main52151-30180iLS120,MS122,YS120..SED..(DLX,SAL,STD)..GEN198611-198708

main52151-39125iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198611

sub52151-30180

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08031iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52152BEXTENSION, REAR BUMPER, RH

main52106-30010iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

main52152-30902iLS120,MS122,YS120..(DLX,STD)..GEN198308-198708

W/*UB

main52152-30903iMS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)198308-198708

W/*UB

main52152-30904iMS122..WG198308-198708

52153BEXTENSION, REAR BUMPER, LH

main52107-30030iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

main52153-30902iLS120;YS120..STD198308-198708

W/*UB

main52153-30903iMS12#,YS120..(HT,SED)..(4FC,4H,4HC,5F)..(DLX,ROY,SAL)198308-198708

W/*UB

main52153-30904iMS122..WG198308-198708

52541APROTECTOR, REAR BUMPER

main52541-30030iYS120..STD;LS120,MS122..SED..(DLX,SAL,STD)..GEN198308-198708

52552FILLER, REAR BUMPER, RH

main52506-30010iMS123,125..ROY198308-198509

main52506-30011iMS123,125..SED198509-198708

main52506-30020iMS125..RHD..4FC198410-198708

W/*LPL=LOWER LIGHTING

main52506-30020iLS120,MS122,YS120..SED198308-198708

main52506-30020iMS123..RHD..4FC..GEN198406-198408

BRUNEI SPEC

main52506-30030iMS122,125..HT198509-198708

52553FILLER, REAR BUMPER, LH

main52507-30010iMS123,125..ROY198308-198509

main52507-30011iMS123,125..SED198509-198708

main52507-30020iMS125..RHD..4FC198410-198708

W/*LPL=LOWER LIGHTING

main52507-30020iMS123..RHD..4FC..GEN198406-198408

BRUNEI SPEC

main52507-30020iMS123..SAL198308-198708

main52507-30030iMS122,125..HT198509-198708

52559SEAL, REAR BUMPER FILLER

main52559-30020iLS120,MS12#,YS120198606-198708

sub52559-30010

9011912057

main90119-12057

9017906007

main90179-06007

9017906032

main90179-06032

9017908043

main90179-08043

9018906006

main90189-06006

9026903007

main90269-03007

9043005008

main90430-05008

9043005009

main90430-05009

9048005008

main90480-05008

9054008009

main90540-08009

9163140610

main91631-40610

9165640616

main91656-40616

9359016016

main93590-16016

27 parts on this diagram · 4 diagrams in section
