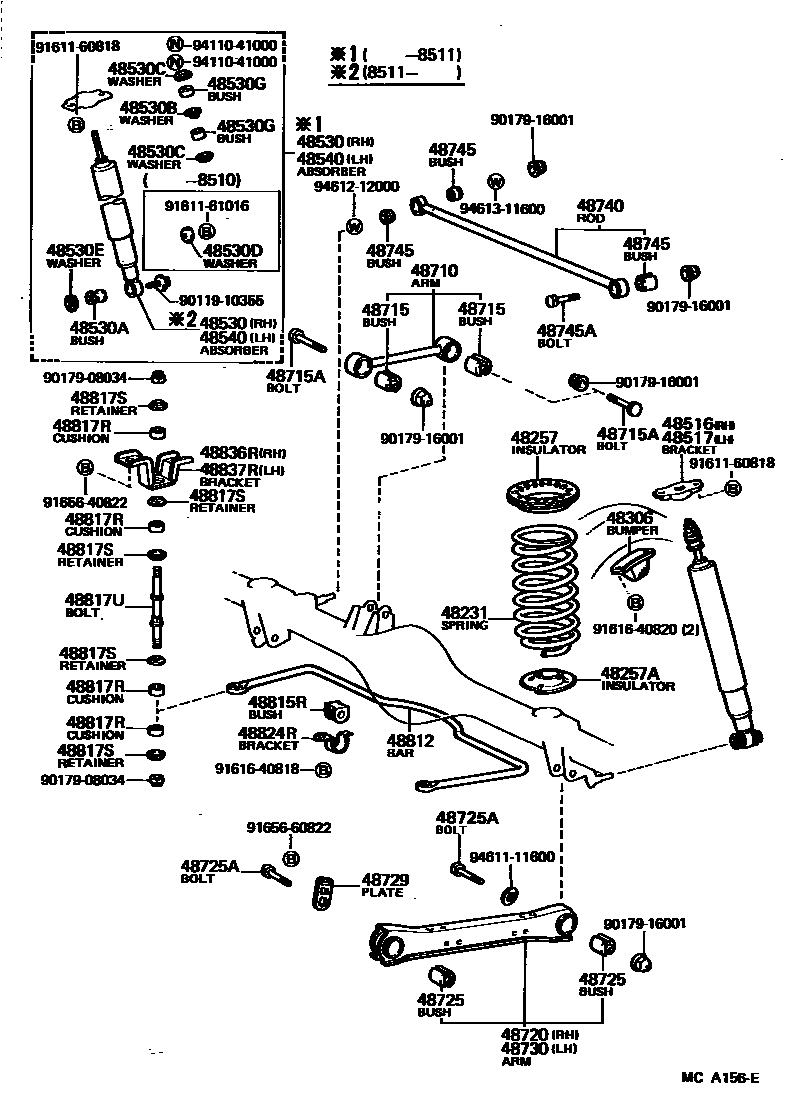

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

48231SPRING, COIL, REAR

main48231-30340iLS120,YS120198308-198708

main48231-30450iMS122..HT,SED198308-198708

sub48231-30440

main48231-30460iMS123,125198308-198708

main48231-30480iMS125..RHD198612-198708

HONG KONG SPEC

sub48231-30640

main48231-31070iMS122..WG198308-198708

48257INSULATOR, REAR COIL SPRING

main48257-30020iLS120,MS122,YS120198308-198708

main48257-30040iMS123,125198308-198708

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-30010iLS120,MS122,YS120198308-198708

main48258-30020iMS123,125198308-198708

48306BUMPER SUB-ASSY, REAR SPRING

main48306-30060iYS120;MS122..WG198308-198708

main48306-30060iMS122..DLX..GEN198510-198708

TAXI SPEC

main48306-30070iLS120,MS122..HT,SED198308-198708

sub48306-30110

main48306-30080iMS123,125198308-198708

sub48306-30140

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-30030iLS120,MS122,YS120198308-198708

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48516-30030iLS120,MS122,YS120198308-198708

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-30280iMS123,125198511-198708

sub48531-39575

main48531-30300iLS120,MS122,YS120..HT,SED198511-198708

sub48531-39226

sub48531-39565

main48531-30330iMS122..WG198511-198708

sub48531-39535

sub48531-39545

main48531-30350iMS125..RHD198612-198708

HONG KONG SPEC

sub48531-39705

main48531-39535iMS122..WG198308-198511

sub48531-39536

main48531-39555iMS122,YS120..HT,SED198308-198511

sub48531-39565

main48531-39565iLS120198308-198511

sub48531-39566

main48531-39575iMS123,125198308-198511

sub48531-39576

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iLS120,MS12#,YS120198308-198708

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02007iLS120,MS122,YS120198308-198708

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002iLS120,MS122,YS120198308-198708

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007iLS120,MS12#,YS120198308-198510

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iLS120,MS12#,YS120198308-198708

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002iLS120198308-198708

LWR

main90948-01003iLS120198308-198708

UPR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-30280iMS123,125198511-198708

sub48531-39575

main48531-30300iLS120,MS122,YS120..HT,SED198511-198708

sub48531-39226

sub48531-39565

main48531-30330iMS122..WG198511-198708

sub48531-39535

sub48531-39545

main48531-30350iMS125..RHD198612-198708

HONG KONG SPEC

sub48531-39705

main48531-39535iMS122..WG198308-198511

sub48531-39536

main48531-39555iMS122,YS120..HT,SED198308-198511

sub48531-39565

main48531-39565iLS120198308-198511

sub48531-39566

main48531-39575iMS123,125198308-198511

sub48531-39576

48710ARM ASSY, UPPER CONTROL

main48710-30060iMS122..WG198308-198708

main48710-30060iMS122..DLX..GEN198510-198708

TAXI SPEC

main48710-30070iYS120198308-198708

sub48710-30120

main48710-30080iMS122..HT,SED198308-198708

sub48710-30130

48715BUSH, UPPER CONTROL ARM

main48702-30060iMS122..DLX..GEN198510-198708

TAXI SPEC

main48702-30060iMS122..WG198308-198708

main48702-30070iLS120198308-198708

sub48702-30130

main48702-30080iMS122..HT,SED198308-198708

sub48702-30140

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-16018iLS120,MS122,YS120198308-198708

sub90105-16030

48720ARM ASSY, LOWER CONTROL, RH

main48720-30080iMS122..WG198308-198708

main48720-30080iMS122..DLX..GEN198510-198708

TAXI SPEC

main48720-30090iYS120198308-198708

main48720-30100iMS122..HT,SED198308-198708

48725BUSH, LOWER CONTROL ARM

main48702-30060iMS122..DLX..GEN198308-198708

main48702-30070iYS120198308-198708

sub48702-30130

main48702-30080iMS122..HT,SED198308-198708

sub48702-30140

main48725-30020iMS123,125198308-198708

INNER

main48725-30030iMS123,125198308-198708

OUTER

main48725-30040iMS125..RHD198612-198708

OUTER,HONG KONG SPEC

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-16016iLS120,MS122,YS120198308-198708

FRAME SIDE

main90105-16018iLS120,MS122,YS120198308-198708

HOUSING SIDE

sub90105-16030

48729PLATE, LOWER CONTROL ARM BOLT LOCK

main48729-30020iLS120,MS122,YS120198308-198708

48730ARM ASSY, LOWER CONTROL, LH

main48720-30080iMS122..WG198308-198708

main48720-30080iMS122..DLX..GEN198510-198708

TAXI SPEC

main48720-30090iLS120198308-198708

main48720-30100iMS122..HT,SED198308-198708

48740ROD ASSY, REAR LATERAL CONTROL

main48740-30050iLS120,MS122,YS120198308-198708

48745BUSH, LATERAL CONTROL ROD

main48706-22010iLS120,MS122,YS120198308-198708

FRAME X ROD

main90385-20048iLS120,MS122,YS120198308-198708

HOUSING X ROD

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-16017iLS120,MS122,YS120198308-198708

48812BAR, STABILIZER, REAR

main48812-30090iMS122..HT,SED198308-198708

main48812-30130iLS120;MS122..WG198308-198708

48815RBUSH, STABILIZER(FOR REAR)

main48815-14060iLS120;MS122..WG198308-198708

main48815-30060iMS123,125198308-198708

main48815-30070iMS122..HT,SED198308-198708

main48815-30070iMS125..RHD198612-198708

HONG KONG SPEC

48817RCUSHION, STABILIZER(FOR REAR)

main48817-10010iLS120,MS12#198308-198708

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iLS120,MS12#198308-198708

T=1.2

main90948-02025iLS120,MS12#198308-198708

T=1.0

48817UBOLT(FOR REAR STABILIZER)

main48819-12010iLS120,MS122198308-198708

main91112-41040iMS123,125198308-198708

sub91111-41040

48824RBRACKET, STABILIZER(FOR REAR)

main48824-22010iLS120,MS122198308-198708

48836RBRACKET, REAR STABILIZER END, RH

main48836-30020iLS120,MS122198308-198708

48837RBRACKET, REAR STABILIZER END, LH

main48837-30020iLS120,MS122198308-198708

9011910355

main90119-10355

9017908034

main90179-08034

9017916001

main90179-16001

9161160818

main91611-60818

9161161016

main91611-61016

9161640818

main91616-40818

9161640820

main91616-40820

9165640822

main91656-40822

9165660822

main91656-60822

9411041000

main94110-41000

9461111600

main94611-11600

9461212000

main94612-12000

9461311600

main94613-11600

46 parts on this diagram · 2 diagrams in section
