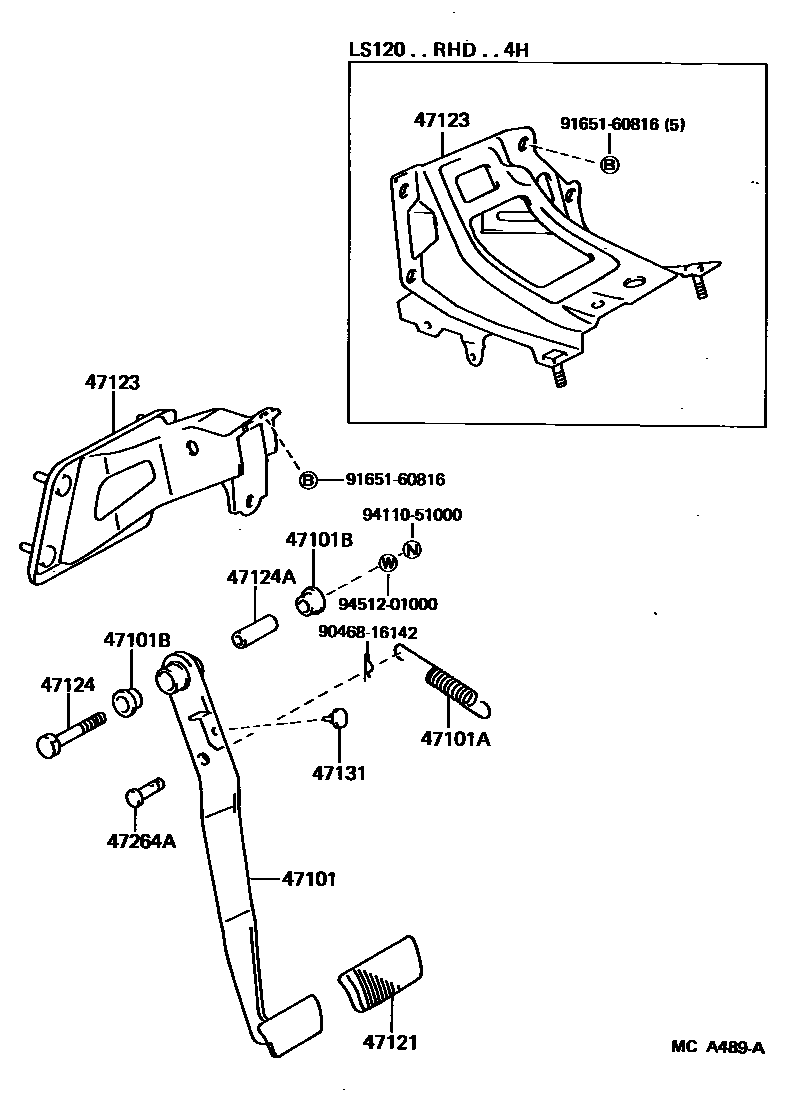

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-30230iLS120,MS122,YS120..RHD..MTM198308-198708

main47101-30240iMS12#..RHD..ATM198308-198708

main47101-30250iLS120,MS122,123,YS120..LHD..MTM198308-198708

main47101-30260iMS12#..LHD..4FC198308-198708

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-12026iLS120,MS12#,YS120198308-198708

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iLS120,MS12#,YS120198605-198708

main90386-13192iLS120,MS12#,YS120198308-198605

47121PAD, BRAKE PEDAL

main31321-30040iLS120,MS122,123,YS120..MTM198308-198708

main47121-30050iMS12#..ATM198308-198708

47123BRACKET, BRAKE PEDAL

main55106-30160iLS120..RHD..4H198308-198708

main55106-30180iLS120,MS12#,YS120..RHD..(4F,4FC,4HC,5F)198308-198708

main55106-30190iLS120,MS12#,YS120..LHD198308-198708

47124SHAFT, BRAKE PEDAL

main90101-10039iLS120,MS12#,YS120..RHD198308-198708

main90101-10480iLS120,MS12#,YS120..LHD198308-198708

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iLS120,MS12#,YS120..RHD198308-198708

main90387-10128iLS120,MS12#,YS120..LHD198308-198708

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLS120,MS12#,YS120198308-198603

main90541-06032iLS120,MS12#,YS120198603-198708

sub90541-06036

47264APIN(FOR PUSH ROD)

main90249-10064iLS120,MS12#,YS120198308-198708

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
