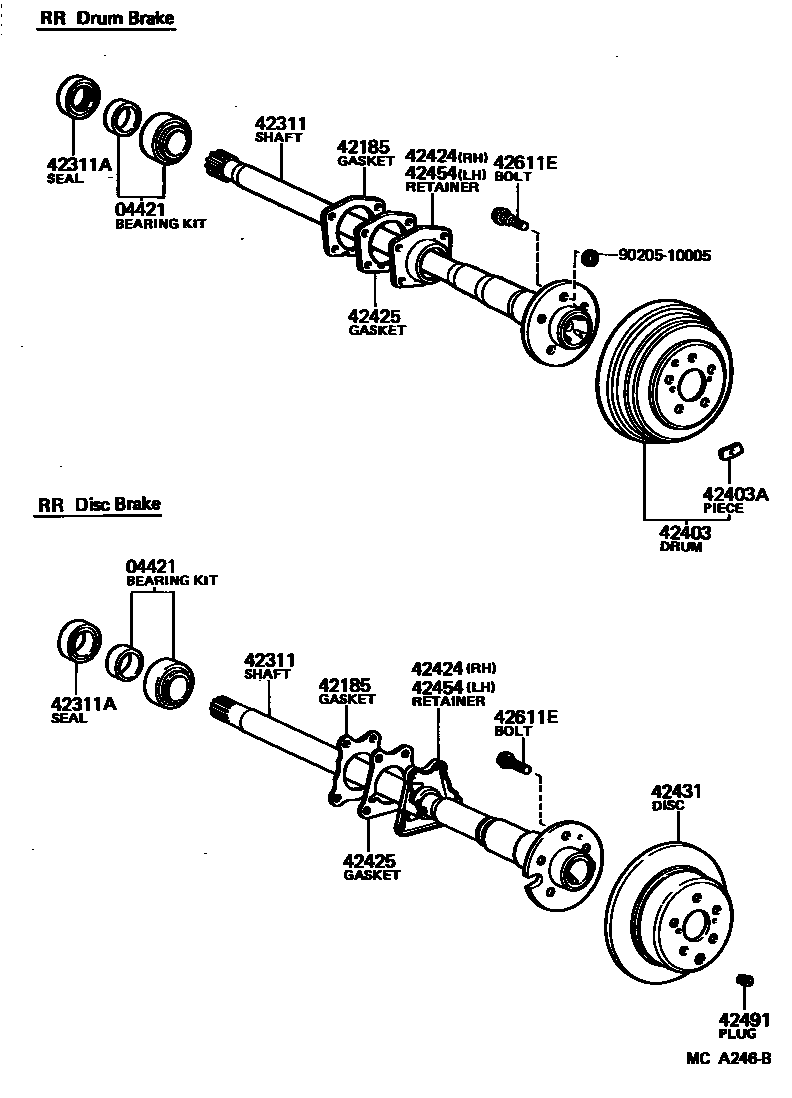

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-30030iLS120,MS122,YS120..(HT,SED)..(DLX,SAL,STD)¥4,850198308-198708

sub04421-30031¥4,830

main04421-30040iMS122..ROY¥16,900198308-198708

sub04421-30060¥5,700

main04421-30051iMS122..WG¥4,500198308-198708

42185GASKET, REAR AXLE HOUSING END

main42185-22030iMS123,125¥250198308-198708

main42185-30061iLS120,MS122,YS120..DLX,SAL,STD¥270198308-198708

main42185-30090iMS122..ROY¥320198308-198708

42311SHAFT, REAR AXLE

main42301-30010iMS123,125¥22,400198308-198708

main42311-30070iLS120,MS122,YS120..(HT,SED)..(DLX,SAL,STD)¥22,900198308-198708

sub42311-30071¥22,400

main42311-30080iMS122..ROY¥22,900198308-198708

sub42311-30081¥22,900

main42311-31020iMS122..WG¥22,900198308-198708

sub42311-31021¥22,800

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009iMS123,125¥290198308-198708

main90311-52059iLS120,MS122,YS120..HT,SED¥320198308-198708

main90311-58118iMS122..WG¥430198308-198708

42403DRUM SUB-ASSY, REAR BRAKE

main42431-30111iLS120,MS122,YS120..DLX,SAL,STD¥12,700198308-198708

sub42431-30110¥14,400

sub42431-30230¥12,800

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01100iLS120,MS122,YS120..DLX,SAL,STD¥140198308-198708

40.5G,40.5G

main90937-01117iLS120,MS122,YS120..DLX,SAL,STD¥130198308-198708

10G,10G

main90937-01118iLS120,MS122,YS120..DLX,SAL,STD¥130198308-198708

20G,20G

main90937-01119iLS120,MS122,YS120..DLX,SAL,STD¥130198308-198708

30G,30G

main90937-01146iLS120,MS122,YS120..SAL,STD¥250198308-198402

25G,50G

main90937-01178iLS120,MS122,YS120..SAL,STD¥240198308-198402

56G,56G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42405-30010iMS122..ROY¥2,240198308-198708

main42424-30040iLS120,MS122,YS120..(HT,SED)..(DLX,SAL,STD)¥620198308-198708

main42424-31010iMS122..WG¥610198308-198708

42425GASKET, REAR AXLE BEARING RETAINER

main42425-30031iLS120,MS122,YS120..DLX,SAL,STD¥230198308-198708

main42425-30040iMS122..ROY¥230198308-198708

42431DISC, REAR

main42431-30100iMS122..ROY¥11,300198308-198708

main42431-40070iMS123,125¥18,100198308-198708

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42406-30010iMS122..ROY¥2,280198308-198708

main42424-30040iLS120,MS122,YS120..(HT,SED)..(DLX,SAL,STD)¥620198308-198708

main42424-31010iMS122..WG¥610198308-198708

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iMS123;MS122,125..ROY¥140198308-198708

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iLS120,MS12#,YS120¥230198308-198708

9020510005

main90205-10005¥120

13 parts on this diagram · 3 diagrams in section
