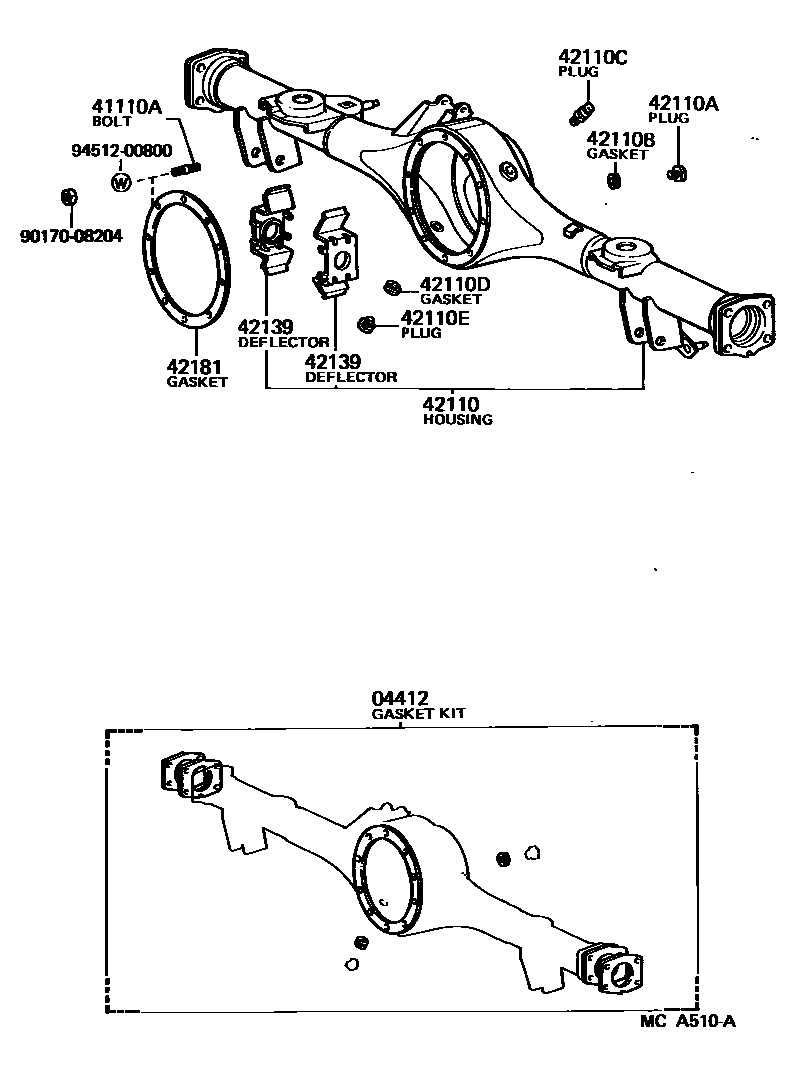

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-30010iLS120,MS122,YS120..DLX,SAL,STD198308-198703

sub04412-30020

main04412-30020iLS120,MS122,YS120..DLX,SAL,STD198703-198708

sub04412-30060

main04412-30030iMS122..ROY198308-198708

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14122iMS122,YS120..MTM198308-198708

*FGR=43:11=3.909,*AXC=F312,*FGR=43:11

main41110-20230iMS122..SED..ATM198308-198708

*FGR=41:10=4.100,*AXC=F292,*FGR=41:10

main41110-30180iMS122..HT..4FC198509-198708

*FGR=43:10=4.300,*AXC=F282,*FGR=43:10

main41110-30230iMS123..5F198308-198509

*AXC=F302,*FGR=41:11

main41110-30240iMS125..SAA198509-198708

*AXC=F312,*FGR=43:11

main41110-30250iMS123..ARL,GEN,SAA,SWZ198308-198509

*AXC=F292,*FGR=41:10

sub41110-30350

main41110-30320iLS120..4F198308-198708

*FGR=43:11=3.909,*AXC=F312,*FGR=43:11

main41110-30330iLS120..RHD..4H198308-198708

*FGR=41:10=4.100,*AXC=F292,*FGR=41:10

main41110-30340iLS120..RHD..4H198308-198708

*FGR=43:10=4.300,*AXC=F282,*FGR=43:10

main41110-30350iMS123..4FC..EUG198308-198708

*AXC=F292,*FGR=41:10

main41110-30360iMS125198410-198708

*AXC=F312,*FGR=43:11

main41110-30370iMS123198509-198708

*AXC=F282,*FGR=43:10

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iLS120,MS122,YS120198308-198708

S=12 & 15,L=34

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-30240iMS122..ROY198308-198708

main42110-30250iLS120,MS122,YS120..(HT,SED)..(DLX,SAL,STD)198308-198708

main42110-30260iMS122..WG198308-198708

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iLS120,MS122,YS120198606-198708

main90341-18049iLS120,MS122,YS120198308-198606

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iLS120,MS122,YS120198308-198708

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iLS120,MS122,YS120198308-198708

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iLS120,MS122,YS120198308-198708

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iLS120,MS122,YS120198308-198708

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-30010iLS120,MS122,YS120198308-198708

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30020iLS120,MS122,YS120198308-198708

9017008204

main90170-08204

9451200800

main94512-00800

13 parts on this diagram · 3 diagrams in section
