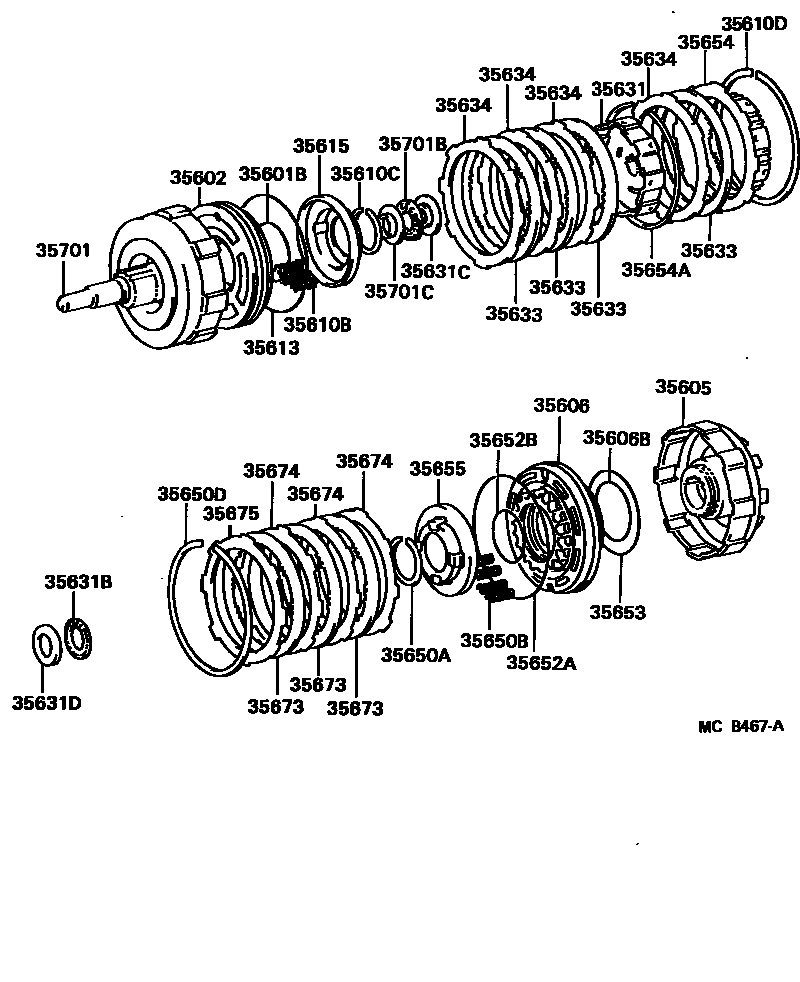

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601BRING, O (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR
35606PISTON SUB-ASSY, REAR CLUTCH
35606BRING (FOR REAR CLUTCH PISTON INNER)
35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35615SEAT, CLUTCH PISTON RETURN SPRING
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)
35634PLATE, FRONT CLUTCH
T=1.8,T=1.8
T=2.0,T=2.0
T=1.4,T=1.4
35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)
35650DRING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH)
35652PISTON, REAR CLUTCH, NO.2
35652ARING (FOR REAR CLUTCH OUTER)
35652BRING (FOR REAR CLUTCH PISTON INNER)
35653RING, REAR CLUTCH OIL SEAL, OUTER
sub90301-83001
35654HUB, REAR CLUTCH
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35655SEAT, REAR CLUTCH PISTON RETURN SPRING
35673DISC, REAR CLUTCH
sub35677-30160
35674PLATE, REAR CLUTCH
T=1.4
T=2.3
35675FLANGE, REAR CLUTCH
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
32 parts on this diagram · 3 diagrams in section
