SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29115iMS123..5F198308-198509

N=33,MARK 33:11

main33403-29125iLS120..SAL198308-198509

N=32,MARK 32:10

main33403-29145iLS120..4F198308-198708

N=31,MARK 31:10

main33482-39025iLS120..RHD..4H198308-198708

N=19,MARK 19:6,N=19

main33482-39045iLS120..RHD..4H198308-198708

N=20,MARK 20:6,N=20,HONG KONG SPEC

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iLS120,MS122,YS120..LHD..4H198308-198708

main33404-35010iLS120..RHD..4H198308-198708

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLS120..RHD..4H198308-198708

main96711-24030iLS120,MS122,YS120..LHD..4H198308-198708

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLS120,MS122,123,YS120..MTM198308-198708

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLS120,MS122,123,YS120..MTM198308-198708

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLS120,MS122,123,YS120..MTM198308-198708

9161140814

main91611-40814

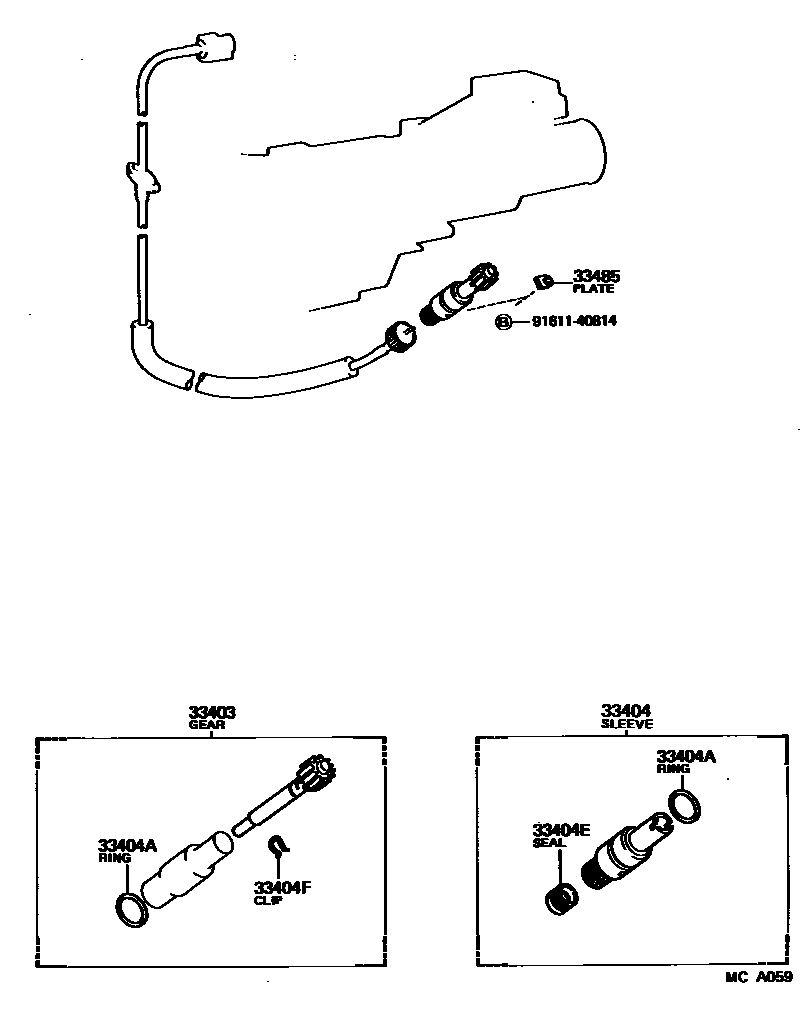

7 parts on this diagram · 1 diagram in section
