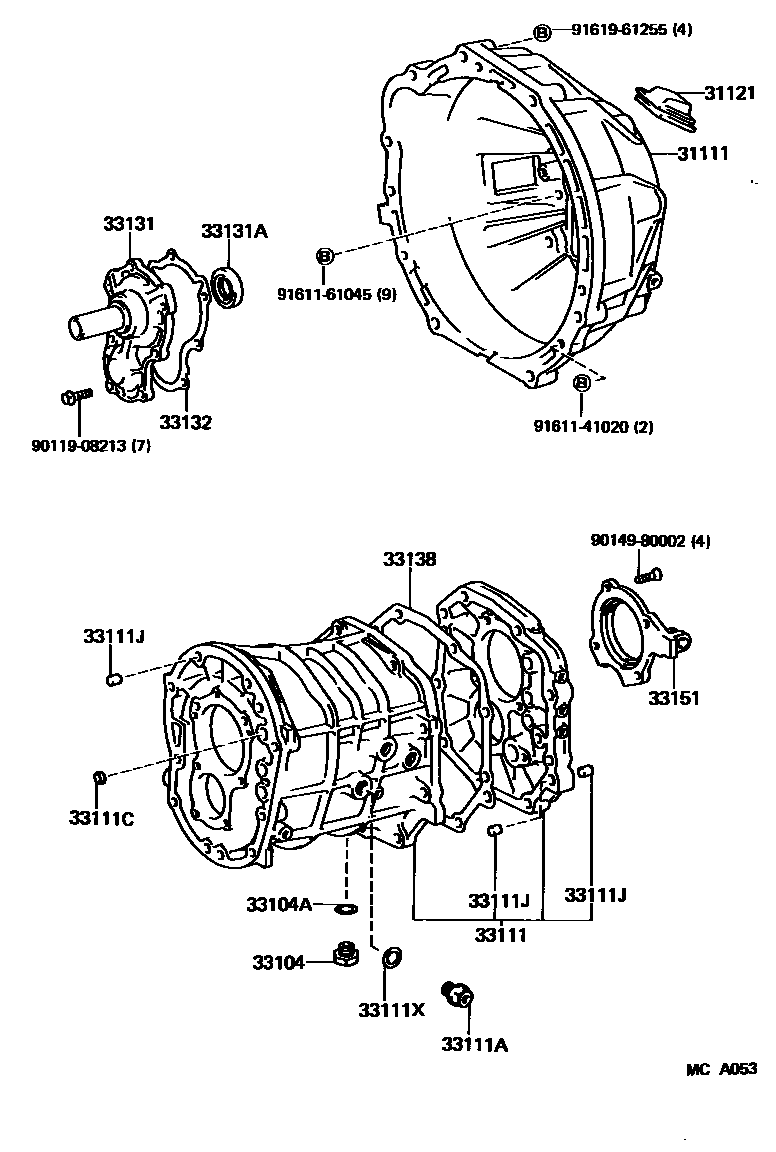

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1

31111HOUSING, CLUTCH

main31111-22091iMS122,123..MTM198308-198708

main31111-22111iLS120198308-198708

sub31111-22112

main31111-30190iYS120198308-198708

31121COVER, CLUTCH HOUSING, NO.1

main31121-30040iYS120198308-198708

sub31121-35020

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iLS120,MS122,123,YS120..MTM198308-198708

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iYS120;LS120..4F,5F198308-198509

sub90430-18008

main90430-18008iMS122,123..MTM198408-198708

33111CASE, MANUAL TRANSMISSION

main33101-22021iLS120,MS12#,YS120..4F,5F198308-198708

sub33101-22031

main33101-22030iLS120,YS120..LHD..4H198408-198708

sub33101-22031

main33101-30050iLS120..RHD..4H198308-198401

sub33101-30061

sub33131-30070

sub33132-30060

sub90363-32016

sub90520-76002

main33101-30061iLS120..RHD..4H198401-198708

sub33101-30062

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iLS120,MS122,123,YS120..4F,5F198308-198708

main90341-18006iLS120..RHD..4H198308-198708

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLS120,MS122,123,YS120..MTM198308-198708

OD=14

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLS120,MS122,123,YS120..MTM198308-198708

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iYS120;LS120..4F,5F198308-198509

sub90430-18008

main90430-18008iMS122,123..MTM198408-198708

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iLS120,MS122,YS120..LHD..4H198308-198708

sub33131-22021

main33131-30050iLS120..RHD..4H198308-198401

main33131-30061iLS120..RHD..4H198401-198708

sub33131-30062

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iLS120,MS122,123,YS120..MTM198308-198708

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iLS120,MS122,YS120..LHD..4H198308-198708

main33132-30050iLS120..RHD..4H198308-198401

main33132-30060iLS120..RHD..4H198401-198708

sub33132-30061

33138GASKET, INTERMEDIATE PLATE

main33138-30010iLS120..RHD..4H198308-198708

main33142-22010iLS120,MS122,YS120..LHD..4H198308-198708

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iLS120,MS122,YS120..LHD..4H198308-198708

main33151-30040iLS120..RHD..4H198308-198708

9011908213

main90119-08213

9014980002

main90149-80002

9161141020

main91611-41020

9161161045

main91611-61045

9161961255

main91619-61255

19 parts on this diagram · 4 diagrams in section
