FUEL PUMP & PIPE

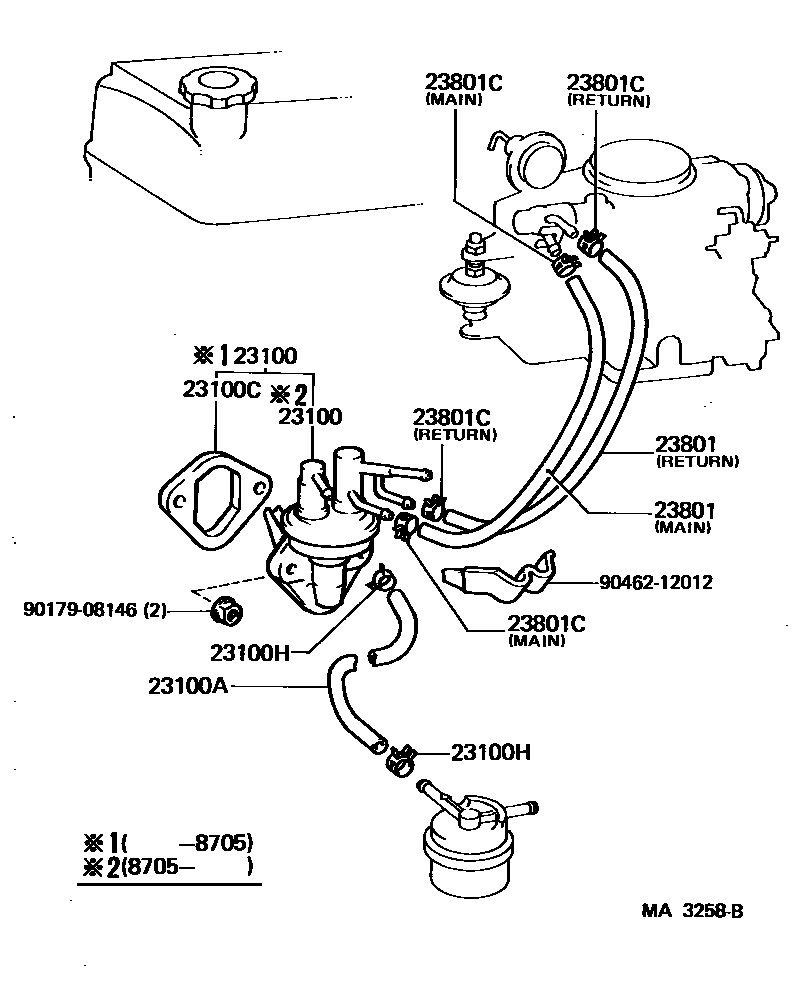

Parts diagram
23100PUMP ASSY, FUEL
main23100-43021i198705-198708
main23100-49245i198308-198705
sub23100-43021
main23100-79035i198308-198708
sub23100-79036
23100AHOSE, FUEL
main90445-08236i198308-198310
sub90445-14122
main90445-14122i198310-198708
sub95333-08040
main95332-08040i198308-198701
*H,L=360
sub95333-08040
main95333-08036i198701-198702
sub95333-08040
main95333-08040i198702-198708
sub95337-08040
23100CINSULATOR, FUEL PUMP
main90923-06001i198308-198708
sub90923-06009
main90923-06007i198308-198708
sub90923-06012
23100HCLIP(FOR FUEL HOSE)
main96132-30800i198308-198708
sub96132-51300
23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
main23811-71010i198308-198404
sub23811-71011
main23811-71011i198404-198708
main95332-06040i198308-198610
L=400(*H,L=380),RETURN
sub95333-06040
main95332-08040i198308-198610
L=400(*H,L=360),MAIN
sub95333-08040
main95333-06038i198610-198702
L=400(*H,L=380),RETURN
sub95333-06040
main95333-06040i198702-198708
L=400,RETURN
main95333-08036i198610-198702
L=400(*H,L=360),MAIN
sub95333-08040
main95333-08040i198702-198708
L=400,MAIN
sub95337-08040
23801CCLIP(FOR CARBURETOR FUEL HOSE)
main96132-30600i198308-198708
RETURN
sub96132-51100
main96132-30800i198308-198708
MAIN
sub96132-51300
9017908146
main90179-08146
9046212012
main90462-12012

8 parts on this diagram · 2 diagrams in section
