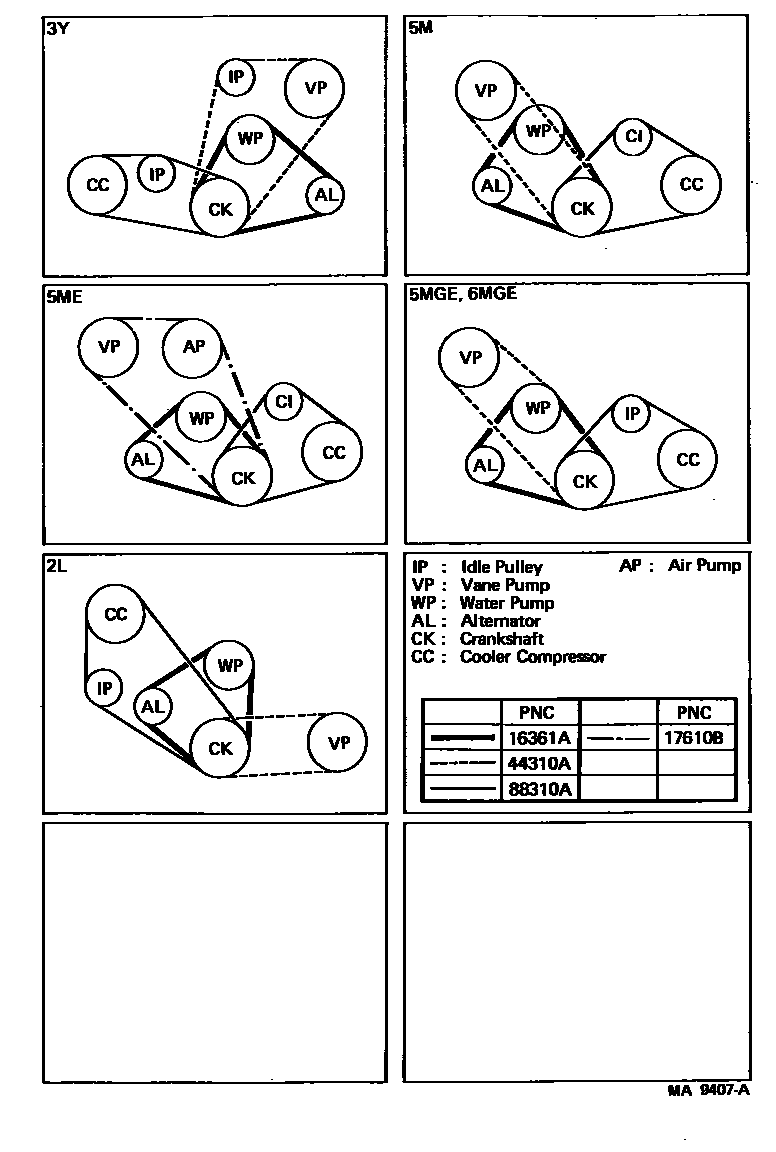

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i2L..LS120198308-198708

DOUBLE V BELTS

sub90916-02281

main99364-50830i3Y..YS120198308-198708

sub99364-80830

main99367-00920i5M#,6MGE..MS12#198308-198708

17610BBELT, V(FOR AIR PUMP)

main99332-01395i5ME..MS123198308-198509

44310ABELT, V(FOR VANE PUMP)

main90916-02078iMS122198308-198708

sub90916-02465

main90916-02107iMS123,125198308-198708

sub99322-01195

main99332-00850iLS120198308-198708

L=850

main99332-01055iYS120..LHD198308-198708

L=1055

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00910iYS120198308-198708

sub99332-00910

main99322-00940iMS122..SED,WG198308-198708

main99322-00950iMS123,125198308-198509

sub99322-50950

main99322-01240iLS120198703-198708

main99322-01250iLS120198308-198708

L=1250

sub99322-11250

main99322-50950iMS122..RHD..4FC..SAL198401-198708

W/*BV,SINGAPORE SPEC

main99322-50950iMS122..HT;MS123,125198509-198708

4 parts on this diagram · 1 diagram in section
