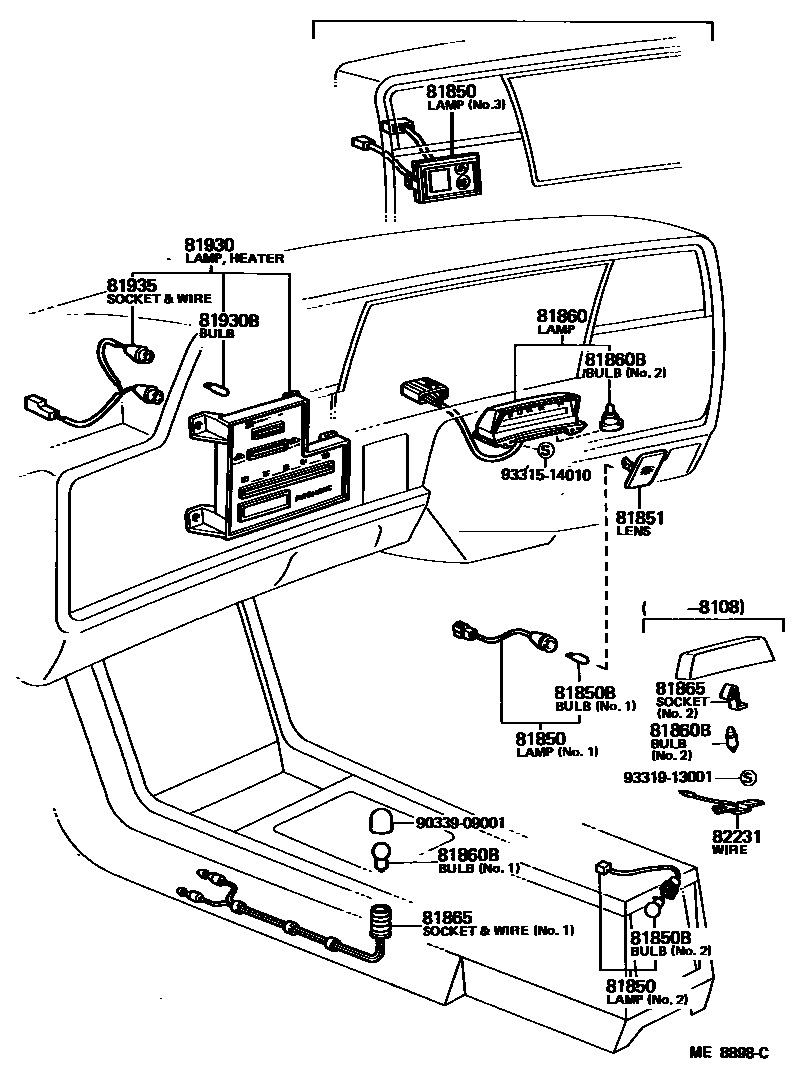

INDICATOR

81850LAMP ASSY, INDICATOR

main81850-12050iLS110,MS11#,RS110..RHD..(DLX,ROY,SAL)..(ARL,GEN)197909-198108

NO.1

main81850-30050iLS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)197909-198307

NO.2

main81850-30070iMS112..LHD..SAL..EFI197909-198307

NO3,WEST GERMANY OR FRANCE

main81850-30080iMS112..WG..EFI198008-198307

NO3,WEST GERMANY OR FRANCE

main81850-30100iLS110,MS112..SED..EUR198108-198307

NO.3

main81850-30120iLS110,MS112..RHD..(DLX,ROY,SAL)198108-198307

NO.1

81850BBULB, INDICATOR LAMP

main90981-11018iLS110,MS11#,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)197909-198307

12V 1.2W W/O SOCKET,NO.2

main99132-12034iLS110,MS112..RHD..(DLX,ROY,SAL)197909-198307

12V 3.4W,12V 3.4W,NO.1

81851LENS, INDICATOR LAMP

main55497-30010iMS112..LHD..4HC..DLX;LS110,MS11#,RS110..RHD..(DLX,ROY,SAL)..(ARL,GEN)197909-198307

81860LAMP ASSY, TRANSMISSION INDICATOR

main81823-30010-03iMS112..RHD..ATM198108-198307

GRAY,GRAY,TRIM1#

sub81823-30010

main81823-30010-04iMS112..RHD..ATM198108-198307

BLUE,BLUE,TRIM8#

sub81823-30010

main81823-30010-05iMS112..RHD..ATM198108-198307

BEIGE,BEIGE,TRIM4#

sub81823-30010

main81823-30030-03iLS110,MS112..LHD..ATM198108-198307

GRAY,GRAY,TRIM1#

sub81823-30030

main81823-30030-04iLS110,MS112..LHD..ATM198108-198307

BLUE,BLUE,TRIM8#

sub81823-30030

main81823-30030-05iLS110,MS112..LHD..ATM198108-198307

BEIGE,BEIGE,TRIM4#

sub81823-30030

81860BBULB, TRANSMISSION INDICATOR LAMP

main90981-11006iMS11#..3HC,4HC197909-198108

12V 3W,12V 3W,NO.2

main90981-11024iLS110,MS112..ATM198108-198307

12V 1.4W,12V 1.4W,NO.2

main99132-11034iLS110,MS11#..3FC,4FC197909-198307

12V 3.4W,12V 3.4W,NO.1

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35906-30040iLS110,MS11#..3FC,4FC197909-198307

NO.1

sub35906-12030

main35963-30030iMS11#..3HC,4HC197909-198108

NO.2

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-30080iLS110,MS11#,RS110..RHD..(BTP,DLX,SAL)197909-198307

W/HEATER

main81930-30090iLS110,MS11#..LHD..(BTP,DLX,SAL)197909-198108

W/HEATER

main81930-30100iMS11#..RHD..ROY197909-198307

main81930-30110iMS11#..LHD..ROY197909-198307

main81930-30120iLS110,MS11#,RS110..RHD..(BTP,DLX,SAL)..GEN..(CBR,DSL)197909-198307

W/BOOST VENTILATOR

main81930-30130iLS110,MS11#,RS110..LHD..(BTP,DLX,SAL)..GEN197909-198108

W/BOOST VENTILATOR

main81930-30150iLS110,MS112..LHD..(BTP,DLX,SAL)198108-198307

W/HEATER

main81930-30160iLS110,MS112,RS110..LHD..(BTP,DLX,SAL)..GEN198108-198307

W/BOOST VENTILATOR

81930BBULB, HEATER CONTROL INDICATOR LAMP

main81936-30080iLS110,MS11#,RS110197909-198307

81935SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP

main81935-30080iLS110,MS11#,RS110197909-198307

82231WIRE, POSITION INDICATOR LAMP

main35977-30040iMS11#..3HC,4HC197909-198108

9033909001

main90339-09001

9331514010

main93315-14010

9331913001

main93319-13001

13 parts on this diagram · 1 diagram in section
