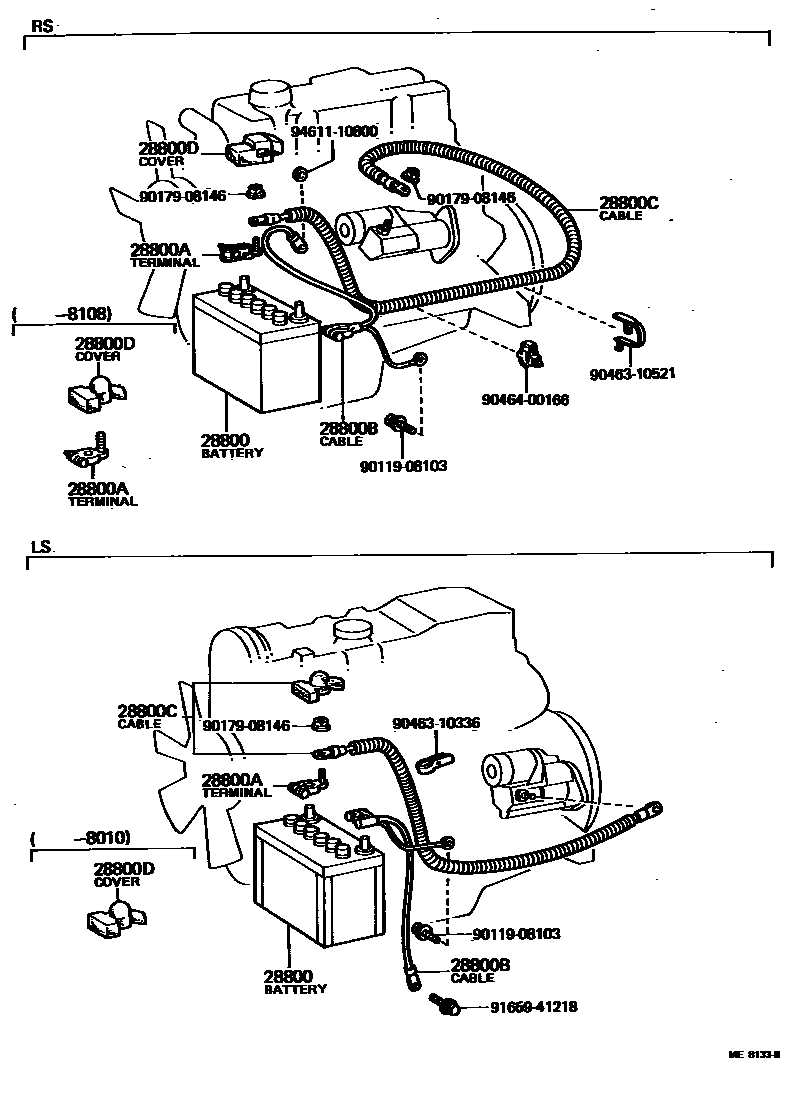

BATTERY & BATTERY CABLE

0001 1 0002 1

28800BATTERY

main28800-26040i5R..RS110..(BTP,DLX)..GEN;4M,5M..MS11#..(BTP,DLX,SAL)..GEN197909-198307

34B19L,NS40ZAL

sub28800-26050

main28800-30131i5R..RS110..SAL198008-198307

55D26R,N50ZL

sub28800-73010

main28800-31031i5R..RS110..(BTP,DLX)..GEN;4M,5M..MS11#..(BTP,DLX,SAL)..GEN197909-198307

32C24L,N40L

sub28800-31021

main28800-41110i4M,5M,5R..MS11#,RS110197909-198108

55D26L,N50ZL-MF

sub28800-73010

main28800-43010i4M,5M#..MS11#..ROY..GEN197909-198102

NS60L-MF

sub28800-43011

main28800-43011i5M#..MS112..ROY..GEN198102-198307

46B24L,NS60L-MF

sub28800-62040

main28800-43100i5ME..MS112..ARL,EUR198108-198307

55D23L

sub28800-43070

main28800-45050i4M,5M,5R..MS11#,RS110..EUR,GEN197909-198307

75D31L,N70ZL-MF

sub28800-42130

main28800-54020iL..LS110..MTM197909-198108

80D26L,NX110-5L

sub28800-67102

main28800-54030iL..LS110..MTM197909-198307

95D31L,NX120-7L

sub28800-64180

main28800-54050iL..LS110..EUR197909-198307

130E41L,NX200-10L

main28800-54200iL..LS110..MTM198108-198307

80D26L,NX110-5L

sub28800-64130

28800ATERMINAL, BATTERY POSITIVE

main90982-05004i4M,5M#..MS11#..GEN;5R..RS110..(BTP,DLX)..GEN197909-198108

ID=12.7

sub90982-05028

main90982-05005iL,4M,5M#,5R..LS110,MS11#,RS110197909-198307

ID=17.5

sub90982-05030

main90982-05019i5M#..MS112..GEN;5R..RS110..BTP,DLX198108-198307

ID=12.7

sub90982-05027

main90982-05023i5M,5R..MS112,RS110198108-198307

ID=17.5

sub90982-05029

28800BCABLE, BATTERY TO GROUND

main90982-02112i5R..RS110197909-198307

NS40ZAL

main90982-02151iL..LS110197909-198307

main90982-02180i5R..RS110197909-198307

N40L,N50ZL,N70ZL,55D23L

main90982-02190i4M,5M#..MS11#..GEN197909-198307

NS40ZAL,NS60L

main90982-02191i4M,5M..MS11#..GEN197909-198307

N40L,N50ZL,N70ZL,55D23L

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01314i4M,5M#..MS11#197909-198108

L=980

main90982-01316i5R..RS110..LHD197909-198108

main90982-01317iL..LS110197909-198108

main90982-01317iL..LS110..5F198108-198307

COLD SPEC

main90982-01340i5R..RS110..RHD197909-198108

main90982-01350i5ME..MS112..EUR197909-198108

L=1100,COLD SPEC

main90982-01350i5M#..MS112198108-198307

L=1100

main90982-01397iL..LS110..MTM198108-198307

main90982-01398i5R..RS110..LHD198108-198307

main90982-01400i5R..RS110..RHD198108-198307

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i5M#,5R..MS112,RS110198108-198307

main82821-30080iL,4M,5M#,5R..LS110,MS11#,RS110197909-198108

9011908103

main90119-08103

9017908146

main90179-08146

9046310336

main90463-10336

9046310521

main90463-10521

9046400166

main90464-00166

9165941218

main91659-41218

9461110800

main94611-10800

12 parts on this diagram · 2 diagrams in section
