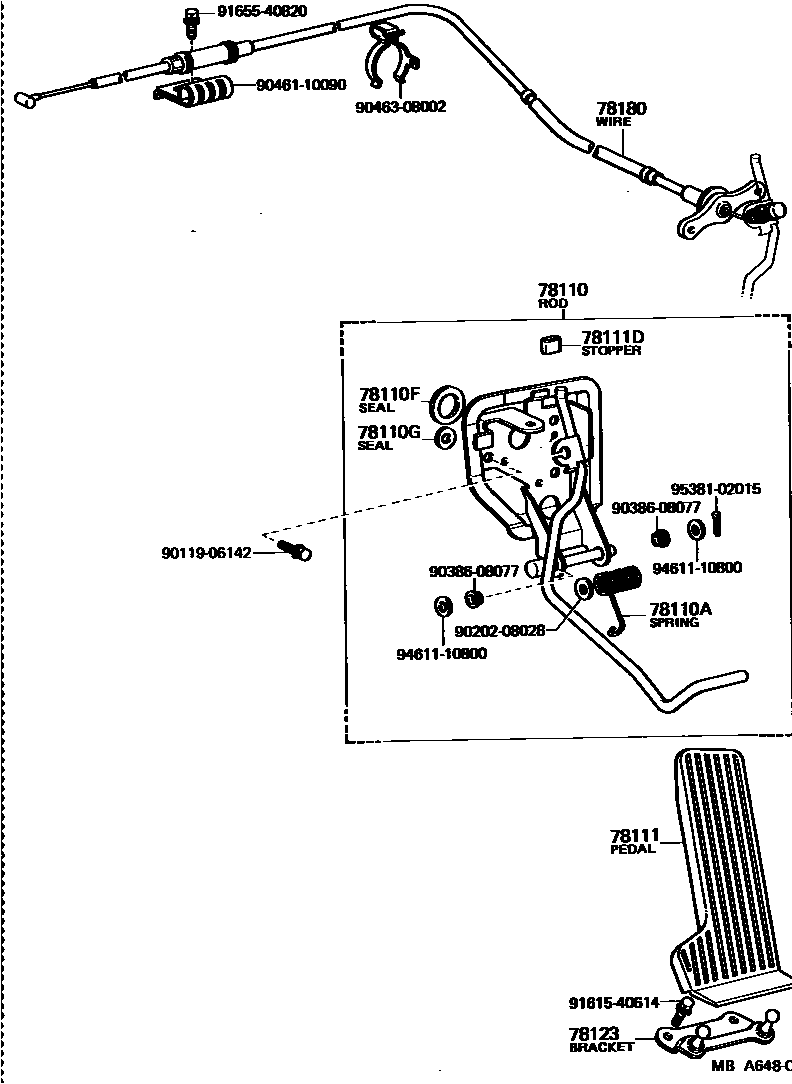

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78110ROD ASSY, ACCELERATOR PEDAL

main78102-30130iLS110,MS11#,RS110..LHD197909-198307

main78120-30210iMS11#,RS110..RHD..MTM197909-198307

sub78120-30222

main78120-30230iLS110..RHD..MTM197909-198307

main78120-30300iMS11#..RHD..ATM197909-198307

sub78120-30320

main78120-30320iLS110..RHD..4FC198008-198307

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18016iLS110,MS11#..RHD..ATM197909-198307

main90508-23025iMS112..LHD..4FC..EFI197909-198307

main90508-23026iLS110..RHD..MTM197909-198307

main90508-29010iMS11#,RS110..RHD..MTM197909-198307

main90508-35008iMS112..5F..EFI197909-198307

78110FSEAL, NO.1 (FOR ACCELERATOR PEDAL ROD)

main78129-30050iLS110,MS11#,RS110..RHD197909-198307

78110GSEAL, NO.2 (FOR ACCELERATOR PEDAL ROD)

main78139-30050iLS110,MS11#,RS110..RHD197909-198307

78111PEDAL, ACCELERATOR

main78111-12100iLS110,MS11#,RS110..LHD197909-198307

main78111-30080iLS110,MS11#,RS110..RHD197909-198307

sub78111-30081

78111DSTOPPER (FOR ACCELERATOR PEDAL)

main78119-30040iLS110,MS11#,RS110..LHD197909-198307

main78119-30050iLS110,MS11#,RS110..RHD197909-198307

78123BRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30040iLS110,MS11#,RS110..RHD197909-198307

78180WIRE ASSY, ACCELERATOR

main78180-30030iMS11#..RHD..CBR197909-198307

sub78180-30180

main78180-30040iMS112..RHD..EFI197909-198108

sub78180-30041

main78180-30041iMS112..RHD..EFI198108-198307

main78180-30060iRS110..RHD197909-198307

main78180-30090iMS112..LHD..EFI197909-198307

main78180-30100iMS11#..LHD..CBR197909-198307

main78180-30110iRS110..LHD197909-198307

main78180-30120iLS110..LHD197909-198010

main78180-30121iLS110..LHD198010-198307

main78180-30130iLS110..RHD197909-198010

main78180-30131iLS110..RHD198010-198307

main78180-30230iRS110..LHD..BTP..GEN197909-198307

TAXI SPEC

main78180-30250iMS11#..SED..BTP197909-198307

TAXI SPEC

9011906142

main90119-06142

9020208028

main90202-08028

9038608077

main90386-08077

9046110090

main90461-10090

9046308002

main90463-08002

9161540614

main91615-40614

9165540820

main91655-40820

9461110800

main94611-10800

9538102015

main95381-02015

17 parts on this diagram · 6 diagrams in section
