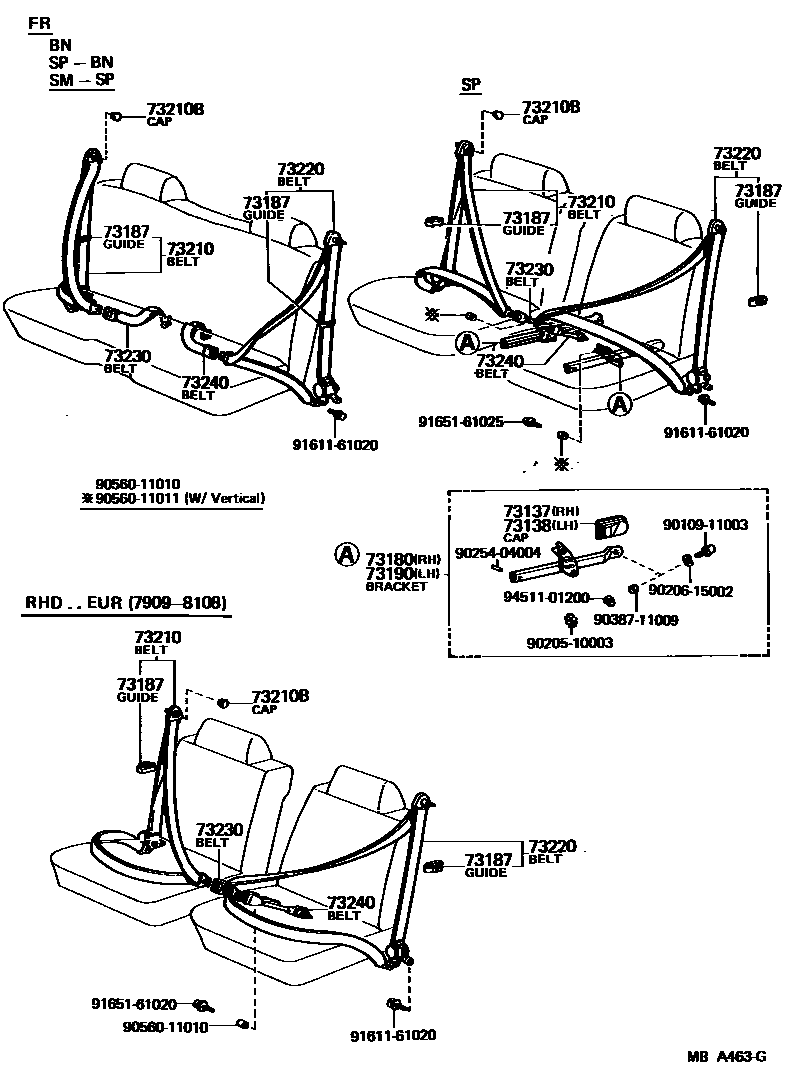

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-30010-02iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub73137-30010

main73137-30010-03iLS110,MS112,RS110..4F,4FC,5F198108-198307

GRAY,GRAY,TRIM1#

sub73137-30010

main73137-30010-04iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198307

BLUE,BLUE,TRIM8#

sub73137-30010

main73137-30010-05iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198108

GREIGE,BEIGE,TRIM4#

sub73137-30010

main73137-30010-15iLS110,MS112,RS110..4F,4FC,5F198108-198307

BEIGE,BEIGE,TRIM4#

sub73137-30010

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-30010-02iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub73138-30010

main73138-30010-03iLS110,MS112,RS110..4F,4FC,5F198108-198307

GRAY,GRAY,TRIM1#

sub73138-30010

main73138-30010-04iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198307

BLUE,BLUE,TRIM8#

sub73138-30010

main73138-30010-05iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198108

GREIGE,BEIGE,TRIM4#

sub73138-30010

main73138-30010-15iLS110,MS112,RS110..4F,4FC,5F198108-198307

BEIGE,BEIGE,TRIM4#

sub73138-30010

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73180-30010-02iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198105

DARK WINE,RED/MAROON,TRIM3#

sub73180-30010

main73180-30010-04iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198105

BLUE,BLUE,TRIM8#

sub73180-30010

main73180-30010-05iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198105

GREIGE,BEIGE,TRIM4#

sub73180-30010

main73180-30011-02iMS112..LHD..EFI;LS110,RS110..4F,4FC,5F;MS112..(4F,4FC,5F)..(ARL,GEN)198105-198108

DARK WINE,RED/MAROON,TRIM3#

sub73180-30011

main73180-30011-03iLS110,MS112,RS110..4F,4FC,5F198108-198307

GRAY,GRAY,TRIM1#

sub73180-30011

main73180-30011-04iMS112..LHD..EFI;LS110,RS110..4F,4FC,5F;MS112..(4F,4FC,5F)..(ARL,GEN)198105-198307

BLUE,BLUE,TRIM8#

sub73180-30011

main73180-30011-05iMS112..LHD..EFI;LS110,RS110..4F,4FC,5F;MS112..(4F,4FC,5F)..(ARL,GEN)198105-198108

GREIGE,BEIGE,TRIM4#

sub73180-30011

main73180-30011-15iLS110,MS112,RS110..4F,4FC,5F198108-198307

BEIGE,BEIGE,TRIM4#

sub73180-30011

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-30010iLS110,MS11#,RS110197909-198307

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73190-30010-02iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198105

DARK WINE,RED/MAROON,TRIM3#

sub73190-30010

main73190-30010-04iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198105

BLUE,BLUE,TRIM8#

sub73190-30010

main73190-30010-05iMS112..LHD..EFI;MS112..(4F,4FC,5F)..(ARL,GEN);LS110,MS111,RS110..3FC,4F,4FC,5F197909-198105

GREIGE,BEIGE,TRIM4#

sub73190-30010

main73190-30011-02iMS112..LHD..EFI;LS110,RS110..4F,4FC,5F;MS112..(4F,4FC,5F)..(ARL,GEN)198105-198108

DARK WINE,RED/MAROON,TRIM3#

sub73190-30011

main73190-30011-03iLS110,MS112,RS110..4F,4FC,5F198108-198307

GRAY,GRAY,TRIM1#

sub73190-30011

main73190-30011-04iMS112..LHD..EFI;LS110,RS110..4F,4FC,5F;MS112..(4F,4FC,5F)..(ARL,GEN)198105-198307

BLUE,BLUE,TRIM8#

sub73190-30011

main73190-30011-05iMS112..LHD..EFI;LS110,RS110..4F,4FC,5F;MS112..(4F,4FC,5F)..(ARL,GEN)198105-198108

GREIGE,BEIGE,TRIM4#

sub73190-30011

main73190-30011-15iLS110,MS112,RS110..4F,4FC,5F198108-198307

BEIGE,BEIGE,TRIM4#

sub73190-30011

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30240-02iLS110,MS11#,RS110..(BTP,DLX,SAL)..GEN197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73210-30240-04iLS110,MS11#,RS110..(BTP,DLX,SAL)..GEN197909-198108

BLUE,BLUE,TRIM8#

main73210-30240-05iLS110,MS11#,RS110..(BTP,DLX,SAL)..GEN197909-198108

GREIGE,BEIGE,TRIM4#

main73210-30241-03iMS112..DLX..CBR;LS110,RS110..GEN198108-198307

GRAY,GRAY,TRIM1#

main73210-30241-04iMS112..DLX..CBR;LS110,RS110..GEN198108-198307

BLUE,BLUE,TRIM8#

main73210-30241-15iMS112..DLX..CBR;LS110,RS110..GEN198108-198307

BEIGE,BEIGE,TRIM4#

main73210-30250-02iMS11#..RHD..ROY..GEN197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub73210-30250

main73210-30250-04iMS11#..RHD..ROY..GEN197909-198108

BLUE,BLUE,TRIM8#

sub73210-30250

main73210-30250-05iMS11#..RHD..ROY..GEN197909-198108

GREIGE,BEIGE,TRIM4#

sub73210-30250

main73210-30251-03iMS112..ROY..GEN198108-198307

GRAY,GRAY,TRIM1#

sub73210-30251

main73210-30251-04iMS112..RHD..SAL..GEN198108-198307

BLUE,BLUE,TRIM8#

sub73210-30251

main73210-30251-15iMS112..ROY..GEN198108-198307

BEIGE,BEIGE,TRIM4#

sub73210-30251

main73210-30260-02iLS110,MS112,RS110..LHD..EUR197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73210-30260-03iLS110,MS112..EUR198108-198307

GRAY,GRAY,TRIM1#

main73210-30260-04iLS110,MS112..EUR197909-198307

BLUE,BLUE,TRIM8#

main73210-30260-05iLS110,MS112..EUR197909-198108

GREIGE,BEIGE,TRIM4#

main73210-30260-15iLS110,MS112..EUR198108-198307

BEIGE,BEIGE,TRIM4#

main73210-30270-02iMS11#..ARL197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73210-30270-03iMS112..ARL198108-198307

GRAY,GRAY,TRIM1#

main73210-30270-04iMS112..ARL197909-198307

BLUE,BLUE,TRIM8#

main73210-30270-05iMS11#..ARL197909-198108

GREIGE,BEIGE,TRIM4#

main73210-30270-15iMS112..ARL198108-198307

BEIGE,BEIGE,TRIM4#

main73210-30290-02iMS11#..LHD..ROY197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73210-30290-04iMS11#..LHD..ROY197909-198108

BLUE,BLUE,TRIM8#

main73210-30290-05iMS11#..LHD..ROY197909-198108

GREIGE,BEIGE,TRIM4#

main73210-30291-03iMS112..LHD..SAL..CBR198108-198307

GRAY,GRAY,TRIM1#

main73210-30291-04iMS112..LHD..SAL..CBR198108-198307

BLUE,BLUE,TRIM8#

main73210-30291-15iMS112..LHD..SAL..CBR198108-198307

BEIGE,BEIGE,TRIM4#

main73210-30300-02iMS112..RHD..EUR197909-198008

DARK WINE,RED/MAROON,TRIM3#

main73210-30300-04iMS112..RHD..EUR197909-198008

BLUE,BLUE,TRIM8#

main73210-30300-05iMS112..RHD..EUR197909-198008

GREIGE,BEIGE,TRIM4#

73210BCAP (FOR FRONT SEAT OUTER BELT)

main73178-12010-02iLS110,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub73178-12010

main73178-12010-04iLS110,MS11#,RS110197909-198307

BLUE,BLUE,TRIM8#

sub73178-12010

main73178-12010-13iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#

sub73178-12010

main73178-12010-35iLS110,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

sub73178-12010

main73178-12010-45iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

sub73178-12010

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30040-02iLS110,MS11#,RS110..(BTP,DLX,SAL)..GEN197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73220-30040-04iLS110,MS11#,RS110..(BTP,DLX,SAL)..GEN197909-198108

BLUE,BLUE,TRIM8#

main73220-30040-05iLS110,MS11#,RS110..(BTP,DLX,SAL)..GEN197909-198108

GREIGE,BEIGE,TRIM4#

main73220-30041-03iMS112..DLX..CBR;LS110,RS110..GEN198108-198307

GRAY,GRAY,TRIM1#

main73220-30041-04iMS112..DLX..CBR;LS110,RS110..GEN198108-198307

BLUE,BLUE,TRIM8#

main73220-30041-15iMS112..DLX..CBR;LS110,RS110..GEN198108-198307

BEIGE,BEIGE,TRIM4#

main73220-30050-02iMS11#..RHD..ROY..GEN197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73220-30050-04iMS11#..RHD..ROY..GEN197909-198108

BLUE,BLUE,TRIM8#

main73220-30050-05iMS11#..RHD..ROY..GEN197909-198108

GREIGE,BEIGE,TRIM4#

main73220-30051-03iMS112..RHD..SAL..GEN198108-198307

GRAY,GRAY,TRIM1#

sub73220-30051

main73220-30051-04iMS112..RHD..SAL..GEN198108-198307

BLUE,BLUE,TRIM8#

sub73220-30051

main73220-30051-15iMS112..RHD..SAL..GEN198108-198307

BEIGE,BEIGE,TRIM4#

sub73220-30051

main73220-30060-02iLS110,MS112,RS110..LHD..EUR197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73220-30060-03iLS110,MS112..EUR198108-198307

GRAY,GRAY,TRIM1#

main73220-30060-04iLS110,MS112..EUR197909-198307

BLUE,BLUE,TRIM8#

main73220-30060-05iLS110,MS112,RS110..LHD..EUR197909-198108

GREIGE,BEIGE,TRIM4#

main73220-30060-15iLS110,MS112..EUR198108-198307

BEIGE,BEIGE,TRIM4#

main73220-30070-02iMS11#..ARL197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73220-30070-03iMS112..ARL198108-198307

GRAY,GRAY,TRIM1#

main73220-30070-04iMS11#..ARL197909-198307

BLUE,BLUE,TRIM8#

main73220-30070-05iMS11#..ARL197909-198108

GREIGE,BEIGE,TRIM4#

main73220-30070-15iMS112..ARL198108-198307

BEIGE,BEIGE,TRIM4#

main73220-30090-02iMS11#..LHD..ROY197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73220-30090-04iMS11#..LHD..ROY197909-198108

BLUE,BLUE,TRIM8#

main73220-30090-05iMS11#..LHD..ROY197909-198108

GREIGE,BEIGE,TRIM4#

main73220-30091-03iMS112..LHD..SAL..CBR198108-198307

GRAY,GRAY,TRIM1#

sub73220-30091

main73220-30091-04iMS112..ROY..GEN198108-198307

BLUE,BLUE,TRIM8#

sub73220-30091

main73220-30091-15iMS112..LHD..SAL..CBR198108-198307

BEIGE,BEIGE,TRIM4#

sub73220-30091

main73220-30100-02iMS112..RHD..EUR197909-198008

DARK WINE,RED/MAROON,TRIM3#

main73220-30100-04iMS112..RHD..EUR197909-198008

BLUE,BLUE,TRIM8#

main73220-30100-05iMS112..RHD..EUR197909-198008

GREIGE,BEIGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30150-02iMS112..LHD;MS112..SAL..GEN;LS110,MS111,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30151

main73230-30150-04iMS112..LHD;MS112..SAL..GEN;LS110,MS111,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)197909-198003

BLUE,BLUE,TRIM8#

sub73230-30151

main73230-30150-05iMS112..LHD;MS112..SAL..GEN;LS110,MS111,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30151

main73230-30151-02iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX,SAL)198003-198108

DARK WINE,RED/MAROON,TRIM3#

sub73230-30151

main73230-30151-03iLS110,MS112..ARL,EUR198108-198307

GRAY,GRAY,TRIM1#

sub73230-30151

main73230-30151-04iMS112..ARL198003-198307

BLUE,BLUE,TRIM8#

sub73230-30151

main73230-30151-05iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX,SAL)198003-198108

GREIGE,BEIGE,TRIM4#

sub73230-30151

main73230-30151-15iLS110,MS112..ARL,EUR198108-198307

BEIGE,BEIGE,TRIM4#

sub73230-30151

main73230-30160-02iMS111..RHD..3FC..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30161

main73230-30160-04iMS111..RHD..3FC..ROY197909-198003

BLUE,BLUE,TRIM8#

sub73230-30161

main73230-30160-05iMS111..RHD..3FC..ROY197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30161

main73230-30161-02iMS11#..RHD..(3FC,4FC)..ROY..CBR198003-198108

DARK WINE,RED/MAROON,TRIM3#

sub73230-30161

main73230-30161-03iMS112..RHD..(4FC,5F)..SAL..GEN198108-198307

GRAY,GRAY,TRIM1#

sub73230-30161

main73230-30161-04iMS112..RHD..(4FC,5F)..SAL..GEN198003-198307

BLUE,BLUE,TRIM8#

sub73230-30161

main73230-30161-05iMS11#..RHD..(3FC,4FC)..ROY..CBR198003-198108

GREIGE,BEIGE,TRIM4#

sub73230-30161

main73230-30161-15iMS112..4FC..ROY..CBR198108-198307

BEIGE,BEIGE,TRIM4#

sub73230-30161

main73230-30180-02iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30181

main73230-30180-04iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)197909-198003

BLUE,BLUE,TRIM8#

sub73230-30181

main73230-30180-05iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30181

main73230-30181-02iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73230-30181-04iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)198003-198108

BLUE,BLUE,TRIM8#

main73230-30181-05iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)198003-198108

GREIGE,BEIGE,TRIM4#

main73230-30182-03iLS110,MS112,RS110..4H198108-198307

GRAY,GRAY,TRIM1#

sub73230-30182

main73230-30182-04iLS110,MS112,RS110..4H198108-198307

BLUE,BLUE,TRIM8#

sub73230-30182

main73230-30182-15iLS110,MS112,RS110..4H198108-198307

BEIGE,BEIGE,TRIM4#

sub73230-30182

main73230-30190-02iMS11#..RHD..(3HC,4HC)..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30191

main73230-30190-04iMS11#..RHD..(3HC,4HC)..ROY197909-198003

BLUE,BLUE,TRIM8#

sub73230-30191

main73230-30190-05iMS11#..RHD..(3HC,4HC)..ROY197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30191

main73230-30191-02iMS112..4HC..ROY198003-198108

DARK WINE,RED/MAROON,TRIM3#

sub73230-30191

main73230-30191-04iMS112..4HC..ROY198003-198108

BLUE,BLUE,TRIM8#

sub73230-30191

main73230-30191-05iMS11#..RHD..(3HC,4HC)..ROY198003-198108

GREIGE,BEIGE,TRIM4#

sub73230-30191

main73230-30192-03iMS112..RHD..4HC198108-198307

GRAY,GRAY,TRIM1#

sub73230-30192

main73230-30192-04iMS112..RHD..4HC198108-198307

BLUE,BLUE,TRIM8#

sub73230-30192

main73230-30192-15iMS112..RHD..4HC198108-198307

BEIGE,BEIGE,TRIM4#

sub73230-30192

main73230-30230-02iMS112..RHD..EUR197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30231

main73230-30230-04iMS112..RHD..EUR197909-198003

BLUE,BLUE,TRIM8#

sub73230-30231

main73230-30230-05iMS112..RHD..EUR197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30231

main73230-30231-02iMS112..RHD..EUR198003-198008

DARK WINE,RED/MAROON,TRIM3#

sub73230-30231

main73230-30231-04iMS112..RHD..EUR198003-198008

BLUE,BLUE,TRIM8#

sub73230-30231

main73230-30231-05iMS112..RHD..EUR198003-198008

GREIGE,BEIGE,TRIM4#

sub73230-30231

main73240-30020-02iMS111..LHD..3HC..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73240-30021

main73240-30020-04iMS111..LHD..3HC..ROY197909-198003

BLUE,BLUE,TRIM8#

sub73240-30021

main73240-30020-05iMS111..LHD..3HC..ROY197909-198003

GREIGE,BEIGE,TRIM4#

sub73240-30021

main73240-30021-02iMS111..LHD..3HC..ROY198003-198008

DARK WINE,RED/MAROON,TRIM3#

main73240-30021-04iMS111..LHD..3HC..ROY198003-198008

BLUE,BLUE,TRIM8#

main73240-30021-05iMS111..LHD..3HC..ROY198003-198008

GREIGE,BEIGE,TRIM4#

main73240-30022-03iMS112..LHD..4HC198108-198307

GRAY,GRAY,TRIM1#

sub73240-30022

main73240-30022-04iMS112..LHD..4HC198108-198307

BLUE,BLUE,TRIM8#

sub73240-30022

main73240-30022-15iMS112..LHD..4HC198108-198307

BEIGE,BEIGE,TRIM4#

sub73240-30022

main73240-30040-02iMS111..LHD..3FC..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73240-30041

main73240-30040-04iMS111..LHD..3FC..ROY197909-198003

BLUE,BLUE,TRIM8#

sub73240-30041

main73240-30040-05iMS111..LHD..3FC..ROY197909-198003

GREIGE,BEIGE,TRIM4#

sub73240-30041

main73240-30041-02iMS11#..LHD..(3FC,4FC)..ROY198003-198108

DARK WINE,RED/MAROON,TRIM3#

sub73240-30041

main73240-30041-03iMS112..LHD..(4FC,5F)..SAL..CBR198108-198307

GRAY,GRAY,TRIM1#

sub73240-30041

main73240-30041-04iMS11#..LHD..(3FC,4FC)..ROY198003-198307

BLUE,BLUE,TRIM8#

sub73240-30041

main73240-30041-05iMS11#..LHD..(3FC,4FC)..ROY198003-198108

GREIGE,BEIGE,TRIM4#

sub73240-30041

main73240-30041-15iMS112..LHD..(4FC,5F)..SAL..CBR198108-198307

BEIGE,BEIGE,TRIM4#

sub73240-30041

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30150-02iMS112..LHD;MS112..SAL..GEN;LS110,MS111,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30151

main73230-30150-04iMS112..LHD;MS112..SAL..GEN;LS110,MS111,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)197909-198003

BLUE,BLUE,TRIM8#

sub73230-30151

main73230-30150-05iMS112..LHD;MS112..SAL..GEN;LS110,MS111,RS110..(3FC,4F,4FC,5F)..(BTP,DLX,SAL)197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30151

main73230-30151-02iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX,SAL)198003-198108

DARK WINE,RED/MAROON,TRIM3#

sub73230-30151

main73230-30151-03iMS112..(4F,4FC)..DLX..CBR;LS110,RS110..(4F,4FC)..GEN198108-198307

GRAY,GRAY,TRIM1#

sub73230-30151

main73230-30151-04iLS110,MS112,RS110..(4F,4FC,5F)..(BTP,DLX,SAL)198003-198307

BLUE,BLUE,TRIM8#

sub73230-30151

main73230-30151-05iMS112..ARL198003-198108

GREIGE,BEIGE,TRIM4#

sub73230-30151

main73230-30151-15iLS110,MS112..ARL,EUR198108-198307

BEIGE,BEIGE,TRIM4#

sub73230-30151

main73230-30160-02iMS111..LHD..3FC..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30161

main73230-30160-04iMS111..LHD..3FC..ROY197909-198003

BLUE,BLUE,TRIM8#

sub73230-30161

main73230-30160-05iMS111..LHD..3FC..ROY197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30161

main73230-30161-02iMS11#..LHD..(3FC,4FC)..ROY198003-198108

DARK WINE,RED/MAROON,TRIM3#

sub73230-30161

main73230-30161-03iMS112..4FC..ROY..CBR198108-198307

GRAY,GRAY,TRIM1#

sub73230-30161

main73230-30161-04iMS112..LHD..(4FC,5F)..SAL..CBR198003-198307

BLUE,BLUE,TRIM8#

sub73230-30161

main73230-30161-05iMS11#..LHD..(3FC,4FC)..ROY198003-198108

GREIGE,BEIGE,TRIM4#

sub73230-30161

main73230-30161-15iMS112..4FC..ROY..CBR198108-198307

BEIGE,BEIGE,TRIM4#

sub73230-30161

main73230-30180-02iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30181

main73230-30180-04iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)197909-198003

BLUE,BLUE,TRIM8#

sub73230-30181

main73230-30180-05iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30181

main73230-30181-02iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73230-30181-04iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)198003-198108

BLUE,BLUE,TRIM8#

main73230-30181-05iLS110,MS111,RS110..(3HC,4H)..(BTP,DLX,SAL)198003-198108

GREIGE,BEIGE,TRIM4#

main73230-30182-03iLS110,MS112,RS110..4H198108-198307

GRAY,GRAY,TRIM1#

sub73230-30182

main73230-30182-04iLS110,MS112,RS110..4H198108-198307

BLUE,BLUE,TRIM8#

sub73230-30182

main73230-30182-15iLS110,MS112,RS110..4H198108-198307

BEIGE,BEIGE,TRIM4#

sub73230-30182

main73230-30190-02iMS111..LHD..3HC..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30191

main73230-30190-04iMS111..LHD..3HC..ROY197909-198003

BLUE,BLUE,TRIM8#

sub73230-30191

main73230-30190-05iMS111..LHD..3HC..ROY197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30191

main73230-30191-02iMS111..LHD..3HC..ROY198003-198008

DARK WINE,RED/MAROON,TRIM3#

sub73230-30191

main73230-30191-04iMS111..LHD..3HC..ROY198003-198008

BLUE,BLUE,TRIM8#

sub73230-30191

main73230-30191-05iMS111..LHD..3HC..ROY198003-198008

GREIGE,BEIGE,TRIM4#

sub73230-30191

main73230-30192-03iMS112..4HC..ROY198108-198307

GRAY,GRAY,TRIM1#

sub73230-30192

main73230-30192-04iMS112..LHD..4HC198108-198307

BLUE,BLUE,TRIM8#

sub73230-30192

main73230-30192-15iMS112..LHD..4HC198108-198307

BEIGE,BEIGE,TRIM4#

sub73230-30192

main73230-30230-02iMS112..RHD..EUR197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73230-30231

main73230-30230-04iMS112..RHD..EUR197909-198003

BLUE,BLUE,TRIM8#

sub73230-30231

main73230-30230-05iMS112..RHD..EUR197909-198003

GREIGE,BEIGE,TRIM4#

sub73230-30231

main73230-30231-02iMS112..RHD..EUR198003-198008

DARK WINE,RED/MAROON,TRIM3#

sub73230-30231

main73230-30231-04iMS112..RHD..EUR198003-198008

BLUE,BLUE,TRIM8#

sub73230-30231

main73230-30231-05iMS112..RHD..EUR198003-198008

GREIGE,BEIGE,TRIM4#

sub73230-30231

main73240-30020-02iMS11#..RHD..(3HC,4HC)..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73240-30021

main73240-30020-04iMS11#..RHD..(3HC,4HC)..ROY197909-198003

BLUE,BLUE,TRIM8#

sub73240-30021

main73240-30020-05iMS11#..RHD..(3HC,4HC)..ROY197909-198003

GREIGE,BEIGE,TRIM4#

sub73240-30021

main73240-30021-02iMS11#..RHD..(3HC,4HC)..ROY198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73240-30021-04iMS112..4HC..ROY198003-198108

BLUE,BLUE,TRIM8#

main73240-30021-05iMS11#..RHD..(3HC,4HC)..ROY198003-198108

GREIGE,BEIGE,TRIM4#

main73240-30022-03iMS112..RHD..4HC..SAL198108-198307

GRAY,GRAY,TRIM1#

sub73240-30022

main73240-30022-04iMS112..RHD..4HC..SAL198108-198307

BLUE,BLUE,TRIM8#

sub73240-30022

main73240-30022-15iMS112..RHD..4HC..SAL198108-198307

BEIGE,BEIGE,TRIM4#

sub73240-30022

main73240-30040-02iMS111..RHD..3FC..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

sub73240-30041

main73240-30040-04iMS111..RHD..3FC..ROY197909-198003

BLUE,BLUE,TRIM8#

sub73240-30041

main73240-30040-05iMS111..RHD..3FC..ROY197909-198003

GREIGE,BEIGE,TRIM4#

sub73240-30041

main73240-30041-02iMS11#..RHD..(3FC,4FC)..ROY..CBR198003-198108

DARK WINE,RED/MAROON,TRIM3#

sub73240-30041

main73240-30041-03iMS112..RHD..(4FC,5F)..SAL198108-198307

GRAY,GRAY,TRIM1#

sub73240-30041

main73240-30041-04iMS112..RHD..(4FC,5F)..SAL..GEN198003-198307

BLUE,BLUE,TRIM8#

sub73240-30041

main73240-30041-05iMS11#..RHD..(3FC,4FC)..ROY..CBR198003-198108

GREIGE,BEIGE,TRIM4#

sub73240-30041

main73240-30041-15iMS112..RHD..(4FC,5F)..SAL..GEN198108-198307

BEIGE,BEIGE,TRIM4#

sub73240-30041

9010911003

main90109-11003

9020510003

main90205-10003

9020615002

main90206-15002

9025404004

main90254-04004

9038711009

main90387-11009

9056011010

main90560-11010

9056011011

main90560-11011

9161161020

main91611-61020

9165161020

main91651-61020

9165161025

main91651-61025

9451101200

main94511-01200

21 parts on this diagram · 2 diagrams in section
