E
EPC Data

FRONT DOOR PANEL & GLASS

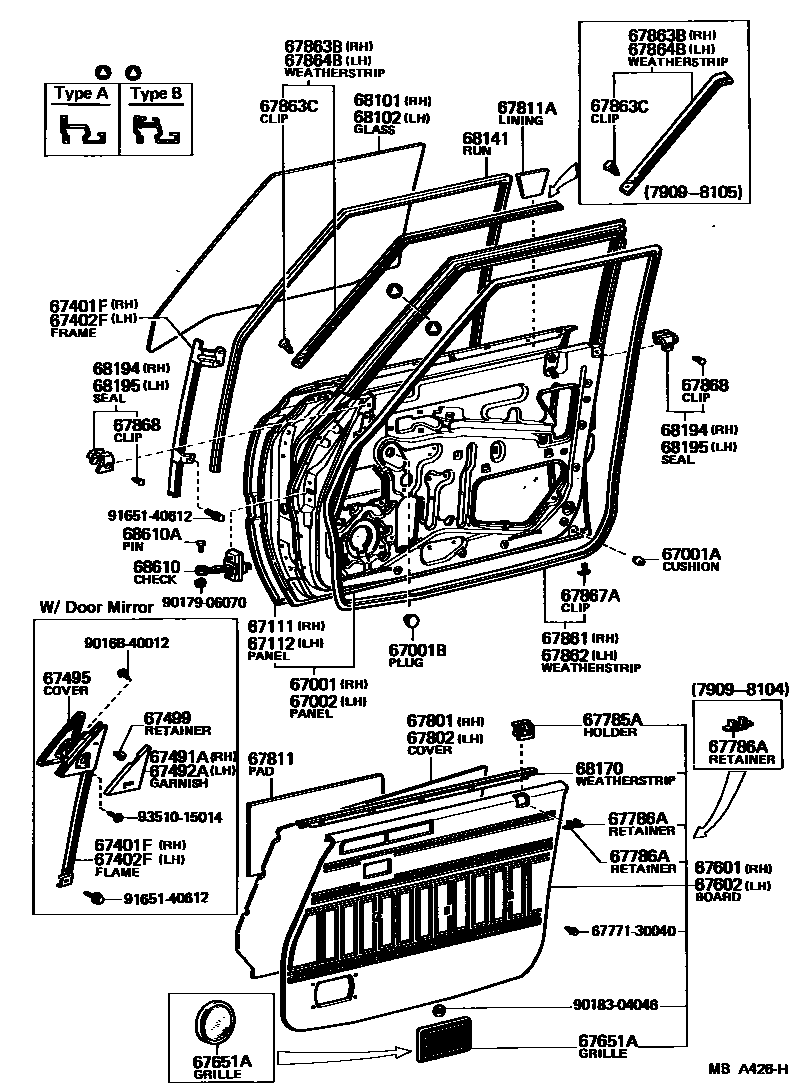

Parts diagram
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-30200i197909-198106
main67001-30200i198012-198106
SAUDI ARABIA SPEC
main67001-30201i198106-198307
SAUDI ARABIA SPEC
main67001-30210i197909-198307
TYPE A
sub67001-30310
main67001-30240i197909-198106
TYPE B,DOUBLE WEATHERSTRIP
main67001-30241i198106-198108
TYPE B,DOUBLE WEATHERSTRIP
sub67001-30260
sub82711-24040
main67001-30260i198108-198307
TYPE B,DOUBLE WEATHERSTRIP
main67001-30310i198108-198307
*GIS
main67001-30320i198108-198307
*GIS
main67001-30350i198108-198307
*GIS
67001ACUSHION, FRONT DOOR PANEL
main90541-09006i197909-198307
67001BPLUG, HOLE(FOR FRONT DOOR PANEL)
main90950-01061i197909-198307
sub90950-01872
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-30290i197909-198106
main67002-30291i198106-198307
SAUDI ARABIA SPEC
main67002-30300i197909-198307
TYPE A
sub67002-30390
main67002-30330i197909-198108
TYPE B,DOUBLE WEATHERSTRIP
main67002-30331i198106-198307
TYPE B,DOUBLE WEATHERSTRIP
sub67002-30400
main67002-30350i198012-198106
SAUDI ARABIA SPEC
sub67002-30290
main67002-30380i198108-198307
TYPE B,DOUBLE WEATHERSTRIP
sub67002-30430
main67002-30390i198108-198307
*GIS
main67002-30400i198108-198307
*GIS
main67002-30430i198108-198307
*GIS
67111PANEL, FRONT DOOR, OUTER RH
main67111-30150i197909-198307
sub67111-30180
main67111-30180i198108-198307
*GIS
67112PANEL, FRONT DOOR, OUTER LH
main67112-30210i197909-198307
sub67112-30240
main67112-30240i198108-198307
*GIS
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
main67401-30080i197909-198108
W/DOOR MIRROR
main67401-30081i198108-198307
W/DOOR MIRROR
main67401-30090i197909-198307
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
main67402-30080i197909-198108
W/DOOR MIRROR
main67402-30081i198108-198307
W/DOOR MIRROR
main67402-30090i197909-198307
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-30010i197909-198108
W/REMOTE CONTROL MIRROR
main67491-30011i198108-198307
main67491-30020i197909-198108
main67491-30021i198108-198307
W/POWER DOOR MIRROR
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-30010i197909-198108
W/REMOTE CONTROL MIRROR
main67492-30011i198108-198307
main67492-30020i197909-198108
main67492-30021i198108-198307
W/POWER DOOR MIRROR
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
main67495-22011i198108-198307
RH
main67496-22011i198108-198307
LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-30010i197909-198108
LH
main67499-30010i197909-198108
RH
main67499-30010i198108-198307
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-3A110-03i198108-198307
GRAY,GRAY,TRIM1#
main67610-3A110-15i198108-198307
BEIGE,BEIGE,TRIM4#
main67610-3A120-03i198108-198307
W/*SPG,GRAY,GRAY,TRIM1#
main67610-3A120-04i198108-198307
W/*SPG,BLUE,BLUE,TRIM8#
main67610-3A120-15i198108-198307
W/*SPG,BEIGE,BEIGE,TRIM4#
main67610-3A140-03i198108-198307
W/*SPG,DOOR MIRROR,GRAY,GRAY,TRIM1#
main67610-3A140-04i198108-198307
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67610-3A140-15i198108-198307
W/*SPG,DOOR MIRROR,BEIGE,BEIGE,TRIM4#
main67610-3A160-03i198108-198307
W/*SPG,GRAY,GRAY,TRIM1#
main67610-3A160-04i198108-198307
W/*SPG,BLUE,BLUE,TRIM8#
main67610-3A160-15i198108-198307
W/*SPG,BEIGE,BEIGE,TRIM4#
main67610-3A170-03i198108-198307
W/DOOR MIRROR,GRAY,GRAY,TRIM1#
main67610-3A170-04i198108-198307
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
main67610-3A170-15i198108-198307
W/DOOR MIRROR,BEIGE,BEIGE,TRIM4#
main67610-3A180-03i198108-198307
W/*SPG,DOOR MIRROR,GRAY,GRAY,TRIM1#
main67610-3A180-04i198108-198307
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67610-3A180-15i198108-198307
W/*SPG,DOOR MIRROR,BEIGE,BEIGE,TRIM4#
main67610-3A190-03i198108-198307
GRAY,GRAY,TRIM1#
main67610-3A190-04i198108-198307
BLUE,BLUE,TRIM8#
main67610-3A190-05i198108-198307
BEIGE,BEIGE,TRIM4#
main67610-3A200-03i198108-198307
GRAY,GRAY,TRIM1#
sub67610-3A190
main67610-3A200-04i198108-198307
BLUE,BLUE,TRIM8#
sub67610-3A190
main67610-3A200-05i198108-198307
BEIGE,BEIGE,TRIM4#
sub67610-3A190
main67610-3A230-03i198108-198307
GRAY,GRAY,TRIM1#
main67610-3A230-04i198108-198307
BLUE,BLUE,TRIM8#
main67610-3A230-05i198108-198307
BEIGE,BEIGE,TRIM4#
main67610-3A240-03i198108-198307
GRAY,GRAY,TRIM1#
sub67610-3A230
main67610-3A240-04i198108-198307
BLUE,BLUE,TRIM8#
sub67610-3A230
main67610-3A240-05i198108-198307
BEIGE,BEIGE,TRIM4#
sub67610-3A230
main67610-91709i197909-198108
GREIGE
main67610-91710i197909-198108
W/*SPG,GREIGE
main67610-91711i197909-198108
W/DOOR MIRROR,GREIGE
main67610-91711-15i198108-198307
W/DOOR MIRROR,BEIGE,BEIGE,TRIM4#
sub67610-91711
main67610-91712i197909-198108
W/*SPG,DOOR MIRROR,GREIGE
main67610-91712-15i198108-198307
W/*SPG,DOOR MIRROR,BEIGE,BEIGE,TRIM4#
sub67610-91712
main67650-30290-02i197909-198001
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
sub67650-30291
main67650-30290-04i197909-198001
W/*SPG,BLUE,BLUE,TRIM8#
sub67650-30291
main67650-30290-05i197909-198001
W/*SPG,GREIGE,BEIGE,TRIM4#
sub67650-30291
main67650-30291-02i198001-198008
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67650-30291-04i198001-198008
W/*SPG,BLUE,BLUE,TRIM8#
main67650-30291-05i198001-198008
W/*SPG,GREIGE,BEIGE,TRIM4#
main67650-30292-02i198008-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67650-30292-04i198008-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67650-30292-05i198008-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67650-30420-03i198108-198307
GRAY,GRAY,TRIM1#
main67650-30420-04i197909-198108
BLUE,BLUE,TRIM8#
main67650-30420-05i197909-198108
GREIGE,BEIGE,TRIM4#
main67650-30420-15i198108-198307
BEIGE,BEIGE,TRIM4#
main67650-30430-02i197909-198001
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
sub67650-30431
main67650-30430-04i197909-198001
W/*SPG,BLUE,BLUE,TRIM8#
sub67650-30431
main67650-30430-05i197909-198001
W/*SPG,GREIGE,BEIGE,TRIM4#
sub67650-30431
main67650-30431-02i198001-198008
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67650-30431-04i198001-198008
W/*SPG,BLUE,BLUE,TRIM8#
main67650-30431-05i198001-198008
W/*SPG,GREIGE,BEIGE,TRIM4#
main67650-30432-02i198008-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67650-30432-04i198008-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67650-30432-05i198008-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67650-30440-02i197909-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67650-30440-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67650-30440-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67650-30450-02i197909-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67650-30450-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67650-30450-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67650-30460-04i197909-198108
BLUE,BLUE,TRIM8#
main67650-30460-05i197909-198108
GREIGE,BEIGE,TRIM4#
main67650-30470-03i198108-198307
W/*SPG,GRAY,GRAY,TRIM1#
main67650-30470-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67650-30470-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67650-30470-15i198108-198307
W/*SPG,BEIGE,BEIGE,TRIM4#
main67650-30480-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67650-30480-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67650-30500-02i197909-198001
DARK WINE,RED/MAROON,TRIM3#
sub67650-30501
main67650-30500-04i197909-198001
BLUE,BLUE,TRIM8#
sub67650-30501
main67650-30500-05i197909-198001
GREIGE,BEIGE,TRIM4#
sub67650-30501
main67650-30501-02i198001-198008
DARK WINE,RED/MAROON,TRIM3#
main67650-30501-04i198001-198008
BLUE,BLUE,TRIM8#
main67650-30501-05i198001-198008
GREIGE,BEIGE,TRIM4#
main67650-30502-02i198008-198108
DARK WINE,RED/MAROON,TRIM3#
main67650-30502-04i198008-198108
BLUE,BLUE,TRIM8#
main67650-30502-05i198008-198108
GREIGE,BEIGE,TRIM4#
main67650-30510-02i197909-198108
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
main67650-30510-04i197909-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67650-30510-05i197909-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67650-30520-02i197909-198001
DARK WINE,RED/MAROON,TRIM3#
sub67650-30521
main67650-30520-04i197909-198001
BLUE,BLUE,TRIM8#
sub67650-30521
main67650-30520-05i197909-198001
GREIGE,BEIGE,TRIM4#
sub67650-30521
main67650-30521-02i198001-198008
DARK WINE,RED/MAROON,TRIM3#
main67650-30521-04i198001-198008
BLUE,BLUE,TRIM8#
main67650-30521-05i198001-198008
GREIGE,BEIGE,TRIM4#
main67650-30522-02i198008-198108
DARK WINE,RED/MAROON,TRIM3#
main67650-30522-04i198008-198108
BLUE,BLUE,TRIM8#
main67650-30522-05i198008-198108
GREIGE,BEIGE,TRIM4#
main67650-30530-02i197909-198001
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67650-30531
main67650-30530-04i197909-198001
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67650-30531
main67650-30530-05i197909-198001
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67650-30531
main67650-30531-02i198001-198008
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
main67650-30531-04i198001-198008
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67650-30531-05i198001-198008
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67650-30532-02i198008-198108
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
main67650-30532-04i198008-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67650-30532-05i198008-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67650-30660-02i197909-198001
W/DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67650-30661
main67650-30660-04i197909-198001
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67650-30661
main67650-30660-05i197909-198001
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67650-30661
main67650-30661-02i198001-198008
W/DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67650-30501
main67650-30661-04i198001-198008
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67650-30501
main67650-30661-05i198001-198008
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67650-30501
main67650-30662-02i198008-198108
W/DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67650-30502
main67650-30662-04i198008-198108
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67650-30502
main67650-30662-05i198008-198108
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67650-30502
main67650-30670-02i197909-198001
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67650-30671
main67650-30670-04i197909-198001
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67650-30671
main67650-30670-05i197909-198001
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67650-30671
main67650-30671-02i198001-198008
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67650-30531
main67650-30671-04i198001-198008
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67650-30531
main67650-30671-05i198001-198008
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67650-30531
main67650-30672-02i198008-198108
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67650-30532
main67650-30672-04i198008-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67650-30532
main67650-30672-05i198008-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67650-30532
main67650-30680-04i197909-198108
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
main67650-30680-05i197909-198108
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67650-30690-04i197909-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67650-30690-05i197909-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67650-30750-02i197909-198108
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67650-30510
main67650-30750-04i197909-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67650-30510
main67650-30750-05i197909-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67650-30510
main67650-30760-03i198108-198307
W/DOOR MIRROR,GRAY,GRAY,TRIM1#
main67650-30760-04i197909-198108
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
main67650-30760-05i197909-198108
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67650-30760-15i198108-198307
W/DOOR MIRROR,BEIGE,BEIGE,TRIM4#
main67650-30770-03i198108-198307
W/*SPG,DOOR MIRROR,GRAY,GRAY,TRIM1#
main67650-30770-04i197909-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67650-30770-05i197909-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67650-30770-15i198108-198307
W/*SPG,DOOR MIRROR,BEIGE,BEIGE,TRIM4#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-30770i197909-198108
GREIGE
main67620-30810-03i198108-198307
GRAY,GRAY,TRIM1#
main67620-30810-04i197909-198108
BLUE,BLUE,TRIM8#
main67620-30810-05i197909-198108
GREIGE,BEIGE,TRIM4#
main67620-30810-15i198108-198307
BEIGE,BEIGE,TRIM4#
main67620-30821-03i198108-198307
W/*SPG,GRAY,GRAY,TRIM1#
main67620-30821-04i198108-198307
W/*SPG,BLUE,BLUE,TRIM8#
main67620-30821-15i198108-198307
W/*SPG,BEIGE,BEIGE,TRIM4#
main67620-30830-02i197909-198001
W/DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67620-30831
main67620-30830-04i197909-198001
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67620-30831
main67620-30830-05i197909-198001
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67620-30831
main67620-30831-02i198001-198008
W/DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67620-30861
main67620-30831-04i198001-198008
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67620-30861
main67620-30831-05i198001-198008
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67620-30861
main67620-30832-02i198008-198108
W/DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67620-3A221
main67620-30832-04i198008-198108
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67620-3A221
main67620-30832-05i198008-198108
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67620-3A221
main67620-30840-02i197909-198108
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
main67620-30840-04i197909-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-30840-05i197909-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67620-30850-02i197909-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67620-30850-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67620-30850-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67620-30851-03i198108-198307
GRAY,GRAY,TRIM1#
main67620-30851-04i198108-198307
BLUE,BLUE,TRIM8#
main67620-30851-05i198108-198307
BEIGE,BEIGE,TRIM4#
main67620-30860-02i197909-198001
DARK WINE,RED/MAROON,TRIM3#
sub67620-30861
main67620-30860-04i197909-198001
BLUE,BLUE,TRIM8#
sub67620-30861
main67620-30860-05i197909-198001
GREIGE,BEIGE,TRIM4#
sub67620-30861
main67620-30861-02i198001-198008
DARK WINE,RED/MAROON,TRIM3#
main67620-30861-04i198001-198008
BLUE,BLUE,TRIM8#
main67620-30861-05i198001-198008
GREIGE,BEIGE,TRIM4#
main67620-30870-02i197909-198001
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67620-30871
main67620-30870-04i197909-198001
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67620-30871
main67620-30870-05i197909-198001
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67620-30871
main67620-30871-02i198001-198008
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67620-3A231
main67620-30871-04i198001-198008
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67620-3A231
main67620-30871-05i198001-198008
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67620-3A231
main67620-30872-02i198008-198108
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67620-3A232
main67620-30872-04i198008-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67620-3A232
main67620-30872-05i198008-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67620-3A232
main67620-30880-04i197909-198108
BLUE,BLUE,TRIM8#
main67620-30880-05i197909-198108
GREIGE,BEIGE,TRIM4#
main67620-30881-03i198108-198307
GRAY,GRAY,TRIM1#
main67620-30881-15i198108-198307
BEIGE,BEIGE,TRIM4#
main67620-3A030-02i197909-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67620-3A030-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67620-3A030-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67620-3A040-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67620-3A040-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67620-3A041-03i198108-198307
W/*SPG,GRAY,GRAY,TRIM1#
main67620-3A041-04i198108-198307
W/*SPG,BLUE,BLUE,TRIM8#
main67620-3A041-15i198108-198307
W/*SPG,BEIGE,BEIGE,TRIM4#
main67620-3A050-02i197909-198001
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
sub67620-3A051
main67620-3A050-04i197909-198001
W/*SPG,BLUE,BLUE,TRIM8#
sub67620-3A051
main67620-3A050-05i197909-198001
W/*SPG,GREIGE,BEIGE,TRIM4#
sub67620-3A051
main67620-3A051-02i198001-198008
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67620-3A051-04i198001-198008
W/*SPG,BLUE,BLUE,TRIM8#
main67620-3A051-05i198001-198008
W/*SPG,GREIGE,BEIGE,TRIM4#
main67620-3A052-02i198008-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67620-3A052-04i198008-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67620-3A052-05i198008-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67620-3A053-03i198108-198307
GRAY,GRAY,TRIM1#
main67620-3A053-04i198108-198307
BLUE,BLUE,TRIM8#
main67620-3A053-05i198108-198307
BEIGE,BEIGE,TRIM4#
main67620-3A060-03i198108-198307
W/*SPG,GRAY,GRAY,TRIM1#
main67620-3A060-04i197909-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67620-3A060-05i197909-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67620-3A060-15i198108-198307
W/*SPG,BEIGE,BEIGE,TRIM4#
main67620-3A170-02i198008-198108
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67620-3A170-04i198008-198108
W/*SPG,BLUE,BLUE,TRIM8#
main67620-3A170-05i198008-198108
W/*SPG,GREIGE,BEIGE,TRIM4#
main67620-3A171-03i198108-198307
GRAY,GRAY,TRIM1#
sub67620-3A053
main67620-3A171-04i198108-198307
BLUE,BLUE,TRIM8#
sub67620-3A053
main67620-3A171-05i198108-198307
BEIGE,BEIGE,TRIM4#
sub67620-3A053
main67620-3A181-03i198108-198307
W/DOOR MIRROR,GRAY,GRAY,TRIM1#
main67620-3A181-04i198108-198307
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-3A181-15i198108-198307
W/DOOR MIRROR,BEIGE,BEIGE,TRIM4#
main67620-3A191-03i198108-198307
W/*SPG,DOOR MIRROR,GRAY,GRAY,TRIM1#
main67620-3A191-04i198108-198307
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-3A191-15i198108-198307
W/*SPG,DOOR MIRROR,BEIGE,BEIGE,TRIM4#
main67620-3A221-02i198008-198108
DARK WINE,RED/MAROON,TRIM3#
main67620-3A221-04i198008-198108
BLUE,BLUE,TRIM8#
main67620-3A221-05i198008-198108
GREIGE,BEIGE,TRIM4#
main67620-3A230-02i197909-198001
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67620-3A231
main67620-3A230-04i197909-198001
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67620-3A231
main67620-3A230-05i197909-198001
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67620-3A231
main67620-3A231-02i198001-198008
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
main67620-3A231-04i198001-198008
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-3A231-05i198001-198008
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67620-3A232-02i198008-198108
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
main67620-3A232-04i198008-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-3A232-05i198008-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67620-3A260-04i197909-198108
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-3A260-05i197909-198108
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67620-3A270-04i197909-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-3A270-05i197909-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67620-3A271-03i198108-198307
W/*SPG,DOOR MIRROR,GRAY,GRAY,TRIM1#
main67620-3A271-04i198108-198307
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-3A271-15i198108-198307
W/*SPG,DOOR MIRROR,BEIGE,BEIGE,TRIM4#
main67620-3A280-02i197909-198108
W/*SPG,DOOR MIRROR,DARK WINE,RED/MAROON,TRIM3#
sub67620-30840
main67620-3A280-04i197909-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
sub67620-30840
main67620-3A280-05i197909-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
sub67620-30840
main67620-3A281-03i198108-198307
GRAY,GRAY,TRIM1#
sub67620-30851
main67620-3A281-04i198108-198307
BLUE,BLUE,TRIM8#
sub67620-30851
main67620-3A281-05i198108-198307
BEIGE,BEIGE,TRIM4#
sub67620-30851
main67620-3A290-03i198108-198307
W/DOOR MIRROR,GRAY,GRAY,TRIM1#
main67620-3A290-04i197909-198108
W/DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-3A290-05i197909-198108
W/DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67620-3A290-15i198108-198307
W/DOOR MIRROR,BEIGE,BEIGE,TRIM4#
main67620-3A300-03i198108-198307
W/*SPG,DOOR MIRROR,GRAY,GRAY,TRIM1#
main67620-3A300-04i197909-198108
W/*SPG,DOOR MIRROR,BLUE,BLUE,TRIM8#
main67620-3A300-05i197909-198108
W/*SPG,DOOR MIRROR,GREIGE,BEIGE,TRIM4#
main67620-3A300-15i198108-198307
W/*SPG,DOOR MIRROR,BEIGE,BEIGE,TRIM4#
main67620-3A310-02i197909-198001
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
sub67620-3A311
main67620-3A310-04i197909-198001
W/*SPG,BLUE,BLUE,TRIM8#
sub67620-3A311
main67620-3A310-05i197909-198001
W/*SPG,GREIGE,BEIGE,TRIM4#
sub67620-3A311
main67620-3A311-02i198001-198008
W/*SPG,DARK WINE,RED/MAROON,TRIM3#
main67620-3A311-04i198001-198008
W/*SPG,BLUE,BLUE,TRIM8#
main67620-3A311-05i198001-198008
W/*SPG,GREIGE,BEIGE,TRIM4#
main67620-91702i197909-198108
W/*SPG,GREIGE
main67620-91703i197909-198108
W/DOOR MIRROR,GREIGE
main67620-91703-15i198108-198307
W/DOOR MIRROR,BEIGE,BEIGE,TRIM4#
sub67620-91703
main67620-91704i197909-198108
W/*SPG,DOOR MIRROR,GREIGE
main67620-91704-15i198108-198307
W/*SPG,DOOR MIRROR,BEIGE,BEIGE,TRIM4#
sub67620-91704
67651AGRILLE, SPEAKER DOOR
main67609-30010-03i198108-198307
GRAY,GRAY,TRIM1#
main67609-30010-04i198108-198307
BLUE,BLUE,TRIM8#
main67609-30010-05i198108-198307
BEIGE,BEIGE,TRIM4#
main67651-30010-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main67651-30010-03i198108-198307
GRAY,GRAY,TRIM1#
main67651-30010-04i197909-198307
BLUE,BLUE,TRIM8#
main67651-30010-05i197909-198108
GREIGE,BEIGE,TRIM4#
main67651-30010-15i198108-198307
BEIGE,BEIGE,TRIM4#
67785AHOLDER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
main67785-30040-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main67785-30040-03i198108-198307
GRAY,GRAY,TRIM1#
main67785-30040-04i197909-198307
BLUE,BLUE,TRIM8#
main67785-30040-05i197909-198108
GREIGE,BEIGE,TRIM4#
main67785-30040-25i198108-198307
BEIGE,BEIGE,TRIM4#
67786ARETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR)
main67786-30020i198104-198307
main67786-30030i197909-198104
sub67786-30020
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
main67831-30130i197909-198307
W/RADIO
main67831-30130i197909-198307
main67831-30180i197909-198108
main67831-30180i198108-198307
MALAYSIA SPEC
main67831-30190i198108-198307
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
main67831-30130i197909-198307
main67831-30130i197909-198307
W/RADIO
main67831-30180i198108-198307
MALAYSIA SPEC
main67831-30180i197909-198108
main67831-30190i198108-198307
67811PAD, FRONT DOOR SILENCER
main67811-20050i197909-198307
sub67811-12010
67811APAD, REAR DOOR SILENCER
main67139-12010i197909-198212
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-30110i197909-198307
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-30110i197909-198307
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
main67863-30030i197909-198106
main67863-30031i198106-198307
67863CCLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)
main67869-30020i197909-198307
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
main67864-30030i197909-198106
main67864-30031i198106-198307
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
main67868-30040i197909-198307
67868CLIP, FRONT DOOR GLASS WEATHERSTRIP
main67868-30030i197909-198307
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68111-30220i197909-198307
*TEM,T=4.0
main68111-30230i197909-198307
W/DOOR MIRROR,*TT,T=4.0
main68111-30240i197909-198307
W/DOOR MIRROR,*TEM,T=4.0
sub68111-30230
main68111-30250i197909-198307
*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68112-30150i197909-198307
*TEM,T=4.0
sub68112-30180
main68112-30160i197909-198307
W/DOOR MIRROR,*TT,T=4.0
main68112-30170i197909-198307
W/DOOR MIRROR,*TEM,T=4.0
main68112-30180i197909-198307
*TT,T=4.0
68141RUN, FRONT DOOR GLASS
main68141-30070i198109-198307
RH
main68141-30070i197909-198109
RUBBER
main68141-30080i198109-198307
RH,W/DOOR MIRROR
main68141-30080i197909-198109
W/DOOR MIRROR,RUBBER
main68141-30090i197909-198109
VINYL CHLORIDE
sub68141-30070
main68141-30100i197909-198109
W/DOOR MIRROR,VINYL CHLORIDE
sub68141-30080
main68151-30040i198109-198307
LH
main68151-30050i198109-198307
LH,W/DOOR MIRROR
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68170-30110i197909-198307
RH,W/DOOR MIRROR
main68170-30130i197909-198108
RH
main68170-30130i197909-198108
LH
main68170-30130i198108-198307
RH & LH
main68220-30100i197909-198307
LH,W/DOOR MIRROR
68194SEAL, FRONT DOOR BELT, RH
main68192-30010i197909-198307
FR,W/DOOR MIRROR
main68192-30020i197909-198307
FR
main68194-30010i197909-198307
RR
68195SEAL, FRONT DOOR BELT, LH
main68193-30020i197909-198307
FR,W/DOOR MIRROR
main68193-30030i197909-198307
FR
main68195-30020i197909-198307
RR
68610CHECK ASSY, FRONT DOOR
main68610-30010i197909-198307
68610APIN(FOR FRONT DOOR CHECK)
main68617-30010i197909-198307
sub68617-90K00
6777130040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-30040
9016840012
main90168-40012
9017906070
main90179-06070
9018304046
main90183-04046
9165140612
main91651-40612
9351015014
main93510-15014

42 parts on this diagram · 1 diagram in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
