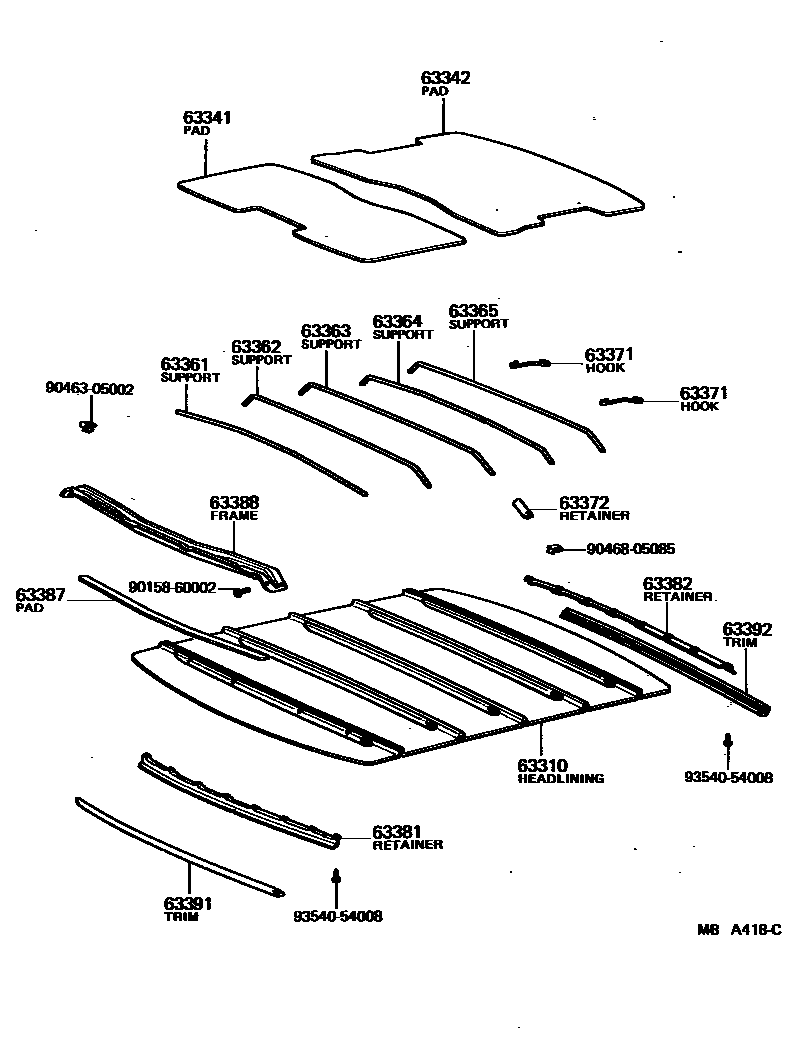

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

63310HEADLINING ASSY, ROOF

main63310-30210-03iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

GRAY,GRAY,TRIM1#

sub63310-30210

main63310-30210-04iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198108

BLUE,BLUE,TRIM8#

sub63310-30210

main63310-30210-05iLS110,MS112,RS110..SED..(BTP,DLX)198108-198307

BEIGE,BEIGE,TRIM4#

sub63310-30210

main63310-30210-08iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198108

IVORY,IVORY,TRIM4#

sub63310-30210

main63310-30220-03iMS112,RS110..ROY,SAL198108-198307

GRAY,GRAY,TRIM1#,8#

sub63310-30220

main63310-30220-04iMS11#,RS110..ROY,SAL197909-198108

BLUE,BLUE,TRIM8#

sub63310-30220

main63310-30220-05iMS112,RS110..ROY,SAL198108-198307

BEIGE,BEIGE,TRIM4#

sub63310-30220

main63310-30220-08iMS11#,RS110..ROY,SAL197909-198108

IVORY,IVORY,TRIM3#,4#

sub63310-30220

main63310-91709-03iLS110,MS112..WG198108-198307

GRAY,GRAY,TRIM1#

main63310-91709-04iLS110,MS11#..WG197909-198108

BLUE,BLUE,TRIM8#

main63310-91709-05iLS110,MS112..WG198108-198307

BEIGE,BEIGE,TRIM4#

main63310-91709-08iLS110,MS11#..WG197909-198108

IVORY,IVORY,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-30080iLS110,MS11#,RS110..SED197909-198307

sub63341-22H92

main63341-91703iLS110,MS11#..WG197909-198307

63342PAD, ROOF SILENCER, NO.2

main63342-91702iLS110,MS11#..WG197909-198307

main63343-30050iLS110,MS11#,RS110..SED197909-198307

sub63341-22H92

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-30070iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198307

L=1100,YELLOW

sub63363-30060

main63361-91703iLS110,MS11#..WG197909-198307

main63362-30070iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198307

L=1103,GREEN

sub63363-30060

main63363-30060iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198307

L=1106,RED

main63367-30030iMS11#,RS110..ROY,SAL197909-198307

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-30070iLS110,MS11#,RS110..SED197909-198307

L=1100,YELLOW

sub63363-30060

main63362-30070iLS110,MS11#,RS110..SED197909-198307

L=1103,GREEN

sub63363-30060

main63362-91703iLS110,MS11#..WG197909-198307

main63363-30060iLS110,MS11#,RS110..SED197909-198307

L=1106,RED

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-30070iLS110,MS11#,RS110..SED197909-198307

L=1100,YELLOW

sub63363-30060

main63362-30070iLS110,MS11#,RS110..SED197909-198307

L=1103,GREEN

sub63363-30060

main63363-30060iLS110,MS11#,RS110..SED197909-198307

L=1106,RED

main63363-91703iLS110,MS11#..WG197909-198307

63364SUPPORT, ROOF HEADLINING, NO.4

main63364-30060iLS110,MS11#,RS110..SED197909-198307

L=1083,YELLOW

sub63366-30060

main63364-91702iLS110,MS11#..WG197909-198307

main63365-30060iLS110,MS11#,RS110..SED197909-198307

L=1086,GREEN

sub63366-30060

main63366-30060iLS110,MS11#,RS110..SED197909-198307

L=1089,RED

63365SUPPORT, ROOF HEADLINING, NO.5

main63361-30070iLS110,MS11#,RS110..SED197909-198307

L=1100,YELLOW

sub63363-30060

main63362-30070iLS110,MS11#,RS110..SED197909-198307

L=1103,GREEN

sub63363-30060

main63363-30060iLS110,MS11#,RS110..SED197909-198307

L=1106,RED

main63365-91702iLS110,MS11#..WG197909-198307

L=1059,GREEN

main63366-91701iLS110,MS11#..WG197909-198307

L=1062,BLUE

main63367-91701iLS110,MS11#..WG197909-198307

L=1056

63371HOOK, ROOF HEADLINING SUPPORT

main63372-30050iLS110,MS11#,RS110..SED..(BTP,DLX)197909-198307

63372RETAINER, HEADLINING SUPPORT

main63371-30050iLS110,MS11#,RS110197909-198307

63381RETAINER, HEADLINING, FRONT

main63381-30030iLS110,MS11#,RS110197909-198307

63382RETAINER, HEADLINING, REAR CENTER

main63383-30030iLS110,MS11#,RS110..SED197909-198307

63387PAD, ROOF HEADLINING FORMING

main63387-30020iMS11#,RS110..ROY,SAL197909-198307

63388FRAME, ROOF HEADLINING FORMING

main63385-30020iMS11#,RS110..ROY,SAL197909-198307

63391TRIM, ROOF HEADLINING, FRONT

main63391-30040-03iLS110,MS112,RS110198108-198307

GRAY,GRAY,TRIM1#,8#

sub63391-30040

main63391-30040-04iLS110,MS11#,RS110197909-198108

BLUE,BLUE,TRIM8#

sub63391-30040

main63391-30040-05iLS110,MS112,RS110198108-198307

BEIGE,BEIGE,TRIM4#

sub63391-30040

main63391-30040-08iLS110,MS11#,RS110197909-198108

IVORY,IVORY,TRIM3#,4#

sub63391-30040

main63391-30040-14iLS110,MS112,RS110198108-198307

BLUE,BLUE,TRIM8#

sub63391-30040

63392TRIM, ROOF HEADLINING, REAR

main63392-30050-03iLS110,MS112,RS110..SED198108-198307

GRAY,GRAY,TRIM1#,8#

main63392-30050-04iLS110,MS11#,RS110..SED197909-198108

BLUE,BLUE,TRIM8#

main63392-30050-05iLS110,MS112,RS110..SED198108-198307

BEIGE,BEIGE,TRIM4#

main63392-30050-08iLS110,MS11#,RS110..SED197909-198108

IVORY,IVORY,TRIM3#,4#

main63392-30050-14iLS110,MS112,RS110..SED198108-198307

BLUE,BLUE,TRIM8#

9015860002

main90158-60002

9046305002

main90463-05002

9046805085

main90468-05085

9354054008

main93540-54008

20 parts on this diagram · 2 diagrams in section
