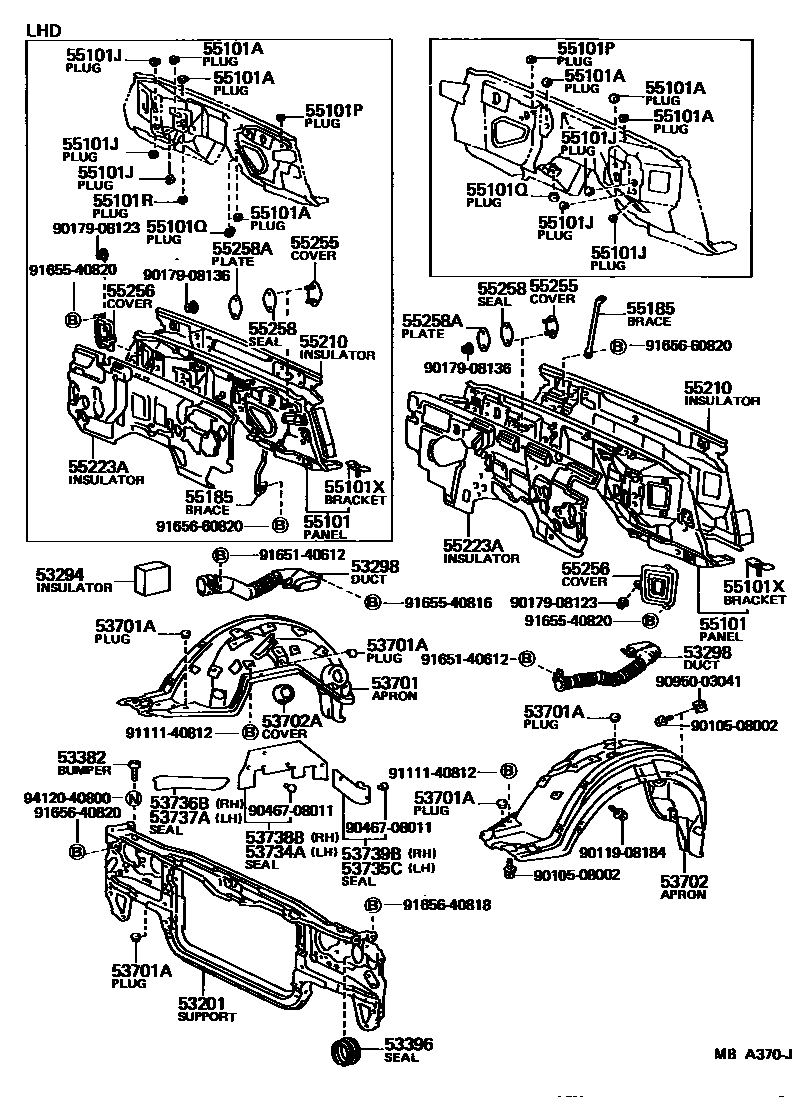

FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-30170iLS110,MS11#,RS110197909-198002

sub53201-30171

sub74404-30131

sub74404-30141

sub74404-30151

sub74404-30161

sub74404-30171

sub91651-60814

main53201-30171iLS110,MS11#,RS110198002-198108

main53201-30190iLS110,MS112,RS110198108-198307

53294INSULATOR, COOL AIR INTAKE DUCT

main53294-30060iMS111..ARL197909-198008

53298DUCT, COOL AIR INTAKE

main53207-30070iMS111..ARL197909-198008

main53207-30090iLS110197909-198307

53382BUMPER, HOOD, FRONT

main53382-20011iLS110,MS112,RS110198108-198307

sub53382-90A00

53396SEAL, RADIATOR SUPPORT TO HEADLAMP

main53396-30010iMS112..ARL198008-198108

main53396-30030iMS112..ARL198108-198201

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30390iMS112..LHD..EFI197909-198108

sub53701-30391

sub91111-50812

main53701-30391iMS112..LHD..EFI198108-198307

sub53701-30710

sub91651-40812

main53701-30400iMS11#,RS110..RHD..CBR197909-198307

sub53701-30700

sub90950-01181

sub90950-01356

sub91651-40812

main53701-30430iLS110..RHD197909-198307

sub53701-30520

main53701-30441iLS110..LHD198108-198307

sub53701-30710

sub90950-01181

sub91651-40812

main53701-30450iRS110..LHD197909-198108

sub53701-30451

sub91111-50812

main53701-30451iRS110..LHD198108-198307

sub53701-30710

sub90950-01181

sub90950-01356

sub91651-40812

main53701-30470iMS11#..LHD..CBR197909-198108

sub53701-30471

sub91111-50812

main53701-30471iMS112..LHD..CBR198108-198307

sub53701-30710

sub90950-01181

sub90950-01356

sub91651-40812

main53701-30480iMS112..RHD..(EUR,GEN)..EFI197909-198307

sub53701-30481

sub91111-50812

main53701-30490iMS112..ARL198008-198103

sub53701-30500

main53701-30500iMS112..ARL198103-198307

sub53701-30520

53701APLUG, HOLE(FOR FRONT FENDER APRON)

main90950-01025iLS110,MS11#,RS110197909-198002

OD=21

main90950-01065iLS110,RS110197909-198307

OD=10

main90950-01133iLS110,MS11#,RS110198002-198208

OD=20

main90950-01181iLS110,RS110197909-198307

OD=12

main90950-01327iLS110,MS112,RS110198208-198307

OD=25

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30281iMS112..RHD198108-198307

sub53702-30500

sub91651-40812

main53702-30300iRS110..RHD197909-198108

sub53702-30310

main53702-30310iMS11#..RHD197909-198108

sub53702-30500

sub91651-40812

main53702-30320iLS110..RHD197909-198108

sub53702-30321

sub91111-50812

main53702-30321iLS110,RS110..RHD198108-198307

sub53702-30500

sub91651-40812

main53702-30330iLS110,RS110..LHD197909-198307

sub53702-30490

sub91651-40812

main53702-30340iMS11#..LHD197909-198307

sub53702-30490

sub91651-40812

53702ACOVER, FRONT FENDER APRON(FOR SERVICE HOLE)

main53799-30020iLS110,MS11#,RS110197909-198307

sub53799-30021

53734ASEAL, FRONT FENDER APRON TO FRAME, NO.2 LH

main53734-30020iLS110,MS11#,RS110197909-198307

53735CSEAL, FRONT FENDER APRON TO FRAME, NO.3 LH

main53735-30020iLS110,MS11#,RS110197909-198307

53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH

main53736-30020iLS110,MS11#,RS110197909-198307

53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH

main53737-30030iLS110,MS11#,RS110197909-198307

53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH

main53738-30040iLS110,MS11#,RS110197909-198307

53739BSEAL, FRONT FENDER APRON TO FRAME, NO.3 RH

main53739-30020iLS110,MS11#,RS110197909-198307

55101PANEL SUB-ASSY, DASH

main55101-30330iMS11#..RHD..MTM197909-198108

sub55101-30331

main55101-30331iMS112..RHD198108-198307

main55101-30340iMS11#..RHD..ATM197909-198104

sub55101-30330

sub46151-30010

sub55255-30040

sub55258-30020

main55101-30360iLS110,RS110..RHD..MTM197909-198108

sub55101-30361

main55101-30370iLS110..RHD..4FC198008-198104

sub55101-30360

sub46151-30010

sub55255-30040

sub55258-30020

main55101-30430iMS11#..SED..LHD..MTM197909-198104

main55101-30431iMS112..LHD..(4F,4FC,5F)198108-198307

main55101-30440iMS11#..SED..LHD..ATM197909-198307

sub55101-30430

sub55255-20010

sub55255-30050

sub55258-20010

main55101-30450iLS110..WG..LHD197909-198307

main55101-30451iLS110..LHD198108-198307

main55101-30460iLS110..LHD..4FC..DLX197909-198104

sub55101-30450

sub55255-20010

sub55255-30050

sub55258-20010

main55101-30470iRS110..LHD197909-198307

main55101-30471iRS110..4F198108-198307

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01022iLS110,MS11#,RS110..(BTP,DLX,SAL)..GEN197909-198307

OD=38

sub90950-01882

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01060iLS110,MS11#,RS110..BTP,DLX,SAL197909-198307

OD=33

sub90950-01866

main90950-01061iLS110,MS11#,RS110..BTP,DLX,SAL197909-198307

OD=44

sub90950-01872

55101PPLUG, HOLE, NO.4(FOR DASH PANEL)

main90950-01088iLS110,MS11#..LHD..ATM197909-198307

OD=16

main90950-01268iLS110,MS11#..RHD..ATM197909-198307

OD=14

55101QPLUG, HOLE, NO.5(FOR DASH PANEL)

main90950-01060iLS110,MS11#,RS110..LHD..(3FC,4F,4FC,5F)197909-198307

OD=33

sub90950-01866

main90950-01061iLS110,MS11#,RS110..RHD..(3FC,4F,4FC,5F)197909-198307

OD=44

sub90950-01872

main90950-01181iLS110,MS112,RS110..LHD..(4F,4FC,5F)198108-198307

OD=12

55101RPLUG, HOLE, NO.6(FOR DASH PANEL)

main90950-01181iLS110,MS112,RS110..LHD..(4F,4FC,5F)198108-198307

OD=12

55101XBRACKET, FUEL TUBE(FOR DASH PANEL)

main58367-30060iLS110,MS11#,RS110197909-198307

55185BRACE, DASH PANEL TO COWL

main55185-30020iLS110,MS112,RS110..RHD198108-198307

main55185-30030iLS110,MS112,RS110..LHD..(4F,4FC,5F)198108-198307

55210INSULATOR ASSY, DASH PANEL

main55211-30280iLS110,MS11#,RS110..LHD..BTP..GEN197909-198307

W/*BV

main55211-30300iMS11#..RHD..ROY197909-198307

main55211-30340iLS110,MS11#,RS110..RHD..(BTP,DLX,SAL)197909-198307

main55211-30360iMS11#..LHD..ROY197909-198307

main55211-30380iLS110,MS11#,RS110..LHD..(BTP,DLX,SAL)197909-198307

55223AINSULATOR, DASH PANEL, OUTER

main55223-30030iLS110..RHD197909-198307

main55223-30040iLS110..LHD197909-198307

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-30040iMS112..WG..RHD..4FC198008-198307

main55255-30050iLS110,MS11#..WG..LHD..ATM197909-198307

55256COVER, HEATOR BLOWER OPENING

main55257-30080iLS110,RS110..RHD..BTP197909-198307

main55257-30090iLS110,MS11#,RS110..LHD..BTP..GEN197909-198307

55258SEAL, CLUTCH MASTER CYLINDER HOLE

main55258-20010iLS110,MS11#..WG..LHD..ATM197909-198307

main55258-30020iMS112..WG..RHD..4FC198008-198307

55258APLATE, CLUTCH MASTER CYLINDER HOLE SEAL

main46151-30010iMS112..WG..RHD..4FC198008-198307

main55255-20010iLS110,MS11#..WG..LHD..ATM197909-198307

9010508002

main90105-08002

9011908184

main90119-08184

9017908123

main90179-08123

9017908136

main90179-08136

9046708011

main90467-08011

9095003041

main90950-03041

9111140812

main91111-40812

9165140612

main91651-40612

9165540816

main91655-40816

9165540820

main91655-40820

9165640818

main91656-40818

9165640820

main91656-40820

9165660820

main91656-60820

9412040800

main94120-40800

43 parts on this diagram · 1 diagram in section
