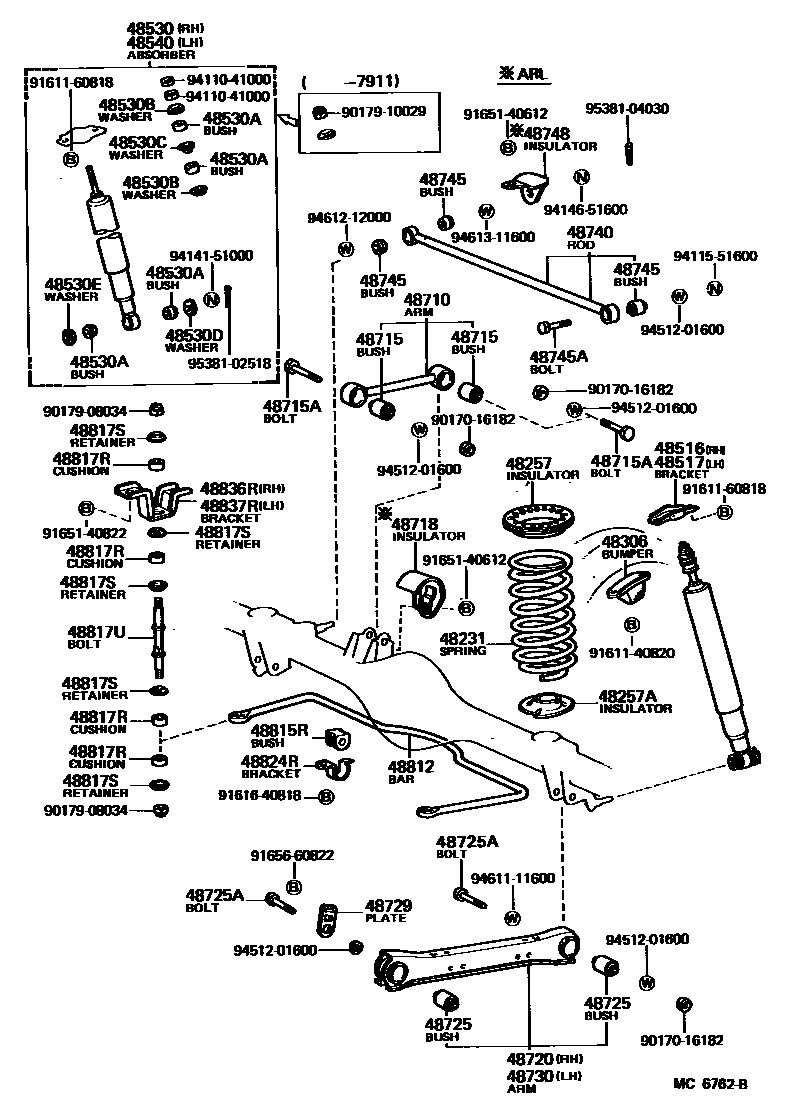

REAR SPRING & SHOCK ABSORBER
48257INSULATOR, REAR COIL SPRING
LH
RH
48257AINSULATOR, REAR COIL SPRING, LOWER
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABUSH(FOR REAR SHOCK ABSORBER)
HOUSING X ABSORBER
FRAME X ABSORBER,LWR
FRAME X ABSORBER
FRAME X ABSORBER,UPR
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
48718INSULATOR, UPPER CONTROL ARM BUSH HEAT
48725ABOLT(FOR LOWER CONTROL ARM)
48729PLATE, LOWER CONTROL ARM BOLT LOCK
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
FRAME X ROD
HOUSING X ROD
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48748INSULATOR, LATERAL CONTROL ROD BUSH HEAT
48812BAR, STABILIZER, REAR
OD=15
OD=15,W/POWER STEERING
OD=18
OD=18,MIDDLE EAST SPEC
OD=14
OD=13
48815RBUSH, STABILIZER(FOR REAR)
ID=15
ID=15,W/POWER STEERING
ID=13
ID=14
ID=18
ID=18,MIDDLE EAST SPEC
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
OD=28,T=3.5
OD=25,T=5
48817UBOLT(FOR REAR STABILIZER)
48824RBRACKET, STABILIZER(FOR REAR)
48836RBRACKET, REAR STABILIZER END, RH
48837RBRACKET, REAR STABILIZER END, LH
9017016182
main90170-16182
9017908034
main90179-08034
9017910029
main90179-10029
9161140820
main91611-40820
9161160818
main91611-60818
9161640818
main91616-40818
9165140612
main91651-40612
9165140822
main91651-40822
9165660822
main91656-60822
9411041000
main94110-41000
9411551600
main94115-51600
9414151000
main94141-51000
9414651600
main94146-51600
9451201600
main94512-01600
9461111600
main94611-11600
9461212000
main94612-12000
9461311600
main94613-11600
9538102518
main95381-02518
9538104030
main95381-04030
53 parts on this diagram · 1 diagram in section
