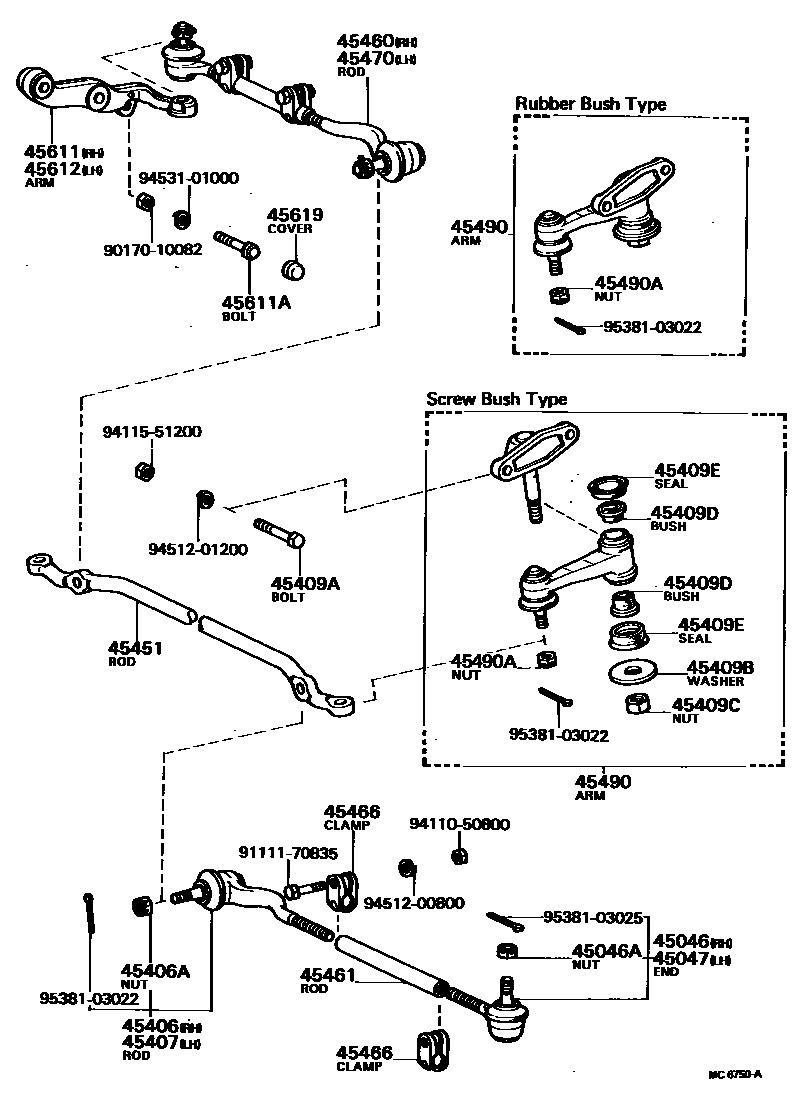

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-39115iLS110,MS11#,RS110197909-198307

sub45046-49065

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iLS110,MS11#,RS110197909-198307

45047END SUB-ASSY, TIE ROD, LH

main45046-39115iLS110,MS11#,RS110197909-198307

sub45046-49065

45406ROD SUB-ASSY, TIE, RH

main45406-39075iLS110,MS11#,RS110197909-198307

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042×2iLS110,MS11#,RS110197909-198307

45407ROD SUB-ASSY, TIE, LH

main45406-39075iLS110,MS11#,RS110197909-198307

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90105-12003iLS110,MS11#,RS110197909-198307

L=91.5

main90105-12004iLS110,MS11#,RS110197909-198307

L=101

45409BWASHER, PLATE(FOR IDLER ARM RUBBER BUSH)

main90201-14519iMS112..DLX..CBR198108-198307

45409CNUT(FOR IDLER ARM SUPPORT)

main94182-11400iMS112..DLX..CBR198108-198307

45409DBUSH(FOR IDLER ARM)

main90385-18068×2iLS110,MS11#..BTP,DLX197909-198108

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012×2iMS112..DLX..CBR198108-198307

45451ROD, STEERING RELAY

main45451-30100iLS110,MS11#,RS110..RHD..(BTP,DLX)197909-198307

main45451-30110iMS112..LHD..(BTP,DLX)198008-198108

main45451-30160iLS110,MS11#..RHD197909-198307

W/POWER STEERING

main45451-30170iLS110,MS11#..LHD197909-198307

W/POWER STEERING

45460ROD ASSY, TIE, RH

main45460-39125iLS110,MS11#,RS110197909-198307

45461ROD, STEERING TIE

main45465-30010×2iLS110,MS11#,RS110197909-198307

45466CLAMP, TIE ROD END

main45466-30020×4iLS110,MS11#,RS110197909-198307

45470ROD ASSY, TIE, LH

main45460-39125iLS110,MS11#,RS110197909-198307

45490ARM ASSY, STEERING IDLER

main45490-39125iLS110,MS11#,RS110..RHD..(BTP,DLX)197909-198307

main45490-39135iLS110,MS11#..RHD197909-198307

W/POWER STEERING

main45490-39165iLS110,MS11#..LHD197909-198307

W/POWER STEERING

main45490-39185iMS112..LHD..(BTP,DLX)198008-198108

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iLS110,MS11#,RS110197909-198307

45611ARM, STEERING KNUCKLE, RH

main45611-30080iMS112..DLX..CBR198108-198307

main45611-30090iLS110,MS11#197909-198307

W/POWER STEERING

45611ABOLT, KNUCKLE STOPPER

main90106-10002×2iLS110,MS11#,RS110197909-198307

45612ARM, STEERING KNUCKLE, LH

main45612-30080iLS110,MS11#..BTP,DLX197909-198108

main45612-30090iLS110,MS11#197909-198307

W/POWER STEERING

45619COVER, KNUCKLE STOPPER

main45619-14020×2iLS110,MS11#,RS110197909-198307

9017010082

main90170-10082

9111170835

main91111-70835

9411050800

main94110-50800

9411551200

main94115-51200

9451200800

main94512-00800

9451201200

main94512-01200

9453101000

main94531-01000

9538103022

main95381-03022

9538103025

main95381-03025

31 parts on this diagram · 1 diagram in section
