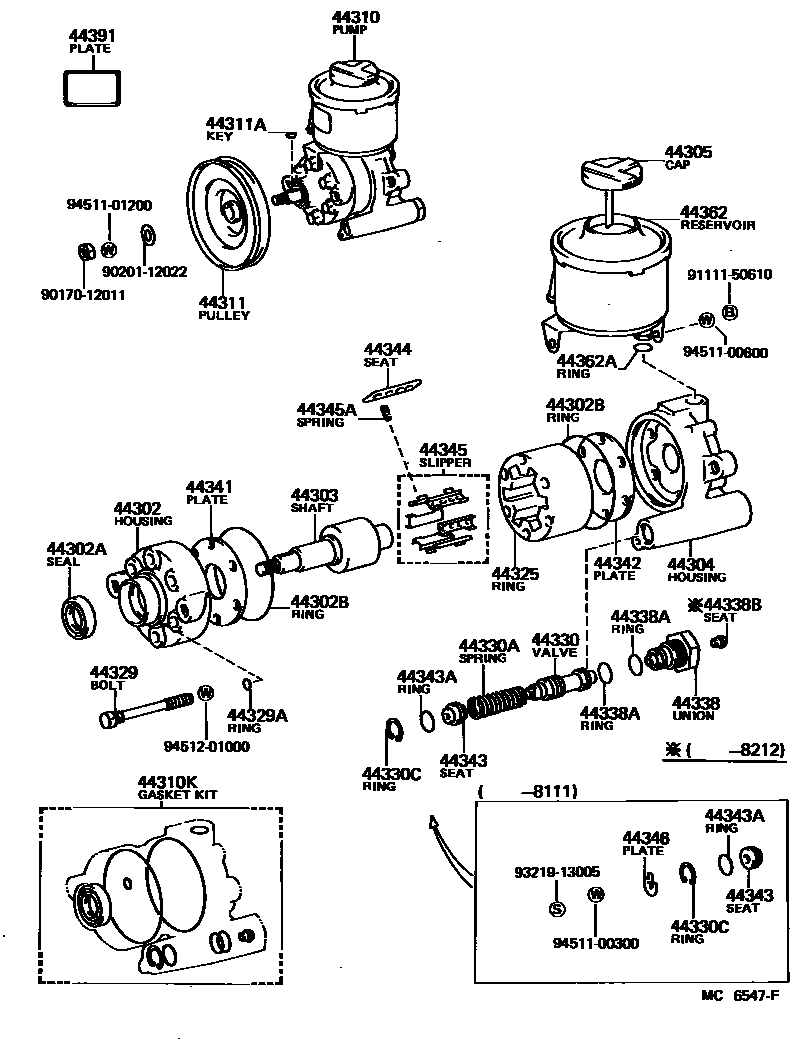

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-30020iLS110,MS11#197909-198307

44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)

main90310-21034iLS110,MS11#197909-198307

main90311-21002iMS112198304-198307

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-69170iLS110,MS11#197909-198307

44303SHAFT SUB-ASSY, W/ROTOR

main44303-22011iLS110,MS11#197909-198307

L=39.9750-39.9775,NO MARK

main44303-22021iLS110,MS11#197909-198307

L=39.9725-39.9750,MARK 2

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-30022iMS11#197909-198307

main44304-30040iLS110197909-198307

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iLS110,MS11#197909-198307

sub44305-22040

44310PUMP ASSY, VANE

main44320-30070iMS11#197909-198304

sub44320-30071

main44320-30071iMS112198304-198307

main44320-30090iLS110197909-198212

sub44320-30H00

main44320-30091iLS110198212-198307

44310KGASKET KIT, POWER STEERING PUMP

main04446-30010iMS11#197909-198307

main04446-30020iMS112198304-198307

44311PULLEY, VANE PUMP

main44311-30030iMS11#197909-198307

sub44311-30070

main44311-30040iLS110197909-198307

44311AKEY, VANE PUMP PULLEY

main90280-05008iLS110,MS11#197909-198307

44325RING, FIXED(FOR VANE PUMP)

main44325-30030iLS110,MS11#197909-198307

MARK 1,MARK 1

main44325-30040iLS110,MS11#197909-198307

MARK 2,MARK 2

44329BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET

main44329-30010iLS110,MS11#197909-198307

*8-1PX71.5-20

main44329-30020iMS11#197909-198307

*8-1PX73.5-20

44329ARING, O(FOR VANE PUMP HOUSING SET BOLT)

main96710-01007iLS110,MS11#197909-198111

sub96711-19007

main96711-19007iLS110,MS112198111-198307

44330VALVE ASSY, FLOW CONTROL

main44330-30041iLS110,MS11#197909-198307

MARK A

main44330-30051iLS110,MS11#197909-198307

MARK B

main44330-30061iLS110,MS11#197909-198307

MARK C

main44330-30071iLS110,MS11#197909-198307

MARK D

main44330-30081iLS110,MS11#197909-198307

MARK E

main44330-30091iLS110,MS11#197909-198307

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12447iLS110,MS11#197909-198307

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iLS110,MS11#197909-198307

44338UNION, PRESSURE PORT

main44308-30030iLS110198212-198307

main44308-30050iMS112198212-198307

main44338-30020iLS110197909-198212

main44338-30040iMS112198111-198212

44338ARING, O(FOR PRESSURE PORT UNION)

main96710-01014iLS110,MS11#197909-198111

ID=14,OD=17

sub96711-19014

main96711-19014iLS110,MS112198111-198307

OD=17.0,ID=13.0

44338BSEAT, UNION(FOR PRESSURE PORT UNION)

main90410-06030iLS110,MS11#197909-198212

44341PLATE, VANE PUMP SIDE, FRONT

main44341-30020iLS110,MS11#197909-198307

44342PLATE, VANE PUMP SIDE, REAR

main44341-30020iLS110,MS11#197909-198307

44343SEAT, FLOW CONTROL SPRING

main44343-12010iLS110,MS112198111-198307

main44343-30020iLS110,MS11#197909-198111

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014iLS110,MS11#197909-198111

sub96711-19014

main96711-19014iLS110,MS112198111-198307

44344SEAT, SPRING(FOR VANE PUMP)

main44344-30010iLS110,MS11#197909-198307

44345SLIPPER, VANE PUMP

main44307-22010iLS110,MS11#197909-198307

NO MARK,L=39.942-39.937

main44307-22020iLS110,MS11#197909-198307

NO MARK,L=39.937-39.932

44345ASPRING, COMPRESSION(FOR VANE PUMP SLIPPER)

main90501-06445iLS110,MS11#197909-198307

44346PLATE, SNAP RING LOCK

main44346-30020iLS110,MS11#197909-198111

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-30090iMS11#197909-198307

main44360-30030iLS110197909-198209

sub44360-30050

main44360-30050iLS110198209-198307

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96710-01013iMS11#197909-198111

sub96711-19013

main96711-19013iMS112198111-198307

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30020iLS110,MS11#197909-198307

9017012011

main90170-12011

9020112022

main90201-12022

9111150610

main91111-50610

9321913005

main93219-13005

9451100300

main94511-00300

9451100600

main94511-00600

9451101200

main94511-01200

9451201000

main94512-01000

38 parts on this diagram · 2 diagrams in section
